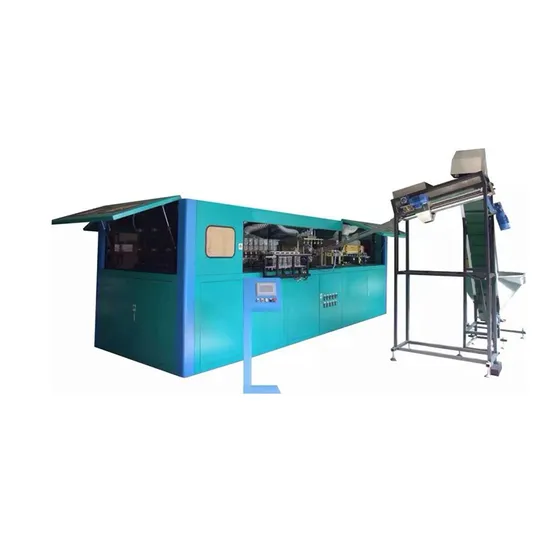

Good Price Full Automatic Pet Blowing Molding Machine

Product Description

Good price Full Automatic PET Blowing Molding Machine
1. using the double arm pneumatic / hydraulic opening and closing die, the bottom mold linkage structure, with high voltage compensation mode, to achieve high speed, high precision, high stability.
2. step servo motor and Germany cylinder tensile system, improve the speed of blowing.
3. automatic fast efficient embryo system, adopts the servo motor to star wheel embryo, save gas
4. energy efficient semi open type heating system, compared to peer energy saving of more than 30%
5. the United States Parker high pressure blowing valve, flow rate, fast response speed, improve the capacity of the unit, single cavity production capacity of up to 1500 bottles per hour; combined with high pressure gas recovery system, Recyclable 20%-40% high-pressure gas, saving energy and environmental protection.
6. standardized spare parts supply system to ensure the stability of equipment operation, reduce maintenance costs
7. man-machine interface, linear structure, simple operation, convenient, fast, high degree of automation.
8 fully automatic bottle system, can be connected with the conveyor belt (air duct), with filling system.
· Unique heating system, accurate temperature control and easy adjustment.
· Unique air storage unit.
· The cooling system achieves the desired cooling effect.
· Each action is driven by a cylinder instead of an oil pump, without contamination.

·The drying tunnel and the blowing platform are separated, which shortens the time for mold opening, increases the blowing speed and increases the output.
· Compact design saves space, reduces investment costs and increases competitiveness.
· Advanced PLC control system, light and simple control panel.
Product Description Application:
Suitable for producing PET plastic containers and bottles from 100-2000ml. It is widely used to produce the carbonated drink bottle, drinking water bottle, oil bottle, cosmetics bottle, wide-mouth bottle etc.
Features:
1) Food-grade stainless steel 304 for the parts in contact with product, meet the food industry standard.
2) PLC automatic control with world famous brands like Mitsubishi, Siemens, Omron, etc., good stability.
3) Easy machine operation by using the touch screen like Weinview or Siemens.
4) Standard machine parts, easy to do maintenance work, greatly reduce the maintenance costs and improve work efficiency.
5) Adopting rigid construction sealing, which is not easy to damage and with good leakproofness.
6) Emergency stop and other safety features provide unparallel operator safety.
7) All parts and service plans available.
Machine specifications are as below:

Bottle specification	Max volume of bottle	2000(ml)
	Product material	PET
	Body diameter	Φ68(mm)
	Height	<240(mm)
	Mouth diameter	Φ18 ~ Φ38(mm)
	Max height of preform	≤115(mm)
Main machine power	Power supply	220V/380V
	Rated power	75(kw)
	Real power	30(kw)
Size	L*W*H	4800×2120×2300(mm)
	Weight	5500(kg)
Production capacity	Depend on bottle design	6000b/h(500ml)

Machine components:

System Name	Part Name	Origin	Remark
Pneumatic part	Valve	USA	PARKER brand
	Cylinder	Germany	FEOSTO brand
Electric part	PLC	Japan	Mitsubishi brand
	Operating system	France	Schneider brand
	Relay	Japan	Omron brand
All of the electrical components adopts CE,UL,CCC approved international advanced high-tech product.
