Straw Crushing Machine Flail Mower 140-180HP

Product Description

SC centrally folding series are rear mounted,PTO driven flail mowers for tractors. 3 models in total,power demand 140-250HP.SCF series are heavy duty models designed for large area coverage, suitable for cutting crop residues such as cotton stalk,grain/maize/rape stubbles. The Central Folding Design is very convenient for transportation. More importantly, the working width is effectively enlarged.

The Central Folding Design is very convenient for transportation. More importantly, the working width is effectively enlarged to 460cm so that the daily productivity achieved is up to 46 hectares.
Advantages * High surface output,fast field changes and simple handling
* Folds hydraulically for fast field changes without getting off the tractor

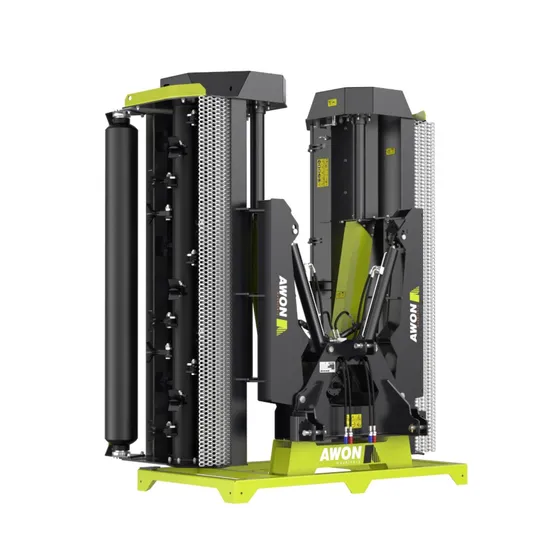

* Folds up for space-saving storage
Standard Equipment • Hydraulic cylinders
• Hydraulic safety breakaway device
• Cable control panel
• Temperature and oil level indicator
• Hydraulic lock
• Oil radiator with oil filters
• Hydraulic cylinders with choke valves
• PTO shaft

Model	Dimension(mm)	Weight(Kg)	Cutting Width(mm)	PTO Input Speed	Number of blades	Tractor Power
SC400	4420*1550*1260	2000	4000	1000	48	140-180
SC460	5200*1550*1260	2183	4600	1000	52	140-180
SC600	6370*1550*1260	3050	6000	1000	64	210-250

AWON GROUP founded in 2006 which headquarter in the Netherlands is an integrated solution provider for modern Agricultural, Orchard and Gardening applications. With much effort of these years, AWON machinery gradually grows up to a pioneer in modern agriculture from designing to manufacturing a wide range of agricultural implements which used in commercial crops and field crops, including: Mower, mulcher, wood shredder, cotton baler, straw baler etc. With AWON GROUP's excellent design concepts and reliable product performance to help users improve operating efficiency, reduce usage costs, and increase profits, thereby protecting the ecological environment and achieving sustainable development of agriculture and nature.
The following are our patent certificates: Design Patent (mulcher), Utility Patent (branch mulcher, mulcher blades, pick-up branch mulcher and telescopic mower)
The following are our original hand-painted drawings, originality has always been our pursuit!
