Vacuum Mixer Homogenizer Paste Mixing Tank, Body Lotion and Cream Making Machines
| US$980.00-48,750.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
HMD
Application
Granules, Liquid, Liquid with Suspended Solids, Powder, Viscous Fluid
Application Area
Agricultural Chemicals, Chemical, Daily Chemical, Engineering & Construction, Food, Metallurgy&Mineral, Pharmaceutical
Certification
CCC, CE, ISO
Condition
New
Control System
Button Control
Cooling Method
Water Cooling
Heating Method
Steam, Electric Heating etc
Main Material
Stainless Steel
Mixing Capacity
1000L & Above
Mixing Drum Shape
Conical
Speed Control
Variable Speed
Speed Range
60 R/min & Above
Stirring Type
Spiral
Temperature Control
With Cooling System
Working
High Speed Mixer
Mixing Tank
Blade and Homogenizer
Vacuum
-0.085MPa
Power
220V 380V Single or Three Phase
Material
SUS316L
Transport Package
Woodencase
Specification
from 10L to 10 ton
Trademark
Huixin
Origin
China
Production Capacity
10000set/Y
Product Description
Skin Cosmetics Lotion Making Machine Mixer Shampoo Vacuum Homogenizing Emulisfying Mixer Essential Oil Lotion Mixing Machine Tank Shampoo making machine Stainless Steel Liquid Mixing Tank Vacuum Homogenizer ReactorProduct Description
Product Parameters

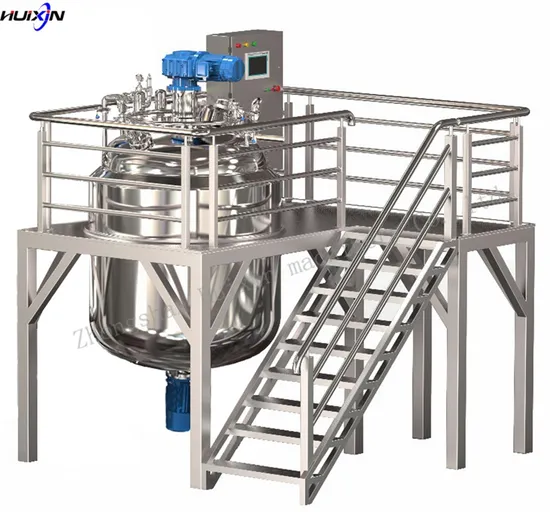

| Vacuum Emulsifier Mixer consists of main emulsifier mixer pot, control box and 2 pcs preheating tanks for oil and water to improve production efficiency. Advantage of vacuum emulsifier mixer: When the materials are under the vacuum condition, it makes use of the high shear emulsifier to distribute one or several phases to another continous phase rapidly and evenly. The materials will be processed in the narrow space between stator and rotor by strong energy of motion produced by the mechanical effect. By the operation of hydraulic shearing, centrifugual extruding, impacting, breaking and turbulence for over 100 thousand times per minute, the materials will be dispersed and emulsified instantly and evenly. After reciprocating circulation at high frequency, the fine finished products of stable and high quality products without bubbles will be achieved |
| Feature: |
| Electric heating and mixing chemical tank / shampoo/skincare cream mixer homogenizer vessel manufacturer plant by our company which combined overseas superior emulsifier experience with domestic cosmetic enterprise feedback. This machine adopts imported stainless steel, scientific homogenizing system, reasonable scraper blending to ensure equivalent homogenizing and make product more smooth, even and bright. Heating Mode: Steam heating or electric heating (optional) |
| Model | Effective | Emulsifying Motor | Agitator | Vacuum pump | Electric Heating power/kw | Steam heating pressure /Mpa | |||
| Capacity/L | |||||||||
| KW | RPM | KW | RPM | KW | Limit Vacuum | ||||
| SYB-5L | 5 | 0.55 | 0-3600 | 0.4 | 0-65 | 0.37 | -0.095 | 6 | 0.2 |
| SYB-10L | 10 | 1.1 | 0-3600 | 0.55 | 0-65 | 0.37 | 6 | 0.2 | |
| SYB-20L | 20 | 1.5 | 0-3600 | 0.55 | 0-65 | 0.37 | 9 | 0.2 | |
| SYB-50L | 50 | 3 | 0-3600 | 0.75 | 0-65 | 0.75 | 12 | 0.2 | |
| SYB-100L | 100 | 4 | 0-3600 | 1.5 | 0-65 | 1.5 | 24 | 0.2 | |
| SYB-200L | 200 | 5.5 | 0-3600 | 1.5 | 0-65 | 2.2 | 28 | 0.2 | |
| SYE-300L | 300 | 7.5 | 0-3600 | 3 | 0-65 | 2.2 | 32 | 0.2 | |
| SYE-500L | 500 | 11 | 0-3600 | 4 | 0-65 | 4 | 50 | 0.2 | |
| SYE-1000L | 1000 | 15 | 0-3600 | 5.5 | 0-65 | 4 | 54 | 0.2 | |
| SYE-2000L | 2000 | 18.5 | 0-3600 | 7.5 | 0-65 | 5.5 | recommend steam heating | 0.2 | |
| SYE-5000L | 5000 | 22.5 | 0-3600 | 15 | 0-65 | 7.5 | 0.2 | ||
| The parameters for reference ONLY, all the machines can be customized accordingly. | |||||||||
Installation Instructions
Certifications
Factory show, Weclome to visit
