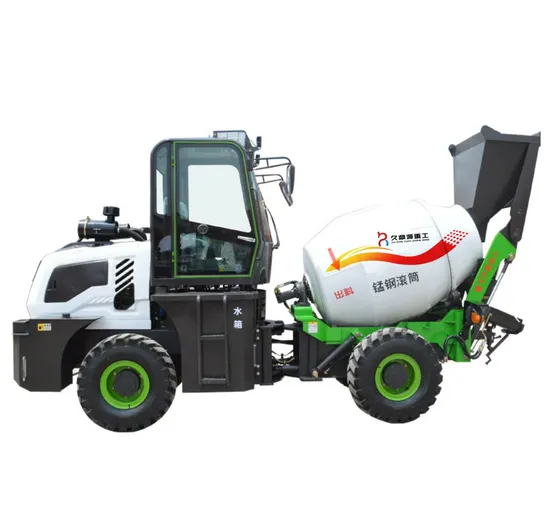

1 Cubic Meter Tilting Drum Concrete Mixer Mobile Automatic Loading Concrete Mixer Pump Machinery for Sale Jdy-10
Basic Info.
Model NO.
JDY-10
Machining Process
Hydraulic
Structure
Cylinder Type
Productivity
25m²/h
Condition
New
Color
White
Trademark
shanding
Origin
China
HS Code
8705400000
Production Capacity
4000set/Year
Product Description
1 cubic meter tilting drum concrete mixer Mobile automatic loading concrete mixer pump machinery for sale JDY-10| Product parameters | ||
| Specificatons | Unit | Parameter |
| Equipment model | JDY-10 | |
| Actual stirring capacity | m3 | 1.2 |
| Rotary drum capacity | m3 | 1.4 |
| Degree of bias | ° | 16 |
| Rotational speed | r/min | 0-14 |
| Direction of rotation | Feed:clockwise putput:counter clockwixe | |
| Mixing drum blade | Two sets of spiral blades and four sets of auxiliary blades | |
| Slump of concrete | mm | 70-260 |
| Hydraulic Power Transmission System | ||
| Pump model | CBGV-4025 | |
| Hydraulic motor model | BMSS-250 | |
| Reducer ratio | 1:10 | |
| Water supply | ||
| Tank capacity/water supply form | L | 540/automatic timing water supply mechanism with automatic timing |
| The main performance paprameters of the chassis and the main performance parameters of the engine | ||
| Engine type/displacement | L | CF4B68G-Z-13B2/CF4C100T-Z-13B2 |
| Model | Straight injection type four stroke water cooled supercharged diesel engine | |
| Rated power | kw/r/min | 55KW/2400 78KW/2400 |
| Max torque | N.m/r/min | 255/1500-1800 380/1500-1800 |
| Max running speed | km/h | 24 |
| Min steering radius | mm | 5000 |
| Climbing capacity | % | 26 |
| Tire | 23.5/70-16 | |
| Driving way | 4×4 | |
| Weight | kg | 4580 |
| Maximum load capacity | kg | 2800 |
| Whole machinery weight | kg | 7380 |
| Overall size(L*W*H) | mm | 6100*1850*3000 |
