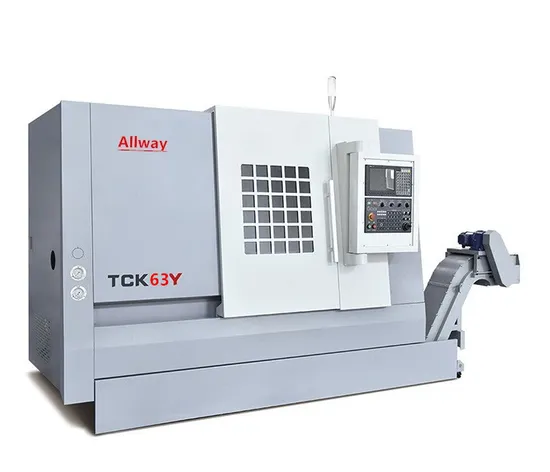

2000mm Length CNC Lathe Turning Center Machine

Product Description

Product features:
1.HT300 one-piece cast bed has high tensile resistance and shock resistance.
2. 45-degree tilt angle design makes chip removal more convenient and eliminates the trouble of chip entanglement and damage to parts.
3. This lathe uses a large turret with 12 stations and 125mm center height. The turret span is larger, and the 12mm cutting performance of a single tool is not inferior to that of a hard rail machine tool.
4. This machine tool is equipped with an A2-8 large spindle unit, and through holes can be made 80 is more than 70 for bar stock, which is convenient for doing some long-axis work.
5. The machine tool is equipped with a 15KW low-speed high-torque motor, the torque can reach 215NM, and a reducer can be installed later, so you no longer have to worry about damaging the tool if it cannot dry the workpiece.
6. This machine tool can process shafts and disk parts, turn threads, arcs, cones and internal and external curved surfaces of rotating bodies, and perform efficient, large-volume and high-precision processing of rotating parts. The Z-direction stroke is 2050mm, and the maximum cutting length can reach 2000mm. In the design, the rigidity of the spindle, bed, tailstock and other components is reasonably matched, which greatly improves the rigidity of the entire machine and ensures stability during heavy cutting. Therefore, the outer circle processing accuracy of this machine tool can reach IT7 level. As a general-purpose machine tool, it is especially suitable for efficient, large-volume, and high-precision processing of rotating parts in industries such as locomotives and aerospace. " Product Parameters

Project		Units	Specifications	Remarks
Maximum turning diameter on bed		mm	720
Maximum cutting length		mm	2000
Maximum cutting diameter		mm	500	12 stations (cutter head opposite side diameter 450, cutter tower center height 125)
Standard cutting diameter		mm	380
Maximum turning diameter on a skateboard		mm	420
Spindle end type and code			A2-8(optional A2-11)	Spindle unit
Main shaft hole diameter		mm	80
Maximum pass bar diameter		mm	70
Single spindle headstock	Spindle speed range / Maximum spindle output torque	r/min/Nm	50 ~ 3500/215
Main motor Output power	30 minutes/continuo us	kW	18.5/15
Standard chuck	Chuck diameter	inch	10(optional 12)""
X axis fast shift speed		m/min	12
Z-axis fast shift speed		m/min	16
X-axis stroke		mm	250
Z-axis stroke		mm	2050
Standard knife holder form			Horizontal 12 station servo
Tailstock travel		mm	1950

Detailed Photos

CNC CONTROL SYSTEMStandard:GSK 980TA
Optional: Siemens , FANUC, Syntec and Mitsubishi ect.

HYDRLIC CHUCK Standard: A2-8 spindle with8 inch hollow hydraulic chuck 2.Optional:A2-11 spindle with 12 inch hollow hydraulic chuck

LINEAR RAIL AND SCREW1.Taiwan HIWIN linear rails
2. Nanjing or Taiwan brand screw with high precision and high speed
3.Screw bearing using SKF bearing.

HYDRAULIC TAILSTOCKStandard with hydraulic tailstock
Optional :servo control tailstock

SERVO TURRETStandard with SINO 8 position servo turret

SPINDLE UNITSStandard with spindle speed stepless 3500rpm
