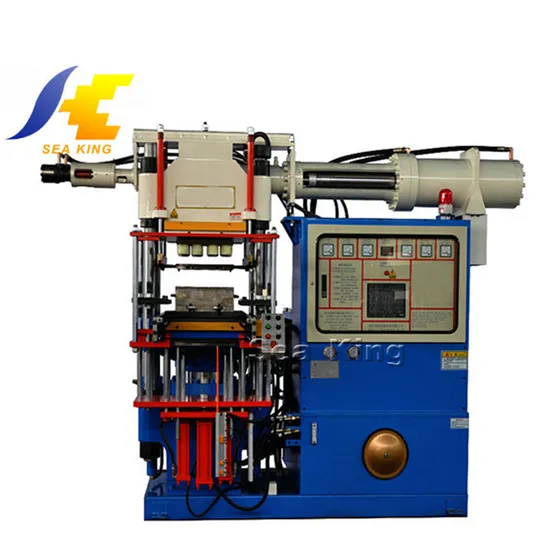

Rubber Injection Moulding Machine for Various Rubber Products

Product Description

Product Parameters Rubber vulcanizing press applies to all kinds of rubber (natural rubber, EPDM rubber, NBR rubber, synthetic rubber, silicone rubber ext. ) plate vulcanizing and compression molding.
This machine can be used to make O ring, sealing parts, oil seal, auto parts, rubber crash pad, rubber air spring, key board, medical rubber parts, rubber bottle stopper, silicone wrist band, water-stop tape, bridge support/bridge bearings, rubber cable, electronics insulators etc.

Type/Clamping force(ton)	100Ton	200Ton	300Ton	400Ton	500Ton	600Ton	800Ton
Max. stroke(mm)	380	480	550	550	600	600	700
Heating plate size(mm)	400x400	494x508	575x600	700x700	800x800	900x900	1100x1100
Injection volume(cc)	900	1500	3000	4000	5000	8000	10000
Max.Injection pressure(kgs/cm2)	2000	2000	2000	1800	1810	1870	1890
Max.Injection rate(CC/s)	45	50	70	97	111	148	186
Horse power(hp)	15	15	20	25	30	40	50
Type of mold opening	Up/Down-In/Out-2RT/3RT/4RT
Total power(kw)	21	27	33	43	52	68	91

Product Description
Features:
Company Information:
Qingdao Sea King Machinery Co., Ltd. is located in the west coast of Qingdao,is one of the most famous rubber machinery manufacturers.We have been specializing in rubber machinery for more than 30 years.
The company has passed ISO9001:2008 certification,CE certification,SGS certification,france BV certification.
The main product of our company: Internal mixer, Two roll Mixing mill ,extruding equipments,calendar equipments,Cutting machine,cooling equipment,Vulcanizing equipment,and Reclaimed rubber production line,rubber sheet extrusion line,Motorcycle&bicycle Tube &Tires production line,Conveyor Belt production line, v belt production line,rubber recap equipment and so on. Besides, we also can base on clients' requirement to manufacture and design non-standard rubber machinery.
With the rapid development of our company, Qingdao Sea King industrial Limited was founded. The company has established good commercial relationship with many companies in China by joint venture holding. Products include Rubber Machine ,Raw Rubber Material Rubber Products and so on.
Our company has import-export rights. The products have been exported to many countries and districts around the world, such as America, France, Canada, Dubai,Australia,Peru,Brazil,Ecuador ,SouthAmerican,Southeast Asia, and the Middle East. By the advanced quality and service, our products have gained the praise of domestic and foreign customers.
We strictly follow the policy"to satisfy our clients' need with quality work ,advanced technology,optimized design solution and excellent service".
