Static Pressing Hydraulic Pressure Hydraform Brick Making Block Machine Qp900

Product Description

Product Description

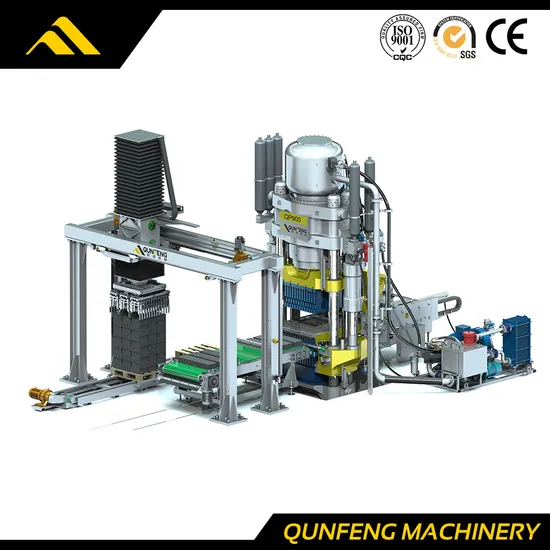

QP900 Automatic Static Pressing Machine for Making Solid-Waste Brick
This model adopts the board-free fully automatic press forming, no pollution and low noise.The constant power variable pump is adopted to provide the power source for the system and the pump output energy is automatically adjusted according to the actual working conditions. Moreover, a more optimized hydraulic control system is equipped to make the whole machine more energy-saving and efficient.
Main Technical Features:
1.Hydraulic forming, save energy and improve efficiency:
This model adopts the board-free fully automatic press forming, no pollution and low noise.The constant power variable pump is adopted to provide the power source for the system and the pump output energy is automatically adjusted according to the actual working conditions. Moreover, a more optimized hydraulic control system is equipped to make the whole machine more energy-saving and efficient.
2.Bidirectional press and high yield:
The block forming is realized by the bidirectional press with the main cylinder presses first and the demoulding cyclinder presses subsequently, which can ensure the high density and high quality of blocks.
3.Rotary cuber:
The clamping componets of the cuber can realize the overall rotation, so the blocks can be stacked layer by layer crossly with 90 degree to enhance the stability of the cuber.
4.Advanced and reliable control system:
It adopts servo proportional valve, linear displacement sensor , closed loop control technology of servo motor and optimized electronic control system to achieve strong anti-interference ability, fast response and precise control of pressure and position.
5.Wide adaptability:
With a variety of optional batching methods and large-stroke demoulding cylinder, this model can produce blocks of different specifications with various raw material.
Technical data

Max.Pressure	9000 KN
Max. Demoulding Force	2000 KN
Max. Height Of Mould Frame	350 mm
Pressurization Times	2-3 c/m
Max. Pressure Of Main Cylinder	32 MPa
Cycle Time	15-17s
Power	102.1 Kw
The Space Of Left&Right Column	1300 mm
The Width Of Working Table	950 mm
Max. Work Distance Of Main Cylinder	590 mm
Compressed Air Consumption	4.5 m3/h 6bar
Cooling Water Consumption	40 m3/h 30 3bar
Hydraulic Oil Capacity	1100 L
Total Weight	40 T
Production Capacity	Solid Brick (240×53×115mm) 39 Pcs.
	Perforated Brick (240×115×90mm) 18 Pcs.
	Hollow Block(390×190×190mm) 8 Pcs.
