Haichen Hck180 Ton Plastic Strap Buckles Making Machine Injection Molding Machine Contoured Side Release Buckles
Basic Info.
Model NO.
HCK180
Type
Tube Head Injection
Structure
Horizontal
Plastic Type
Thermoplastic
Plasticizing Way
Screw Type
Clamping Way
Hydraulic
Automation
Automatic
Computerized
Computerized
Certification
CE
Injection Rate (G/S)
159 G/S
Weight (Kg)
6000kg
Ejector Force(kN)
50kN
Voltage
380V/220/415V
Ejector Stroke(mm)
130 mm
Mould
Hot/Cold Runner
Injection Weight (G)
326 G
Injection Weight
257-402g
Motor
Servo Motor
Machine Type
Hydraulic
MOQ
1set
Machinery Test Report
Provided
Open Stroke(mm)
460mm
Power (Kw)
10kw
Automatic
Yes
Transport Package
Wooden
Specification
HCK180
Trademark
Haichen
Origin
China
HS Code
8477101090
Product Description
Haichen HCK180 ton Plastic Strap Buckles making machine injection molding machine Contoured Side Release BucklesProduct description

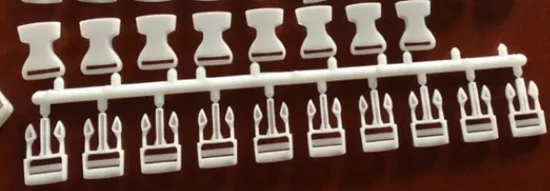

Product name: plastic buckles
Color: white/black or any others
Material: HDPE/PP
Size: above photo is for reference, customized is acceptable
Injection Moding Machine: 170ton plastic injection molding machine
Motor: servo motor
Cavity: 16cav products photos
Cavity: 32cav products photos
plastic buckles injection molding machine technical data:
| INTERNATIONAL CLASS NO | HCK180 | |||
| A | B | C | ||
| INJECTION UNIT | ||||
| Screw Diameter | mm | 42 | 45 | 50 |
| Screw L/D Ratio | L/D | 22.5 | 20 | 18 |
| Shot Size(Theoretical) | cm³ | 283 | 358 | 442 |
| Injection Weight(PS) | g | 257 | 326 | 402 |
| Injection Rate | g/s | 126 | 159 | 196 |
| Injection Pressure | Bar | 2231 | 1763 | 1428 |
| Screw Speed | rmp | 190 | ||
| CLAMPING UNIT | ||||
| Clamp Tonnage | kN | 1800 | ||
| Opening Stroke | mm | 460 | ||
| Space Between Tie Bars | mm | 520*470 | ||
| Max.Mold Height | mm | 520 | ||
| Min.Mold Height | mm | 200 | ||
| Ejector Stroke | mm | 130 | ||
| Ejectior Tonnage | kN | 50 | ||
| OTHER | ||||
| System Pressure | Bar | 175 | ||
| Pimp Motor Power | kw | 20 | ||
| Heater Power | kw | 10 | ||
| Numbers of heating Segment | 3+1 | |||
| Machine Dimension(LxWxH) | m | 5.1*1.3*2.1 | ||
| Oiltank cubage | L | 200 | ||
| Machine Weight | t | 6 | ||
Ningbo Haichen Servo Information Technology Co.,Ltd. is located in beilun industrial zone, Ningbo. The global manufacturing center of plastic injection moulding machinery city, which is east to Ningbo port. It is in superior location with convenient traffic by sea.
We adopt advanced international technologies and specialize in manufacturing high-grade plastic injection molding machine. And own a number of professional R&D personnel and cooperate with a group of high-tech enterprises.
It mainly produces high precision injection molding machine with CE certificated and the clamping force from 90ton to 3000ton.
We can send solution as per customer's different capacity request.
For more information , Please feel free to contact us!
Introduction of HAICHEN servo injection molding machine
| INJECTION SYSTEM | |
| FEATURE: • APID temperature control, precise temperature control of barrel. • There are three or four screws and barrels with optimal design, respectively, nitride, hard plating, dual- metal, which is suitable for different processes of variety of plastics. And the choice of product. • Two -guided guided bar supports, double-balanced rapid injection. • The high-torque hydraulic motors offer a stable plasticizing capacity, high-precision electronic device position detection enable accurate measurement. | |
| • Multi-injection speed and pressure and multi-level holding pressure settings, switch from the injection time, location, pressure control to ensure the quality of molding. • Multi-level back-pressure of pre-plastic and pre-speed are computer-controlled, anti-drooling and automated auto purge. • Expected to prevent cold-start function to ensure that the screw, barrel will not be harmed. Stability of the injection unit. | |
| CLAMPING SYSTEM | |
| FEATURE: • Security doors fitted with hydraulic, mechanical and electrical interlocking triple safety device. When the safety door is open, the machine cannot clamp. • Low pressure mold protection device to prevent damage to platen. • Plywood, frame, the bridge, and the template attached structure, the finite element analysis. • Hydraulic ejector, adjustable stroke, and top speed of ejector in and out, for multiple actions. • Flexible tie bars but eliminates fatigue fracture; assure the working life of tie bars. | |
| • Automatic adjustment. The replacement of different mold, the parameters set by clamping force to achieve the automatic adjustment. • High-precision electronic detection device, multi-stage control of opening stoke, speed and location, location accuracy. • Arch splint piece of the tail plate use the finite element analysis. It features as light weight, high-intensity, and high- rigidity. • Flexible core programming control, and independent hydraulic pump station to provide power. | |
