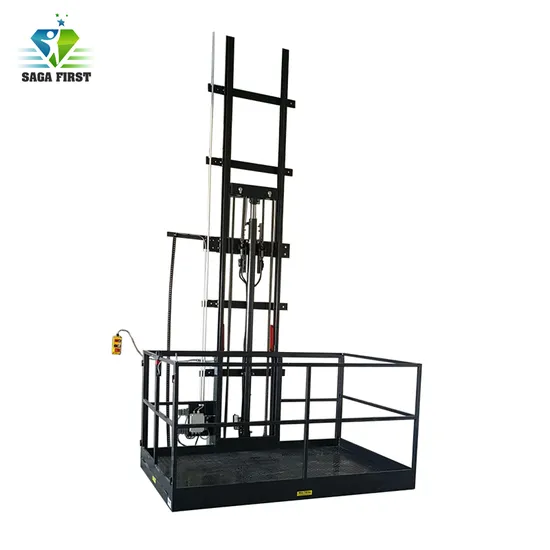

Workshop Used Single Guard Cargo Goods Elevator Lift

Product Description

Vertical Lifting Elevator Hydraulic Cargo Lift for Warehouse
- OEM & ODM Service -

SAGAFIRST Brand cargo lift is one of the most popular cargo lift among our customers. It belongs to materials handle equipment, which is equipped with electrical control system. It is driven by hydraulic pump station. Such kind of cargo lift is suitable for both light goods and heavy materials
1. Equipped with four guide rails to keep platform very stable and safe.
2. Emergent stop button can cut off power in emergency situation.
3. Pit height will be 15 to 30cm.
4. Flexible production technic: load capacity, platform height and platform size all as per customer's requirements.
5. Imported controlling system is optional(Schneider, Siemens, ect.)
6. Multilayer control panels and Multilayer interlock are available.
7. Outside protecting net is optional if needed.
Safety Precautions:
1.Spillover valve, it can prevent high pressure when the machine moves up.
2.Manual emergency valve, it can go down to the nearest floor and open the door when you meet an emergency.
3.Pipe explosion valve, when the hydraulic system pipe fractures, it can cut down the channel of the oil to stop it falling.
4.Temperature protection, when the temperature of the hydraulic oil exceed standard, the machine will stop working until the temperature gets back to standard.

Specification	Vertical travel (mm)	Lowered Height (mm)	Capacity(KG)	Platform size (L*W, mm)	Power (Kw)
VCL0.3-4.5 (2 layers)	4500	150	300	1000×800	1.5
VCL 0.5-4.5 (2 layers)	4500	150	500	1500×1000	1.5
VCL 1.0-4.5 (2 layers)	4500	150	1000	1500×1500	2.2
VCL 2.0-4.5 (2 layers)	4500	150	2000	2000×1000	2.2
VCL 3.0-4.5 (2 layers)	4500	160	3000	2000×1200	3
VCL 0.3-7.5 (3 layers)	7500	150	300	1000×1000	1.5
VCL 0.5-7.5 (3 layers)	7500	150	500	1200×1200	1.5
VCL 1.0-7.5 (3 layers)	7500	150	1000	1800×1400	2.2
VCL 2.0-7.5 (3 layers)	7500	150	2000	2000×1500	2.2
VCL 3.0-7.5 (3 layers)	7500	160	3000	2000×1600	3
VCL 1.0-10.5(4layers)	10500	150	1000	1800×1400	2.2
VCL 1.0-14 (5 layers)	14000	150	1000	1800×1500	2.2
VCL 3.0-4.5 (Special for lifting cars)	4500	160	3000	5000×3000	4

Features and Advantages:
1. Strong Steel Design.Self-standing and self-support structure.
2. Chrome plated posts with piston are anti-rust. The driving platform is made of anti-slip diamond plate.
3. Loading test: 120% dynamic load test and 175% static load test
4. Voltage:As per customer local standard
5. High performed powerful hydraulic cylinder driving system,durable steel rope and anti-friction carriage guides guarantee the smooth operation and safety.
6. Mechanical steel ropes detection will stop platform at immediately in case steel rope is loosen or cut off
7. Both Sides of Lateral guard wings will protect cars swing out.
8. Automatic shut-off if operator releases the key switch.
9. LOCK DOWN button makes platform stop on locking tabs to guarantee safety and prolong the lifetime of the cylinder.
10. Platform can be stopped at any heights to cater to various cars and roof height.
11. DC24V reliable actuators for lifting. efficient and precise.
12. Attractive price, double parking space.
13. Sagafirst parking lift are dealt with shot blasting and stoving varnish, high anti-corrosion function.
14. High quality pump station make the parking lifts and falls very stably.
15. Heavy duty cylinders with drainage system and check valve to stop the parking lift lowering in the case of hose burst.
16. Pressure relief valve prevent overload operation; Flow control valve make descent speed adjustable.
17. Brief structure make it much easier to operate and maintain.
18. Up to American standard ANSI/ASME and Europe standard EN1570.
Certificate: CE,ROHS,ISO,SGS ETC.
Dealers and Wholesalers are especially welcomed and we will give special discounts.Vacuum Lifter Robot will be packed in strong wooden carton and shipped by sea.Welcome to visit us and negotiate business.We will pick up you and arrange the accommodation hospitally.
Our Service:
1.We can design the customerized the lifter as per your requirement.
2.The most suitable model will be recommended to you once we know about your requirement.
3.Shipment can be arranged from our port to your destination port or home.
4.Opetion video can be sent to you if needed.
5.Maintenance and user manual.
6.Parts of the lifting equipment can be sent to you by express within 7 days if needed.
Frequently Asked Questions:
1.How can customer buy parts once it break down?
The lift adopts most of the common parts of hardware.You can buy the parts in your local hardware market or forklift parts shop.
2.How can customer repair if any problem?
One of the great advantage of the equipment is with very very low failure rate.Even it breaks down,we can guide to repair it by video and repair instruction.
3.How long is the quality guarantee?
ONE year quality guarantee.send the parts free of charge

Frequent Asked Questions	Answers
Are you a factory or trading company?	We're factory with over 12years exporting experience.
What's the MOQ?	1UNIT,the more,the better.
What's the payment terms?	<USD4999: 100%TT in advance. >USD5000: 30%TT in advance,balance before shipment. >USD10,000: TT or Irrevocable L/C At Sight.
Do you offer OEM&ODM service?	Yes,like lifting capacity, lifting height, size of platform,painting color,logo,manual etc.
What's the delivery time?	15~20days after down payment
What's the quality warranty?	24 months.Offer free parts for replacement.
How can I get the after-sales service?	We offer videos,pictures and technical guidance immediately.
What's your QA&QC policy?	3times 100% inspection before shipping.
Can you tell me your clients in my country?	Of course. But only after the permittance of customers.

Feel free to contact us anytime. Our professional salesmen are 24hours online.
