Product Description

Overview

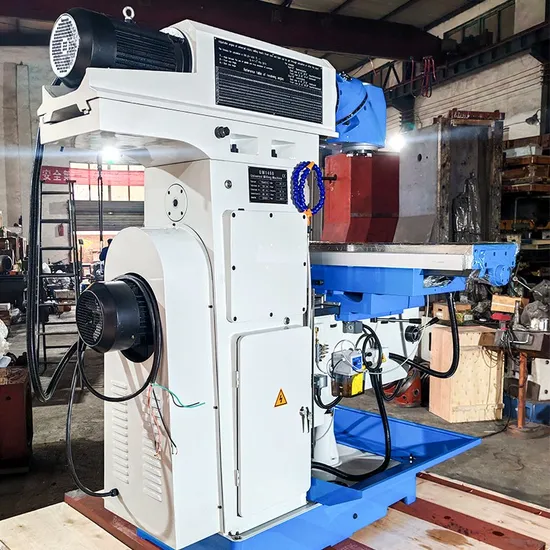

UM1460 Universal Swivel Head Milling Machine

UM1460 swivel head milling machine has two transmission mechanisms: vertical spindle and horizontal spindle. The vertical spindle can be used for both vertical and horizontal milling, and can mill planes, bevels, etc. With the corresponding machine tool mechanism, it can also process spiral grooves, grooves, etc. The two-section swivel milling head can rotate and adjust the spindle at any angle, and can complete the processing of complex parts such as multi-angles and multi-faceted parts in one clamping. The horizontal spindle taper hole can be directly or through accessories to install various cylindrical milling cutters, disc milling cutters, forming milling cutters, face milling cutters and other tools, which is suitable for processing various medium and small parts of planes, bevels, grooves, holes, gears, etc.
Product features:
1.The worktable has concentrated feeding of gears in three directions, X,Y-axis fast moving speed is 800mm/min
The worktable can rotate ±45°
2. It can realize vertical and horizontal milling and various processing functions.
3. It has functions and is more convenient to operate.
4.The horizontal axis adopts energy-consuming braking, and the braking torque is large.
Matters Needing Attention:
1,Loading and unloading parts, must remove the tool, cutting head, hand must not be close to the milling surface.
2,When using the milling machine to the knife, it must be slow or hand into, no fast forward, no stopping when walking the knife.
3,Fast advance and retreat knife pay attention to whether the milling machine handle will hit people.
4,Feed not too fast, no sudden change, milling machine limit block should be adjusted.
5,Up and down and measuring the workpiece, adjusting the tool, fastening the speed, must stop the milling machine.
6,Disassemble the end mill, the working table should be covered with wood, disassemble the milling cutter nut, the force should not be too strong.
7,Do not touch or use cotton yarn to wipe the rotating parts and tools, do not use the hand to support the cutter.
Product Parameters

(UM1460Technical Parameters)
Item	Details
Spindle taper	7:24 IS0 50(Horizontal/Vertical)
Distance spindle to column surface	1700X400 mm
Worktable swivel angle	±45°
Number	4
T-slots of table width	18mm
Distance	100mm
Spindle speeds range	12steps 50-1520r.p.m(Vertical)12steps 60-1850r.p.m(Horizontal)
Longitudinal	1300 mm
Table travel Cross	420 mm
Vertical	600 mm
X.Y. axes feeding	25-800 mm/min Rapid feeding 800 mm/min
Z axes feeding	8-267 mm/min Rapid feeding 267 mm/min
main horizontal spindle	0-440 mm
milling head horizontal(low position)	150-590 mm
milling head horizontal(side position)	340-780 mm
milling head horizontal(hish position)	530-970 mm
Distance from spindle nose to worktable	50-650 mm(Vertical)
Distance from Vertical spindle cente, to guideway surface	0-1000 mm(Vertical maillingspindle head)
horizontal swivel angle of milling head	360°
Vertical swivel angle of milling head	360°
Main motor	Vertical Milling 7.5KW(V) Horizontal Milling 5.5KW(H)
Feeding motor	2.36 KW 15N.M
Coolant pump motor	9OW
Coolant pump flux	25Litres/minute
Overall dimensions	2300X2300X2270 mm
G.W	about 3600 kg
