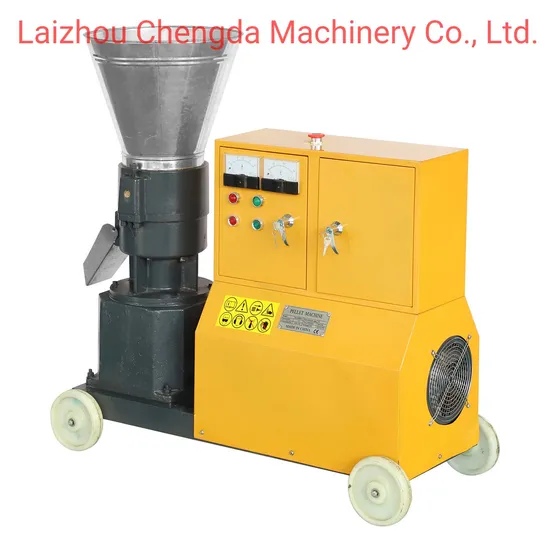

Family Use 200-300kg/H Cow Sheep Pellet Making Machine
| US$399.00-2,999.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
KL200C
Automatic Grade
Semiautomatic
Controlling Mode
Switch
Energy Saving
Energy Saving
Certification
CE, ISO
Warranty
1 Year
Customized
Customized
Condition
New
Color
Multi Color
Pellet Length
Adjustable
Pellet Diameter
2.5-10mm
Capacity
40-3000kg/H
Raw Materoal
Below 6mm Powder
Moisture
8%-15%
Transport Package
Plywood Box
Specification
medium
Trademark
chengda
Origin
China
HS Code
8479300000
Production Capacity
5000pieces/Year
Product Description
Feed Pellet Machine/feed mill/feed machinery /feed pelletizer/ Feed Pellet Making Machine
Specifications
Smallest pellet mill:
1.CE certificate
2. Model No.: KL120 series
3. Die size from 2.5mm to 10mm
Small pellet mill description:
1. Small pellet mill can make all kinds of bio-mass material to be solid pellets which is for burning fuel or animal feed.
2. You can use all of the sawdust as raw materials: Paddy straw, sunflower stalk, forestry wastes, wood chips, chemical and many other wastes or solid power material.
3. KL120 and KL150 are the smaller types.
4. All of our pellet mills have passed CE certificate, which all parts can meet EU standard.
Special instruction:
1. Version A pellet mill are driven by diesel engine or gasoline engine.
2. Version B pellet mill are dirven by E-motor, without extra cabinet and cover on the motor.
Technical parameters for KL120 and KL150:
| MODEL NO. | OUTPUT (kg/h) | POWER (HP or KW) | SIZE (cm) | NW/GW (kg) | Qty/20'FCL | Remak |
| KL120A | 90-120 | 7.5hp | 76*43*71 | 80/100 | 90 | gasoline engine |
| KL120A | 100-130 | 8hp | 87*44*73 | 120/140 | 90 | diesel engine |
| KL120B | 75-100 | 2.2kw/220V | 75*32*61 | 80/100 | 168 | CE motor |
| KL120B | 75-100 | 3kw/380V | 75*32*61 | 80/100 | 168 | CE motor |
| KL150A | 110-210 | 7.5hp | 76*43*71 | 95/115 | 84 | gasoline engine |
| KL150A | 120-220 | 8hp | 87*46*73 | 120/140 | 84 | diesel engine |
| KL150B | 150-200 | 4kw/380V | 75*35*65 | 95/115 | 126 | CE motor |
| KL200A | 250-350 | 15hp | 118*56*95 | 280/310 | 40 | diesel engine |
| KL200B | 200-300 | 7.5kw/380V | 100*43*95 | 200/230 | 60 | CE motor |
| KL200C | 200-300 | 7.5kw/380V | 100*46*90 | 200/230 | 60 | CE motor |
| KL230A | 350-500 | 22hp | 118*56*95 | 280/310 | 40 | diesel engine |
| KL230B | 350-450 | 11kw/380V | 114*47*97 | 290/320 | 45 | CE motor |
| KL230C | 350-450 | 11kw/380V | 114*54*93 | 290/320 | 45 | CE motor |
| KL260A | 300-500 | 30hp | 184*70*116 | 450/480 | 16 | diesel engine |
| KL260B | 400-600 | 15kw/380V | 120*52*107 | 330/360 | 40 | CE motor |
| KL260C | 400-600 | 15kw/380V | 122*53*107 | 330/360 | 40 | CE motor |
| KL300A | 600-850 | 55hp | 200*60*123 | 520/560 | 16 | diesel engine |
| KL300B | 700-800 | 22kw/380V | 127*52*107 | 410/450 | 30 | CE motor |
| KL300C | 700-800 | 22kw/380V | 128*58*105 | 410/450 | 30 | CE motor |
| KL360A | 700-950 | 55hp | 227*62*126 | 600/620 | 16 | diesel engine |
| KL360C | 700-950 | 22hp/380V | 134*58*106 | 470/500 | 30 | CE motor |
| KL400A | 800-1100 | 55hp | 227*62*126 | 750/780 | 16 | diesel engine |
| KL400C | 800-1100 | 30kw/380V | 145*62*115 | 630/660 | 25 | CE motor |
if you need more information feel free to contact with me in the following method
| Contact | Ruby |
| https://chengdamachine.en.made-in-china.com |
if you want to get more video, please check my Youtube work video
https://youtu.be/9lU-8EiHF7o
https://youtu.be/ggfP7NAcrjI
welcome to our factory !
