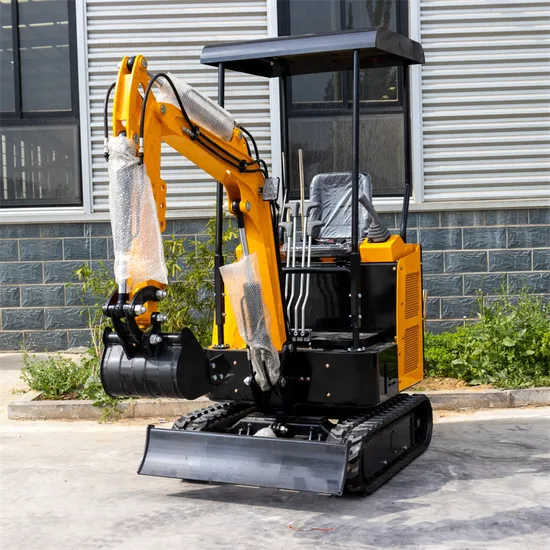

Agricultural Work Use Drilling Machine Ht15 1500kg Mini Excavator with Bucket
| US$2,500.00-6,100.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
HT15
Type
Crawler Excavator
Usage
Mini Excavator
Bucket
Backhoe
Transmission
Hydraulic Transmission
Drive Type
Electric Drive
Bucket Capacity
0.025cbm/120kg
Size
Small-Scale
Certification
CE, ISO9001: 2000
Condition
New
Transport Package
Wood
Specification
1500KG
Trademark
xingtan
Origin
China
HS Code
8429521200
Production Capacity
1500set/Year
Product Description
Description HT15 Series Mini Excavator is a compact and flexible machine that can operate in narrow spaces with excellent performance. It can be widely used in municipal engineering, garden construction and other fields. It is easy to operate and has low maintenance costs.
1) Simple structure and compact design ,easy in installation and maintation.2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.3) Give full consideration to reduce the working oil consumption, to obtain maximum efficiency in all kinds of work site operation.4) Auger, grab, hydraulic hammer, narrow bucket can be installed on this excavator, efficient and wide-range use.
5)can install with EPA engine , Euro 5 engine,Control Cabin.
Parameters
| Model Item | HT15-1 | HT15-2 | HT15-3 | HT15-4 | HT15-5 | |
| Vehicle Weight | 1500kg | 1500kg | 1500kg | 1500kg | 1500kg | |
| Standard bucket capacity | 0.04M3 | 0.04M3 | 0.04M3 | 0.04M3 | 0.04M3 | |
| Engine model | KOOP 192 | B&S 25T2 | KOOP 292/RATO | KUBOTA D722 | B&S 3864 | |
| Rated power/speed | 7KW | 10.2KW | 12KW | 12KW | 17.5KW | |
| System pressure | 9Mpa | 16Mpa | 16Mpa | 16Mpa | 16Mpa | |
| Rotary speed | 11RMP | 11RMP | 11RMP | 11RMP | 11RMP | |
| Maximum climbing angle | 35° | 35° | 35° | 35° | 35° | |
| Walking speed(high/low speed) | 3 5Km/h | 3 5Km/h | 3 5Km/h | 3 5Km/h | 3 5Km/h | |
| Fuel tank volume | 18L | 18L | 18L | 18L | 18L | |
| Wheel spacing | 800mm | 800mm | 800mm | 800mm | 800mm | |
| Total tracked | 1220mm | 1220mm | 1220mm | 1220mm | 1220mm | |
| Platform clearance | 375mm | 375mm | 375mm | 375mm | 375mm | |
| Chassis width | 980mm | 980mm | 980mm | 980mm | 980mm | |
| Track width | 180mm | 180mm | 180mm | 180mm | 180mm | |
| Maximum ground excavation radius | 2900mm | 2900mm | 2900mm | 2900mm | 2900mm | |
| Maximum excavation depth | 1850mm | 1850mm | 1850mm | 1850mm | 1850mm | |
| Maximum excavation height | 2450mm | 2450mm | 2450mm | 2450mm | 2450mm | |
| Maximum Unloading Height | 1850mm | 1850mm | 1850mm | 1850mm | 1850mm | |
| Maximum vertical digger depth | 1750mm | 1750mm | 1750mm | 1750mm | 1750mm | |
| Minimum radius of rotation | 1550mm | 1550mm | 1550mm | 1550mm | 1550mm | |
| Maximum lifting height of shovel | 150mm | 150mm | 150mm | 150mm | 150mm | |
| Maximum depth of excavation of a bulldozer | 180mm | 180mm | 180mm | 180mm | 180mm | |
| Maximum depth of excavation of a bulldozer | 180mm | 180mm | 180mm | 180mm | 180mm | |
