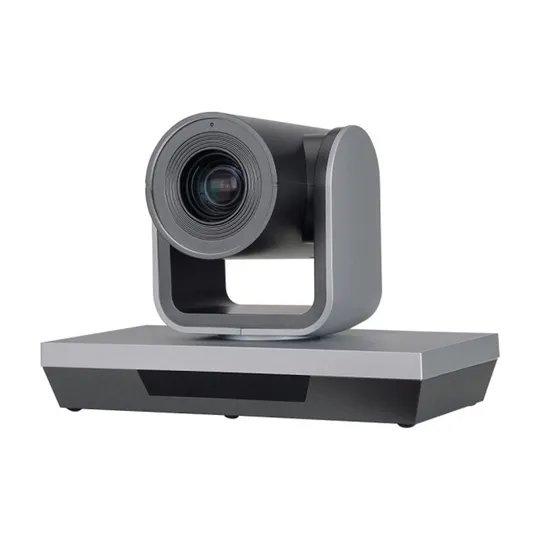

1080P Sony CMOS 310X Zoom USB 2.0 Yuy2 PTZ Visca IR Remote Controller Webcam Video Conference Camera

Product Description

Premium USB PTZ Camera equipped with 3x/10x Optical zoom block, uses a Single USB Cable for Power supply(12V charger optional), HD Video and PTZ movement Control transmission. 2.1Megapixel Effective CMOS Sensor achieved 1080p@30 high quality images. USB 2.0 ideally suited for Small or Medium size conference rooms, it connects to laptop for whom on business trip and compatible with any Web onferencing system in Windows and MAC OS.
Features
PRO PTZ Camera design
OSD Menu/Lens Menu
Speed Match
UVC Protocol 1.5
IR remote controller unit
USB 2.0 Connection
Specification sheet

Model		SV-H1P3MC	SV-H1PAMC
Image Sensor	Sensor	1/2.8" SONY CMOS
	Effective Pixel	2.1 Megapixel
	White Balance	Auto/Manual
	Backlight Compensation	Support
Lens	Focal Length	f=3.3-10mm	f=4.7-47mm
	Focus	Auto Focusing
	Iris	F1.7-F3.0	F1.6-F2.5
	Zoom	3x Optical	10x Optical
	HOV	84°	62°
Video Output Interface		USB 2.0 Type B
Power Supply		Single USB2.0 Cable Power supply or DC 12V Charger optional
Video Output Format		MJPEG:1080P@30/25fps, 720P@30/25fps, 800*600, 640*360 H264:1080P@30/25fps, 720P@30/25fps, 800*600, 640*360 YUY2: 720P@10fps,360P@30fps
Communication Protocol		VISCA, PELCO-D, UVC1.5
Macro Focus		Support, minimum distance 12cm	N/A
Baud Rate		2400bps/4800bps/9600bps/38400bps
Preset Position		64
Touring Line		4 cruise Sequence
OSD Menu		Support
Image Flip		Support Image Flip/Mirror
Pan Movement Speed		330° , 1-24°/s
Tilt Movement Speed		-30°~ +30°, 1-24°/s
Remote Controller		IR Wireless Remote Controller P/T/Z
Work Temperature		0-50ºC
Work Humidity		0-95%RH
Dimension		180mm*112mm*129mm
Weight		520g	550g

1080P Full HD
It adopts high-quality SONY CMOS image sensor, 2.1 million effective pixels, and the maximum resolution reaches 1920X1080Depending on the meeting venue, the 3x/10x movement can be selectedLow irritability
It has an ultra-high signal-to-noise ratio (≥50dB), providing high-definition image quality even in low-light environmentsHigh-precision gimbal
Supports 64 preset position settings with a positioning accuracy of up to +0.015° eachConnects to your favourite video conference app
Cloud service or audio system via USB. Simply plug the camera into your laptop, PC and Mac. No drivers needed.Compatible with Most Cloud Conferencing software
Compatible with various telecommunication platforms including WebEx, Lync, Skype for Business, BlueJeans, Zoom, and Jabber for easy integration into your existing videoconferencing infrastructure.Installation
Wall mount kits
Standard Tripod
L Type 5 meters USB Cable
