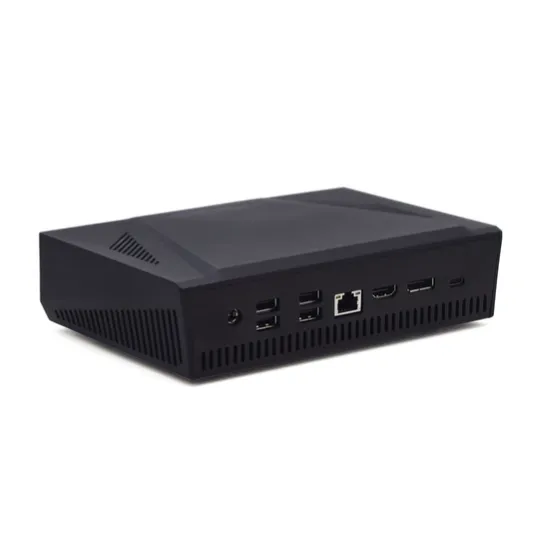

Hystou OEM DDR4 Corei9 9880h Computer 4K Display Embedded Desktop Mini PC

Product Description

VR Details Images HYSTOU M1 Mini Gaming PC Intel Core i9-9880H MAX 64GB Windows 11 Why choose HYSTOU Mini PC Gaming? ★ CPU: Intel Core i9- 9880H
★ Lan Port: 1*RJ45 Lan intel Ethernet Controller I225-V (2.5G)
★ Storage: 2*M.2 2280 M KEY PCIE3.0 Max 64GB
★ Silent Cooling Design: Efficient Heat Dissipation
★ System: Support Windows 10/11, Linux
★ Processor Base Frequency: 3.30 GHz
★ Max Turbo Frequency: 4.60 GHz
★ Video:Triple Display with 4K
★ Memory:Dual DDR4 Max 64GB
★ WIFI: Inside WIFI 5
★ Bluetooth: BT 4.2 Multiple Connections & Interfaces The Mini PC Gaming features Gigabit Ethernet LAN (RJ-45 port, supporting Gigabit file transfer speeds), WiFi 6 and Bluetooth 5.2, ensuring high-speed wireless connectivity that puts you ahead. It significantly expands the computer's functionality and enhances its performance. Additionally, it comes with 3*USB3.0 port, 4*USB 2.0 port, HDMI port, DP port, Type-C port, and DC Jack. Powerful Processor The Mini gaming PC is powered by a Intel Core I9 processor with 8 cores and 16 threads, boasting a base frequency of 3.30GHz that can turbo boost up to an impressive 4.60GHz with 16MB of Smart Cache, ensuring exceptional responsiveness and superior performance. Powerful Memory & Larger Storage The Mini desktop PC is equipped with DDR4 Dual Channels, featuring 2*SODIMM slots, each of which can be upgraded to a maximum of 32GB. DDR4 not only offers a 28% improvement in transmission frequency but also ensures swift operation with no lag or interruptions. Additionally, it offers 1*SATA and PCIe 3.0*4 slot (M.2 2280, NVME) that can be expanded to 1TB. Say goodbye to storage concerns, as you can seamlessly run software, enjoy and store extensive movies and photos without any hassle. Triple Dispaly 8K UHD The Mini gaming PC supports DP 8K @ 30Hz (7680x4320), HDMI 4K @ 30Hz (4096X2304), and Type-C 4K @ 30Hz (4096X2304) displays. Its 8K high-definition streaming capability delivers a breathtaking movie-watching experience. With the ability to connect up to triple screens, it enhances office productivity, enabling seamless multitasking and smooth operation of various software. This makes it perfect for tasks like C4D 3D rendering, stock trading, 8K video playback, and gaming all at the same time. Fan Cooling Design The Powerful Mini PC M1 R9-5900H is equipped with a good cooling system and a low-noise fan, which is widely opened with ventilation and smart fans, and directly rotates the heat from the system when needed. To make and cool performance. Product Usage Product Description

Processor
CPU	Intel® Core™ i9-9880H Processor (16M Cache, 8 Cores 16 Threads, Base Frequency 2.30 GHz Turbo Frequency 4.80 GHz) Intel® Core™ i5-10200H Processor (8M Cache, 4 Cores 8 Threads, Base Frequency 2.40 GHz Turbo Frequency 4.10 GHz) Intel® Core™ i7-10870H Processor (16M Cache, 8 Cores 16 Threads, Base Frequency 2.20 GHz Turbo Frequency 5.00 GHz)
TDP	45W
CPU Lithography	14 nm
Memory Specifications
Max Memory Size	64GB
Memory Types	2*DDR4 SO-DIMM 260 pin
Memory Speed	2666 MHz (9th CPU), 2933 MHz (10th CPU),3200MHz (11th CPU)
Memory Channels	Dual Channels
ECC Memory	Don't support
Storage Specification
m.2 SSD	2*M.2 2280 M KEY PCIE3.0
SATA	1*SATA3.0 SIot for 2.5 inch HDD/SSD
mSATA	NO mSATA slot
Graphics
Processor Graphics	Intel UHD Graphics 630, Intel UHD Graphics for 10th CPU
HDMI	1*HDMI 4096*2304@30Hz(4K)
DP	1*DP 4096*2304@60Hz(4K)
Type-C	1*Type-C 4096*2304@60Hz(4K)
Power Specification
Adapter Output	DC 19V/6.32A
Adapter Input	AC 100-240V, 50/60HZ
Consumption	85W
Auto Power On	Support Auto Power On Function
In & Out interfaces
USB Port	3*USB 3.0 port,4*USB 2.0 port,1*Type-C USB port
Audio	2*3.5mm MIC in & SPK out
Video	HDMI 4096*2304@30Hz + DP 4096*2304@60Hz +Type-C 4096*2304@60Hz 3 Display Output
Audio Cards	USB Audio Device
M.2	1*M.2 E KEY 2230
TF	1*TF card slot
Lan Port	1* RJ45 Lan intel Ethernet Controller I219-V (1G)
Wi-Fi	Inside Wifi & Bluetooth Combo
Others
System	Support Windows 10/11, Linux
BIOS	Support TPM 2.0,Wake On LAN,PXE,Connect the power to automatically start
Work Environment	-10ºC--50ºC(14F~122F) , 30%--90% Humidity
Case Material	ABS + Aluminum Alloy
Dimension	PC size 192*130*50mm Package size 308*206*75mm
Weight	Net 0.6kg; Gross 1.4 kg
