Low Price 50-100mm Sumore Milling Drill Bench Press Machines Vertical Drilling Machine

Low Price 50-100mm Sumore Milling Drill Bench Press Machines Vertical Drilling Machine

US$9,050.00 1 set (MOQ)

Basic Info.

Model NO.
SP5180B
Structure
Vertical Drilling Machine
Layout
Vertical
Controlling Mode
Artificial
Hole Diameter
50-100mm
Automatic Grade
Manual
Certification
CE
Condition
New
Drilling Capacity
80mm
Main Motor Power Kw
5.5
Table Size mm
650*550
Machine Tool Weight Kg
2500
Outline Dimension mm
1197*980*2797
Transport Package
Plywood Box
Trademark
SUMORE
HS Code
8458912090
Production Capacity
1000

Product Description

Product Description

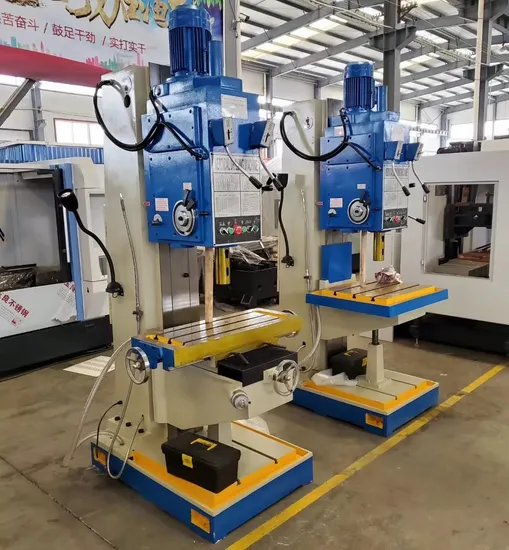

SP5180B Drill Press Vertical Drilling Machine 80mm Bench Drill Press Machine With Factory Price SUMORE
1. Z5180 vertical drilling machine, which can be used for drilling, reaming, countersinking, boring, tapping, etc. The automatic reversal of spindle tapping and inching feed are very convenient for blind holes and fixed depth holes. 2. The machine tool has high efficiency, good rigidity, high accuracy, low noise, wide speed change range, centralized operation, novel appearance and convenient use and maintenance.
3. Multi axis machine can realize simultaneous processing of multiple holes and greatly improve processing efficiency.
Product Parameters
Main technical parameters
SP5180B
Maximum borehole diameter mm
80
Maximum Feed Resistance N of Main Shaft
30000
Maximum spindle torque N.m
800
Main motor power kw
5.5
Conicity of main cone hole NO
6
Spindle speed r.p.m
40-570(9steps)
Feed per spindle revolution mm/rev
0.11-0.78(6steps)
Spindle stroke mm
250
Spindle box stroke mm
250
Distance from spindle centerline to pillar mm
375
Longitudinal and transverse travel mm of worktable
no
Vertical travel mm of worktable
300
Maximum distance from end face of spindle to worktable mm
850
Table size mm
650*550
Machine tool weight kg
2500
Outline dimension mm
1197*980*2797

As the professional and experienced manufacturer of lathe, mill , drill , cnc and other tools ,Shanghai SUMORE Industrial Group has been in this filed for more than 20 years.
We have got the certificates of CE ,etc . Also we have been in business with GSK ,Siemens ,Faunc and other famous companies within 50 countries all over the world.
Whether you need the standard or the customerised products , please contact us directly . Our professional and experienced engineers and after sale service team will meet your needs.
Hope to cooperate with you!
