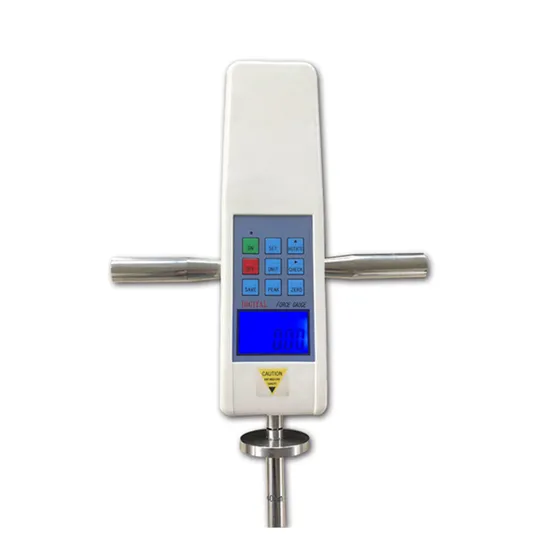

Soil Hardness Penetrometer Portable Soil Compaction Tester

Product Description

Product Description
Tight soil can prevent water infiltration, reduce fertilizer utilization, affect plant root growth, and lead to crop yield reduction. Therefore, it is particularly important to know the compactness of the soil, and digital soil hardness meters can better guide the growth of agricultural crops.
Product Features
★ High accuracy and high resolution: large screen LCD display, with backlight function (backlight for night use), inverted reverse function of numbers on the screen.
★ Battery capacity display: divide into 3, 2and1 grids. If battery capacity is too low, the instrument will shut down automatically.
★ Gravity acceleration setting function: users can input the exact value of gravity acceleration of testing site to make the test more precise.
★ Peak value maintaining function: maintain the peak value display until zero adjustment manually.
★ Automatic peak function: maintain displaying the peak values for 2S before automatic elimination.
★ Large memory storage function: can store 896 measuring values.
★ Data output function, data can be imported to the computer for various analyses.
★ Auto-off time setting: 10min-90 min automatic shutdown can be set.
★ High quality charging power: 100-240v of charging voltage can be available.Detailed Photos
Product Parameters

Model	TYD-2
Maximum load	100 Kg (Kg and N can be switched automatically)
Accuracy	±1%
Resolution	0.01 Kg
Measuring depth	0~450 mm
Temperature drift	0.2uV/ºC (0~60ºC)
Null drift	≤0.1%/8hours/FS
Calibration range	Full scale calibration
Environment temperature	0~60ºC
Environment humidity	≤80%
Allow overload	150% full range
Power supply mode	Nickel cyanide battery pack / 220V AC charging 4~6 hours
Battery continuous working time	4~8 hours
Dimension	230×65×700 mm

Agri-testing Instruments
FAQ
Q1. How can I choose the suitable one?
Please tell us your detailed requirements by mail or online, we will recommend the suitable one as your request.Q2. How can I pay?We accept many payment term, such as T/T, Western Union…Q3. When I receive it after pay?Normal models can be delivered with 5-7days, please contact us to check transport time to your address.Q4. What should I do if I do not know how to use?Manual user will be sent together, you can also contact us with more technological support.Q5. What should I do if some parts broken?We do standard export package and 1 year warranty except wear parts.
