SDCNC High Quality Aluminum Profile CNC Machine Center CNC 5 Axis Metal Machine Center with Vmc1370 Bt40 Spindle Controls

Product Description

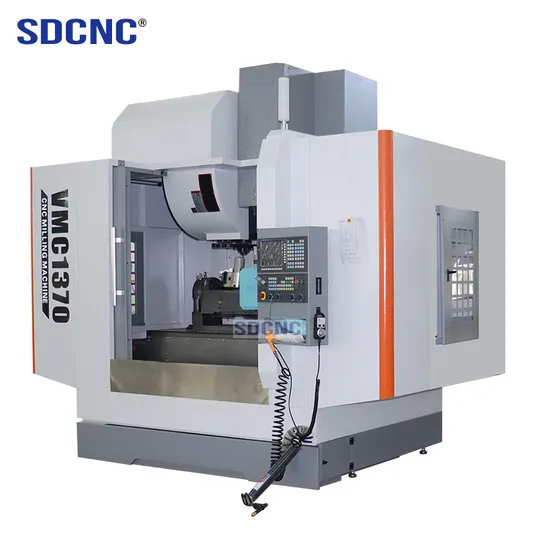

High Precision VMC1370 Vertical Machining Center
VMC1370is a versatile and high-quality machining center that is widely used in mechanical processing and mold manufacturing industries
Application:
This VMC is suitable for mechanical processing and mold making .And it can asapt to the processing requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling ,tapping ,boring ,etc.
The Vertical Machining Center Vmc1160 CNC Milling Center is equipped with the latest CNC technology, ensuring unparalleled accuracy and efficiency. Its robust construction and rigid structure provide stability and durability, allowing for precise and consistent results. This machine is perfect for a wide range of applications, including aerospace, automotive, and general machining.
Featuring a user-friendly interface, the Vertical Machining Center Vmc855 CNC Milling Center is easy to operate, making it suitable for both experienced professionals and beginners. Its intuitive control system allows for seamless programming and customization, ensuring optimal performance and productivity.
Product Description
High quality resin sand
Taiwan spindle
Taiwan ball screw and locking nut
Taiwan pressure cylinder
Japanese NSK bearing germany R+W coupling
Automatic lubrication system
Chip conveyor at optional
Application:
This VMC is suitable for mechanical processing and mold making .And it can asapt to the processing requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling ,tapping ,boring ,etc.
Detailed Photos



Product Parameters
Main configuration & accessories:
1. Resin sand casting;
3. X, Y, Z rails adopt stainless steel telescopic cover;
4. Standard with belt driven spindle, optional for direct driven spindle;
5. Taiwan production pneumatic cylinder;
6. Taiwan ATC, umbrella type and disc type are available;
7. Import bearings for leadsrews;
8. Import coupling;
9. Headstock balancing system have heavy casting or nitrogen balance system as option;
10. Full enclosed cover;
11. Rigid tapping;
12. Spindle center air blast;
13. Work lamp;
14. Pilot lamp;
15. USB and Internet interface;
16. Manual pulse generator (MPG);
17. Centralized automatic lubrication system.
18. Cooling system.
19. Heat exchanger for electrical cabinet ;
20. Leveling blocks & bolts;
21. Toolbox and tools;
22. CNC controller: KND,GSK, HNC (China); SIEMENS, FANUC, MITSUBISHI, FAGOR, etc.

Item	Unit	VMC1370
Capacity
X axis travel	mm	1300
Y axis travel	mm	700
Z axis travel	mm	700
Spindle nose to worktable	mm	110-810
Spindle center to column	mm	750
Leadscrew size
Leadscrew diameter	mm	Φ45
Linear guideway width	mm	45/45/45
Worktable size
Worktable Length	mm	1400
Worktable width	mm	700
Max loading capacity	kg	1000
Spindle
Spindle speed	rpm	8000
Main motor power	kw	11/15
Spindle taper		BT40
Feeding system
Fast moving speed (X/Y/Z)	m/min	24/24/24
Cutting speed	mm/min	1-10000
Feed motor power	kw	3 *3 *4.5
Tool Magazine
Capacity	pcs	Arm 24
Max tool diameter	mm	120
Max tool weight	kg	8
Max tool length	mm	300
Accuracy
Positioning accuracy	mm	0.012
Repeat accuracy	mm	0.008
Machine dimensions
Length	mm	4000
Width	mm	2800
Height	mm	3200
Weight	kg	9500

Packaging & Shipping
Company Profile
our service
1. Technical support online service provided.
2. Technical files service provided.
3. Machine operation video provided
4. On-site training service provided.
5.Spare parts replacement and repair service provided.
6 All of the questions will be replied within 8 hours
7. If you need to develop products with your own specification, we can help you to work it out.
