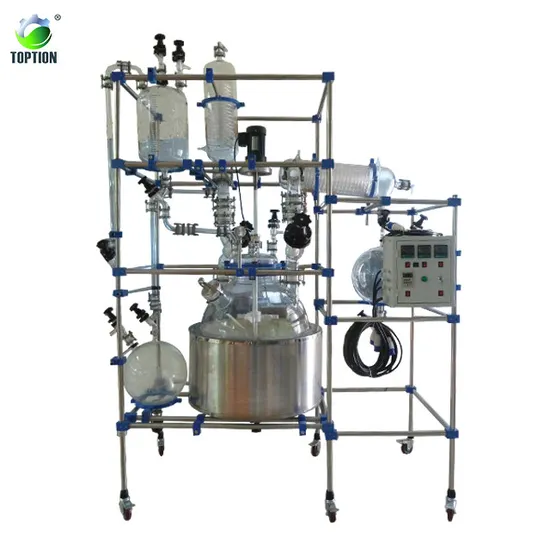

Chemical Explosion Proof Motor Jacket Chemical Reactor 100L
Basic Info.
Model NO.
TOPT-100L Chemical Reactor
Material
Glass-Lined
Capacity
50-100L
Structure
Jacketed Glass Reactor
Pressure
Negative
Agitator Model
Paddle Agitator
Tower Reactor Type
Coil
Heating
Oil Circulation Heating
Heat Transfer Structure
Jacketed
Automatic Grade
Automatic
Condition
New
Reactor Kettle Body
100L
Diameter of Lid Cover
340mm
Cover Material
Solid Feed Valve with PTFE Cover
PTFE Temp Sensor
1
Liquid Feed Valve
1
Capacity of Feeding Tank
5L
Collection Flask
10L
Seal Type
Mechanical Seal
Speed Controller
50-600rpm
Usage
Distillation/Filtration/Crystallization/Extraction
After-Sale Service
Free Guide Online
Transport Package
Wooden Box
Specification
100L
Trademark
TOPTION
Origin
China
HS Code
8419409090
Production Capacity
3000PCS/Year
Product Description
Product Descriptionchemical Explosion Proof Motor Jacket Chemical Reactor
The double-layer glass reactor is a double-layer glass design. The inner layer of the double-layer glass reactor / double-layer glass reactor is placed in the reaction solvent to make the stirring reaction. The interlayer can pass different cold and heat sources (frozen liquid, hot water or heat Oil) to do the heating or cooling reaction. In the set constant temperature conditions, in the closed glass reactor, according to the use of requirements under normal pressure or negative pressure conditions for stirring reaction, and can do the reaction solution reflux and distillation, is a modern fine chemical plant, bio-pharmaceutical and New material synthesis of the ideal pilot, production equipment.
Product Parameters
| Type | Capacity | Liquid material inflow | Condenser | Temp. measure | Multi-function valve | Solid charging port | Stirring paddle | Reactor lid flange | External diameter | Power |
| TOPT-1L | 1L | 24# 0.25L | 24# | 14# | ----- | ----- | ¢7mm Anchor type | 150 | 150 | 40 |
| TOPT-2L | 2L | 24# 0.25L | 24# | 14# | ----- | ----- | ¢7mm Anchor type | 150 | 180 | 40 |
| TOPT-3L | 3L | 24# 0.25L | 24# | 14# | ----- | ----- | ¢7mm Anchor type | 150 | 200 | 40 |
| TOPT-5L | 5L | 24# 1L | 24# | 19# | 24# | ----- | ¢10mm single layer two-blade paddle type | 180 | 230 | 60 |
| TOPT-10L | 10L | 34# 1L | 34# | DN15 | DN25 | ----- | ¢16mm single layer three-blade paddle type | 265 | 290 | 120 |
| TOPT-20L | 20L | 34# 1L | 34# | DN15 | DN25 | ----- | ¢16mm single layer three-blade paddle type | 265 | 330 | 120 |
| TOPT-30L | 30L | 34# 1L | 34# | DN15 | DN25 | ----- | ¢16mm single layer three-blade paddle type | 265 | 365 | 120 |
| TOPT-50L | 50L | 34# 1L | 34# | DN15 | DN25 | DN80 | ¢16mm double-layer three-blade paddle type | 265 | 410 | 140 |
| TOPT-100L | 100L | 5L 24# | DN40 ball mouth | DN15 | DN25 | DN80 | ¢16mm three-layer three-blade paddle type | 340 | 500 | 250 |
| TOPT-150L | 150L | 5L 24# | DN40 ball mouth | DN15 | DN25 | DN80 | ¢16mm three-layer three-blade paddle type | 340 | 600 | 400 |
| TOPT-200L | 200L | 10L DN25 | DN50 ball mouth | DN25 | DN25 | DN100 | ¢16mm three-layer three-blade paddle type | 340/ 440PP flange | 650 | 400 |
Our Advantages
1. GG17 (3.3) borosilicate glass, with good chemical and physical properties.2. The evaporation and back-flow of reaction material can be controlled.3. Reacting Temperature: -120~300ºC4. The design of a large bottle mouth, easier to clean.5. It can be used as a distillation synthesis device.6. The sealing performance is 0.098 Mpa.7. LCD display, easier and more convenient to measure temperature.8. Single layer or double layer PTFE Stirring leaf, corrosion resistance
