Yarn Wrap Reel Electronic

Product Description

Product Description

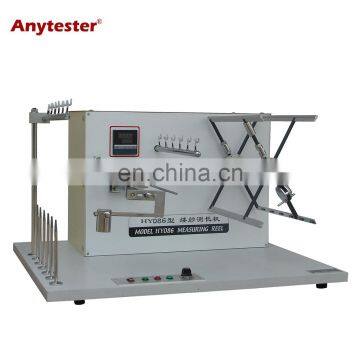

Product Description HY086 Series Electronic Yarn Wrap Reel is used to produce skeins of yarn of a pre-determined length and number of turns for count and/or strength testing. Complete with yarn package stand and pre-tension device, fitted with pre-determined counter. Standard ASTM D1907ISO2060GB/T4743, 14343, 6838Features1. Use MCU to control unit, allow numeric programming parameter, Transistor drive counter2.Electric drive, easy to handle and more efficient3.Two optional startup mode (hard startup, soft startup), do not break yarn when startup4.Adopt well-known DC speed regulating motor with synchromesh belt makes precisely positioningSpecification ModelHY086CHY086EHY086FReel circumference1000mm1 yard (36 inch)1.5 yard (54 inch)Working position6 or customizedRotational speed25-300 RPM(numeric pre-settable)Interval of spindle 65mmNumber of wrap2-9999 Rev(pre-settable)Programmable stop1-9 rev(pre-settable)Traveling reciprocating distance35mm+/-1mmReeling pre-tension0-100cN (pre-settable)Power supply220V, 50HzDimensions780 * 660 * 480mm ( L x W x H )Weight 50kg
