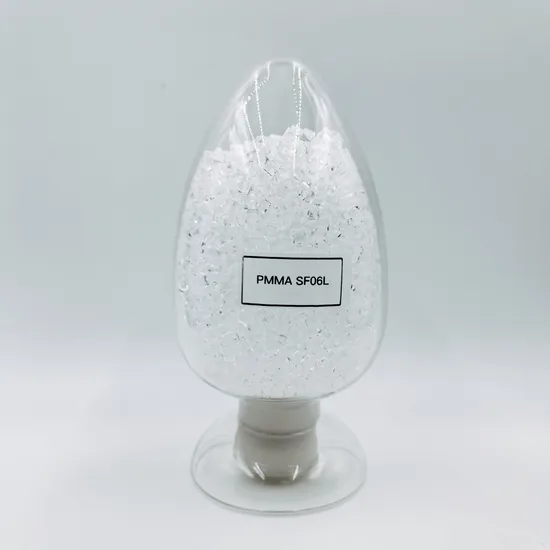

Wanhua Sf06L: Premium Acrylic Material for Versatile Use Polymethyl Methacrylate

Product Description

Product Description ACRYPLAS® SF06L
Features: Excellent transparency, Outstanding outdoor durability, Good scratch resistance Uses: General purpose Appearance: Clear/ transparent Forms: Pellets Processing Method: Injection Molding, Extrusion Product Parameters Properties Property Name Value Unit

Appearance	Colourless	--
Physical State	Solid	--
Relative density (water = 1)	1.19	--
Decomposition Temperature	>280	--
Melting point/freezing point	60-100	°C
Solubility in Water	Immiscible	--

Specifications Specification Name Value Unit Test Method Test Condition

Melt flow rate at 230 °C/3.8 Kg	10	g/10min	ISO 1133	--
Shrinkage	0.2 - 0.6	%	ISO 294	--
Water absorption at 24hr	0.3	%	ISO 62	--
Density	1.19	g/cm3	ISO 1183	--
Tensile strength at 5 mm/min	59	MPa	ISO 527	--
Tensile Modulus at 1 mm/min	3300	MPa	--	--
Elongation at 5 mm/min	5	%	--	--
Flexural Strength at 2 mm/min	110	MPa	ISO 178	--
Flexural Modulus at 2 mm/min	3300	MPa	--	--
Charpy impact strength at 1eU unnotched	19	KJ/m2	ISO 179	--
Charpy impact strength at 1eA notched	1.3	KJ/m2	--	--
Vicat softening temperature at B50	101	°C	ISO 306	--
Heat distortion temperature at 1.8MPa	94	°C	ISO 75	--
Thermal expansion coefficient	6 x 10^-5	1/°C	ISO 11359	--
Transmittance at 3mm	92	%	ISO 13468	--
Haze at 3 mm	< 0.5	%	ISO 14782	--
Refractive Index	1.49	--	ISO 489	--
Flame Rating 1.5 mm/3.0 mm	HB	Class	UL94	--
Surface resistivity	>10^16	Ω	ASTM D 527	--
Volume Resistivity	>10^13	Ω.m	--	--
Dielectric strength at 4 kv/sec	--	kV/mm	ASTM D 149	--
Dielectric constant at 60 Hz	3.7	--	ASTM D 150	--
Screw L/D	25 ~ 35	--	--	--
Barrel temperature (Hopper)	210 - 240	°C	--	--
Barrel temperature (Center)	220 - 250	°C	--	--
Barrel temperature (Die side)	--	°C	--	--
Die temperature	--	°C	--	--

Applications
