High-Capacity Dual Screw Mixer for Food and Pharma Applications

Product Description

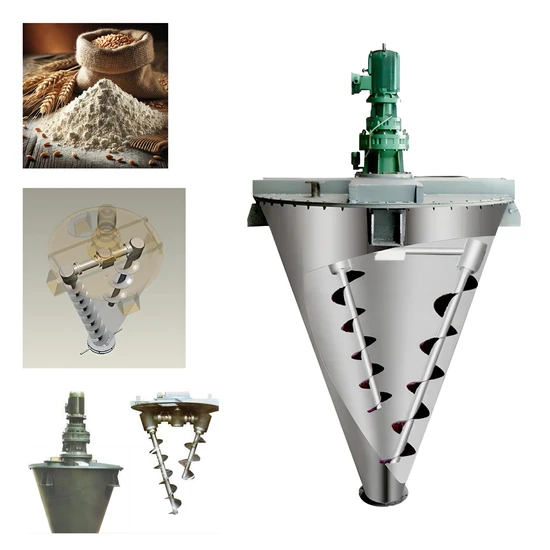

The Double Screw Conical Mixer, equipped with two asymmetrical spirals on an internal cantilever, performs both self-rotation around its own axis and revolution driven by the cantilever around the central axis of the vessel. This intricate configuration generates four types of directional forces, creating a harmonious and efficient mixing process. The two asymmetrical spirals rotate to lift the material upwards, while the cantilever's slow revolution circulates the material in a fluid circular motion. The coordinated rotation and revolution of the spirals draw the material inwards and disperse it outwardly in a circular path. The upwardly lifted material streams converge at the center and flow downwards, filling the void at the bottom, thereby creating an overall circulating flow that ensures thorough mixing.
Product Features
1. Cantilever Shaft Structure, with the bearings end not in contact with the material, ensuring clean and efficient operation.
2. The gap between the agitator blades and the container wall is exceptionally small to prevent material adhesion.
3. A standardized agitator drive box ensures stable equipment operation and reduces maintenance costs significantly.
4. Easy-Cleaning: Designed for quick and thorough cleaning between batches;
5. Durable Construction: Built with robust materials for long-term reliability and durability;
6. Wide Application: Versatile across industries such as pharmaceuticals, food processing, chemicals, and cosmetics;
7. Meets high standards for complete discharge of mixed materials without residue;
8. Gentle mixing method preserves fragile materials such as crystalline substances;
9. Low-energy mixing is more suitable for material chemical reactions;
10. The arched top cover design eliminates sanitary dead corners, making cleaning easier and more efficient;
11. Equipped with a spherical discharge valve for more thorough and stable material discharge.
Technical Parameters

Device Model	DSH-0.3	DSH-0.5	DSH-1	DSH-2	DSH-3	DSH-4	DSH-6	DSH-10	DSH-15	DSH-20	DSH-30
Effective Volume(m³)	0.18	0.3	0.6	1.2	1.8	2.4	3.6	6	9	12	18
Maximum Batch Capacity(Kg)	200	300	650	1200	1800	2500	3600	600	9000	1200	1800
Revolution/Rotation(r/min)	3.5/12	3.5/12	3/78	3/78	3/78	1.8/65	1.6/65	1/65	1/65	1/44	1/44
Drive Power(kW)	3	3	4	5.5	7.5	11	15	18.5	22	37	45
Equipment Weight(Kg)	500	600	1200	1500	2300	2520	3700	3980	4500	5500	6800
D	φ950	φ1150	φ1580	φ1950	φ2170	φ2280	φ2560	φ3000	φ3450	φ3770	φ4100
H	2060	2350	2840	3500	3760	4360	4800	5900	6680	6700	7500

Product DisplayProduct Structure
Application
The Double Cone Mixer can be used in industries such as powder metallurgy, electrical alloys, magnetic materials, battery powders, pearlescent pigments, chemical industry, medical, and food industry.
About Our Company
Shijiazhuang Rongxin Science and Technology Co., Ltd.
was founded in 2007, with its headquarters located in Shijiazhuang, the capital city of Hebei Province. Specializing in the design and equipment provision of material handling automation system, our company has garnered recognition as a leader in the field, securing numerous patents and accolades, including "National High-Tech Enterprise" and "Innovative Enterprise."
Currently, our company's premier offerings feature dust-free enclosed feeding systems, sealed conveying systems, pneumatic conveying systems, and tube chain conveying systems. These advanced solutions are extensively utilized across various sectors including the metal materials industry, food processing industry, chemical industry, pharmaceutical industry, and the burgeoning new energy industry. Additionally, we proudly operate our own state-of-the-art production facility, complete with mature and sophisticated manufacturing lines. This ensures that every piece of equipment we produce meets the highest standards of quality and excellence.
