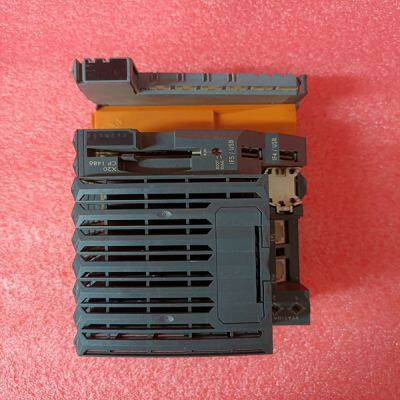

B&R X20CP1486

Product Details

Product Description

Product Description
Brand:B&R
Type:X20CP1486
Origin: the United States
Warranty: 365 days
Colour: new/used
Shipping method: Courier delivery
Spare parts spare parts, the main DCS control system of PLC system and the robot system spare parts,
Brand advantage: Allen Bradley, BentlyNevada, ABB, Emerson Ovation, Honeywell DCS, Rockwell ICS Triplex, FOXBORO, Schneider PLC, GE Fanuc, Motorola, HIMA, TRICONEX, Prosoft etc. Various kinds of imported industrial parts
Description The CI868 can be used to connect an AC 800M controller to external Ethernet devices using IEC 61850 protocol. The TP868 Baseplate has two RJ45 Ethernet connectors, where CH1 connector can use 10Mbps or 100Mbps (Mega bits/sec.).The baseplate has a code lock (see Table 4 on page 75) that prevents the installation of an incorrect type of unit onto the TP867 Baseplate. The CI868 expansion unit contains the CEX-Bus logic, a communication unit and a DC/DC converter that supplies appropriate voltages from the +24 V supply via the CEX-Bus. The Ethernet cable must be connected to the main network through an Ethernet Switch.
Indicators There are six LED indicators on the front panel of CI868 that indicate various states and conditions on the CI868. Technical Data Table 100. IEC 61850 Interface CI868 - LED indicators Designation/Color Function F(ault) / Red The red F(ault) LED indicates a fault condition on CI868. Reset turns the F LED on. Software can turn it on and off via a register in the CEX-Bus controller. R(un) / Green The green R(un) LED indicates that CI868 is operational. Reset turns the LED off. Software can turn the LED on and off via a register in the CEX-Bus controller. RxTx1 / Yellow The yellow Rx/Tx1 LED is intended to be lit to indicate a receiving/transmitting telegram at Ch1. The LED is controlled by Ethernet PHY. It is turned off by reset. RxTx2 / Yellow The yellow Rx/Tx2 LED (LED will always be switched OFF) is intended to be lit to indicate a receiving/transmitting telegram at Ch2(The channel is disabled). The LED is controlled by Ethernet PHY. It is turned off by reset. PRIM(ary) The PRIM LED is ON when the module is used in a single configuration (CI868 does not support redundant configuration).
