Multi-Function Vegetable Cutter for Root and Leafy Vegetables

Product Description

After Sales Service

No.	Service items	Our promises
1	Core parts(motor, knife disk)	1 year
2	Spare parts	provide at cost
3	Online and video technology support	free of charge
4	Return order discount	2~4%
5	Related machine resource	can help free of charge
6	Field installation and maintenance	chargeable

Product Description

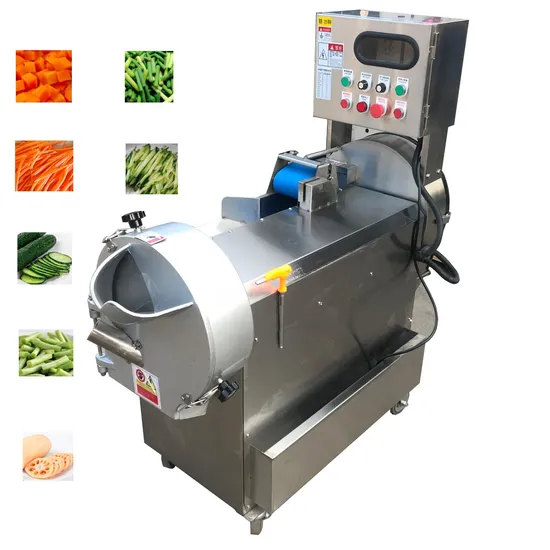

Multi-function vegetable cutter is used to cut vegetables in food processing. From one side, leafy vegetables can be cut into segments; from another side, root or corm vegetables can be cut into slices, shreds and dices. The machine has dual frequency conversion function, each cutter set can be controlled separately. Leafy vegetable and root vegetable can be cut at the same time, so the efficiency is greatly improved.

It is applicable for both long leafy vegetables and root or corm vegetables. Long leafy vegetables include celery, green bean, leek, cabbage, spinach, scallion and garlic bolt etc.; root vegetables include potato, sweet potato, onion, eggplant, cucumber, radish, carrot, tomato etc.

The machine is easy to be operated and cleaned and the cutter disk is also convenient to be replaced. It's an ideal helper for food plant, vegetable processing factory, restaurant and school canteen.
Product Parameters

Model No.	QCJ-801
Voltage, phases and frequency	380V/220V, 3-phases or single phase, 50HZ/60HZ
Total power	2.4KW
Material of machine outer casing	SUS304 or SUS201 at your option
Material of parts contacting vegetables	SUS304
Machine applicable	slice, shred and dice of root vegetables; segemnts of leafy vegetables.
Working capacity	500~1000 kgs/hour
Diameter of knife disk	360mm
Slice thickness of root vegetables	2mm, 3mm, 4mm, 5mm
Shred size of root vegetables	2 x 2mm, 3 x 3mm, 4 x 4mm, 5 x 5mm
Dice size of root vegetables	cube in 8mm, 10mm, 12mm, 15mm, 20mm
Conveyor belt width	120mm
Segment length of leafy vegetables	adjustable from 1mm~60mm
Overall machine dimension	1200mm x 550mm x 1100mm
Gross machine weight (kg)	150kgs
Remarks: 1. Electricity voltage, phases and frequency can be customized according to buyer's need; 2. knife disk size can be customized.

Machine details
Product application

Packaging & Shipping
Company Profile
Our company, Qingdao Hyperway International Trade Co., Ltd., is a professional food machinery manufacture and sale company founded in 2019. It is located in Qingdao, Shandong province which is a famous machinery manufacturing base. It′s a dynamic and progressive company with staff more than 15 year′s experiences in foreign trade especially in the line of food machinery. And we export our products to more than 40 countries worldwide.
We can provide you solutions for food machine design, manufacture, installation and maintenance etc. Details of our main products are listed as below:
-- Meat processing machines:
Frozen meat crusher, meat bowl cutter, vacuum tumbler, meat grinder, meat mixer, meatball making machine, frozen meat beef pork slicer, meat
dicer, bone saw machine...
-- Sausage making machines:
Hydraulic sausage filling machine, pneumatic sausage filling machine, sausage linker machine, sausage smoking machine and the whole sausage
processing line...
-- Hamburger patty and chicken nugget making machines:
Patty nugget forming machine, batter dipping machine, bread crumb coating machine, , frying Machine, quick freezer and the whole lines...
-- Fryer processing machines:
Bowl-type single fryer, continous fryer, oil-removing machine, oil filter, seasoning machine...
-- French fries processing lines:
Potato washing & peeling machine, potato cuting machine, potato blanching line, vibrating screen, frying line, seasoning machine, pre-chilling
machine, quick freezer, packing machine...
-- Fruit and vegetable processing machines:
Washing and peeling machine, cutting machine, slice machine, dicer, blanching machine...
-- Packing machines:
Compact vacuum packing machine, rolling vacuum packing machine, continous packing machine, Skin packaging machine, modified atmosphere
packing machine, tray and cup packing machine...
We have strict system to guarantee quality control and business service.
Hope to cooperate with friends home and abroad, welcome to visit our company and factories.
FAQ
1. Q: What's your MOQ?
A: Generally, it's 1 set for each size.
2. Q: Where is your factory located? What's the nearest air port and and how long it will take from airport to factory?
A: Our factories are located in Shandong province, east of China. It's about 2 hours from factory to Qingdao airport.
3. Q: What's your lead time?
A: It needs about 15 days for one set and 25 days for 3 sets.
4. Q: What's the payment terms required?
A: 1) T/T 30% and the balance against of B/L copy sent to you;
2) L/C at sight
3) For small order, West Union, paypal or cash accepted.
5. Q: Can products be customized?
A: Customized products are welcome. Extra fee than normal products should be paid by customer.
Anything uncertain or unclear, please feel free to contact me.
