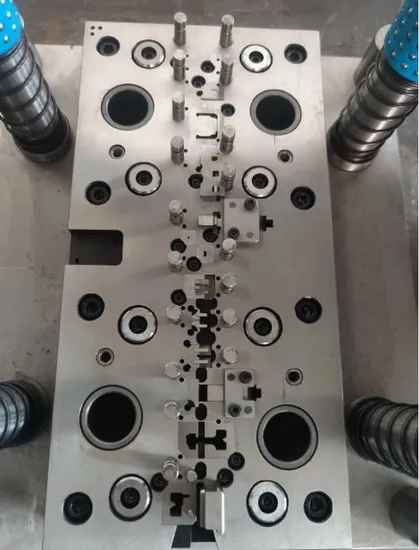

Custom Progressive Die Design Stamping Die Cuangdong OEM Metal Sheet Progressive Stamping Mold Making, Vehicle Punching Die Manufacture

Product Description

Product Description

Item	Description
Place of Origin	China
	Guangdong
Brand Name	OEM
Model Number	SC-m-156
Shaping Mode	Punching Mold
Product Material	Metal
Product	Household Product
Mould life	300,000 strokes, 1,000,000 strokes
Material	D2,45# steel
Mould type	progressive stamping mould, single stamping mould etc.
Packaging	foam,wooden case etc. or according to customer's information.
OEM&ODM	Accepted
Sample time	7 days and free
Drawing format	PDF, STP,STEP,DWG, CAD
Mould test	Accepted
Process	design,CNC,heating treatment, grinding,wire cutting ,etc.
Port	Guangzhou

Detailed Photos
Product Parameters

Brand Name	OEM
Product Name	Metal Stamping Die/Mould
Tolerance	±0.002mm
Material	SKD11, SKD 61, Cr12MOV, D2, SKH-9, RM56, ASP23 etc.
Design Software	AutoCAD, Solid works, PRO/E, UG
Standard	ISO9001
Mould Type	Compound Stamping Die, Single Stamping Die, Progressive die or according to Customer's requirements
First Trial	15-25 days after mold drawing confirmed
Mould Life	Depends on customer's production capacity
Quality confirm	Can send strip layout of die, testing video, inspection certificate and sample of product
Package	PE bags and carton for products, wooden case for Die/mold, or as customer's requirements

Packaging & Shipping
Company Profile
Zhongshan SiChuang Precision Technology Co., Ltd. specilizes protype parts ,machining CNC, mold design,mold manufacturing. The material can be Metal,Steel,Cr12,Cr12mov,SKD11,aluminum etc. We are located in Xiaolan Town, Zhongshan City. We have a strong team with extensive experience and years of specialized knowledge ,manufacture the parts to specified requirment
Our Advantages
20 Years of industrial experience, professional China manufacturer of Stamping Die and Sheet Metal Processing /Stamping with one-stop sevice.

We are mainly focus on the services of Home Appliance, Automobiles, Motorcycles and other industrial customers, from mold design, processing, assembly and debugging, to the stamping automation equipment matching manufacturing full process.
We have our own R&D team to provide you with feasible manufacturing solutions. Scichuang can provide customers with various small batch products according to your delivery requirements.
After Sales Service
If any NG parts including damage during shipment,parts out of tolerance or cosmetic problem from our our factory found at customers, we will reworking at first time or you can refund from us.We are answering you any questions all the time about the products, such as what our process and try our best to work with customers to resolve their problem.
FAQ
1. Curling Curling is a stamping process that rolls the edge of the process part into a nearly closed circle. The axis of the curling circle is straight.
2. Flanging Flanging is a stamping process that rolls the upper edge of the hollow part into a nearly closed circle.
3. Drawing Drawing is a stamping process that changes the straight raw material or process part into a curved surface. The curved surface is mainly formed by the extension of the material at the bottom of the punch.
4. Stretch-bending Stretch-bending is a stamping process that realizes bending deformation under the combined action of tension and bending moment, so that the entire curved cross-section is subjected to tensile stress.
5. Bulging Bulging is a stamping process that expands hollow parts or tubular parts radially outward. Sectioning Sectioning is a stamping process that divides the forming process part into several parts.
6. Leveling Leveling is a stamping process that improves the flatness of local or overall flat parts.
7. Undulating forming It is a stamping process that relies on the extension of the material to form a local depression or convexity in the process part. The change in material thickness during undulation forming is unintentional, that is, a small change in thickness is naturally formed during the deformation process, not a design requirement.
8. Bending Bending is a stamping process that uses pressure to cause plastic deformation of the material, so that it is bent into a shape with a certain curvature and a certain angle.
9. Chiseling Chiseling is a blanking or punching process using a sharp-edged chiseling die. There is no lower die in chiseling, and the material under the material is just a flat plate. Most of the punched materials are non-metallic.
10. Deep hole punching Deep hole punching is a punching process when the hole diameter is equal to or less than the thickness of the punched material.
11. Blanking Blanking is a stamping process that separates the material along a closed contour. The separated material becomes a workpiece or process part, most of which are flat.
12. Shrinking Shrinking is a stamping process that pressurizes the open part of a hollow part or a tubular part to shrink it.
13. Shaping Shaping is a stamping process that relies on material flow to slightly change the shape and size of the process part to ensure the accuracy of the workpiece.
14. Trimming Trimming is a stamping process that cuts off a small amount of material along the outer or inner contour to improve the edge finish and verticality. The trimming process generally also improves dimensional accuracy.
15. Hole turning Hole turning is a stamping process that turns the material into a side flange around the inner hole.
16. Flanging Flanging is a stamping process that turns the material into a side short edge around the outer curve.
17. Drawing Drawing is a stamping process that turns a straight raw material or process part into a hollow part, or further changes the shape and size of a hollow part. During drawing, the hollow part is mainly formed by the material outside the bottom of the punch flowing into the die.
18. Continuous drawing Continuous drawing is a stamping method that uses the same die (continuous drawing die) to gradually form the required shape and size on a strip (coil) through multiple drawing.
19. Thinning and drawing Thinning and drawing is a drawing process that further changes the shape and size of the hollow process parts and intentionally thins the side walls.
20. Reverse drawing Reverse drawing is a drawing process that turns the inner wall of the hollow process parts outward.
21. Differential temperature drawing Differential temperature drawing is a drawing process that uses heating and cooling methods to make the temperature of the part to be deformed much higher than the temperature of the deformed part of the material, thereby increasing the degree of deformation.
22. Hydraulic drawing Hydraulic drawing is a drawing process that uses liquid in a rigid or flexible container to replace the punch or die to form a hollow part.
23. Beading Beading is a type of undulation forming. When the local undulation appears in the form of ribs, the corresponding undulation forming process is called beading.
