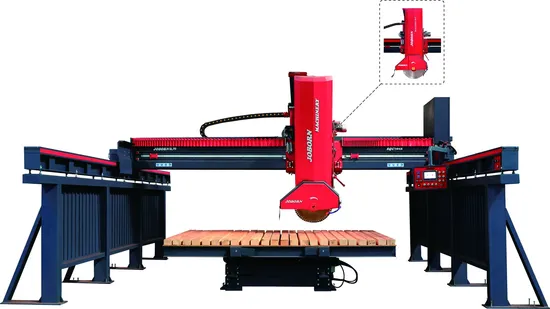

Joborn Machinery 3 Axis 45 Degree Chamfering Cutting Granite Use 100% Production Capacity High Precision Bridge Saw Stone Cutting Machine in USA

Product Description

Product Description:
JOBORN SQC700X Titlable Bridge Cutting Machine,4 axis Titlable Stone Bridge Cutting Machine for Cutting Granite and Marble
JOBORN SQC700X Tiltable Bridge Cutting Machine. This machine adopts microcomputer control system and human-machine interface, combined with ultra-high precision rotary encoder to locate and infrared device, uses inverter to control left-right feeding, adjusts the speed according to the stone material. It uses hydraulic lifting system, high lifting efficiency, main motor uses brand energy-efficient motor, reduces the later using cost; worktable use super heavy large size profiles welding together, larger than the table in the market, with more durable. Main parts adopt imported good-quality materials. The head can rotate 0°~50°, applied in a wider range. Thus the whole machine is featured as high cutting efficiency, high cutting precision, high stability, easy-operating to suit specially cutting granite and marble with high value and big size, and special-shaped stone.

Features:
1.Super-heavy type working plaform.The platform uses heavy large size profiles welding together,larger than the table in market,with more durable.
2.Taiwan famous hydraulic system.The hydraulic components from Taiwan first-line brand,react more quickly,works more stable.
3.Domestic premium brand main motor with high efficiency and more energy saving,make the cutting more powerful,and saving electricity more.
4.The cutting head can rotate 0°~50°, have a wider cutting range , can cutting and chamfering the stone with a special shape.
5.Humanized human-computer interaction interface.User-friendly interface,with more simple operation,easy to use.
6.Germany Siemens inverter, feeding more stable; imported or domestic famous brand electrical components, with lower failure rate, help you to worry less and save more labor.
7.High quanlity standard exported laser device, with longer service life and more lasting brightness.
Super-heavy type working plaform
Taiwan famous brand hydraulic system
Humanized human-computer interaction interface
Imported and domestic premium brand electric components
Cross beam linear guide (modifiable)
Side beam linear guide(modifiable)
Steel rigid base(Optional)
Single-beam lifting machine(Optional)

Technical Parameter:

SQC700X Tiltable Bridge Cutting Machine
Appellation	Unit	SQC700X
Max.Diameter of saw blade	mm	700
Max.lifting stroke of cutter	mm	470
Dimension of worktable	mm	3200x2000
Blade tilting range	degree/°	0~50°
Worktable rotation range(Optional)	degree/°	0,90,0~360(45° one position every 45°)
Worktable turn-over degree	degree/°	85°
Water consumption	m³/h	3
Power of main motor	kW	22
Total power	kW	29
Dimension(LxWxH)	mm	6000x5600x3600
Weight	kg	6500(incl.steel frame 7500)

Processing Spot:

FAQ:
Q: Are you manufacturer ? A: Yes, we are professional and top stone machine manufacturer more than 30 years in China. Also we have many authorized agents all over the world to take care of machine's after sell service. Q: Can I get a machine according to my own requirements? A: Sure. Welcome OEM and ODM orders. Q: This is the first time I use this kind of machine, is it easy operate? A: There are guide video that show how to use machine and English instruction manual sent to you with machine. If there is still have any question, we will provide free professional online guide for you until you could use machine well. Q: What's your MOQ and delivery? A: Our MOQ is 1 set. We could send machine to your country port or to door directly, please tell us your port name or address. We'll offer the most competitive price and freight to you. Q: How is your after sales service? A: We offer machine lifelong's free online guide service. And many countries we have local dealer to do machine's installation and maintenance. Q: If my machine is broken. Can you repair it for me? A: Yes, many machines of us have remote troubleshooting function, we can solve by remote control and video guide. Re. common problems, we have professional guideline to show how to replace the parts, and for the countries which our agents cover, they will repair for you as well.
