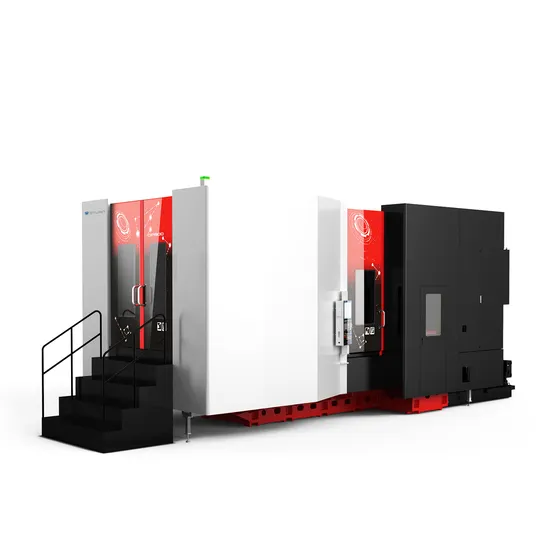

Cp800 High Quality Bridge Type CNC Horizontal 5-Axis Simultaneous Milling Machine

Product Description

Product Description
The high-speed, high-performance and precision horizontal five-axis machining center CP800 has the characteristics of high rigidity, high precision and high efficiency machining. The one-piece base is adopted, and the positive T structure design of the base's high and low rails ensures the high rigidity of the machine; the whole machine passes the finite element analysis to ensure that the machine does not vibrate under high-speed motion, and guarantees the best long-term operation stability of the whole machine.
By adopting high-end technologies such as high-speed spindle technology, high-speed feed technology, high-speed tool change technology, and high-speed CNC system technology, the processing time is greatly shortened, the processing efficiency is improved, and various production needs are met. The three-axis rapid displacement is 60 M/min, and the high-speed and high-torque electric spindle reduces the acceleration and deceleration time of the spindle. These indicators greatly shorten the non-processing time and improve the processing efficiency; the screw/bearing seat/spindle/DD swing head adopts a temperature control system, Guarantee the excellent thermal balance of the equipment, and greatly improve the accuracy and stability of the equipment.
Adopting Siemens ONE system, 19-inch super large LCD display, dynamic graphic display of tool trajectory, intelligent warning display, self-diagnosis and other functions make the use and maintenance of the machine more convenient and fast; the high-speed bus communication method greatly improves the data processing of the CNC system The ability and control performance facilitate the fast and efficient transmission and online processing of large-capacity programs.
Product Parameters

Item		Unit	CP800
Travel	Travel of X/Y/Z axis	mm	800 x 800 x 750
	B-axis travel	°	-30~120
	C-axis travel	°	360
	Distance from the spindle center to the table top (B-axis 90 degrees horizontal)	mm	160~910
	Distance from spindle end face to table top (B-axis 0 degree vertical)	mm	-83~667
	The distance from the end face of the spindle to the center of the worktable (B-axis 90 degrees horizontal)	mm	-135~665
	Distance from spindle center to table center (B-axis 0° vertical)	mm	108~908
	Maximum processing range	mm	Φ 720 x 910
Feed of 3 axis	X/Y/Z axis rapid feed	m/min	60/60/60
	Cutting feed rate	mm/min	0-24000
Rotary table (C-axis)	Rotary table	pcs	2
	Diameter	mm	500*500
	allowable load	Kg	500
	maximum rotation speed	Rpm	40
	Positioning/Repeat Accuracy	arc.sec	15 / 10
B-axis	Maximum rotation speed	Rpm	60
	Positioning/Repeat Accuracy	arc.sec	8 / 4
Spindle	Spindle specification (installation diameter/transmission method)	mm	190 / Built-in
	Spindle taper	m/min	A63
	Max. Spindle speed	mm	18000
	Spindle Motor Power	Kw	30/35
	Spindle Motor Torque	N.m	72/85
Tool	Tool magazine capacity		40 T
	Tools change time(T-T)	s	7
	Maximum tool diameter (Full tool / Adjacent empty tool tool)	mm	80/150
	Max. Tool length	mm	450
	Max. Tool weight	Kg	8
Guide	X-axis guide (size/number of slides)		45/2 (Roller)
	Y-axis guide (size/number of slides)		45/3 (Roller)
	Z-axis guide (size/number of slides)		45/2 (Roller)
Three axis transmission	X-axis lead screw	N	2R 40 x 20
	Y-axis lead screw	N	2R 40 x 20
	Z-axis lead screw	N	2R 40 x 20
Three-axis accuracy	Positioning accuracy	mm	0.005 / 300
	Repeat positioning accuracy	mm	0.003 / 300
Lubrication system	Lubrication unit capacity	L	0.7
	Lubrication type		Grease lubrication
Others	Air demand	Kg/cm2	≥ 6
	Air source flow	mm3/min	≥ 0.5
	Weight	T	11
	Size	mm	2785*4800*3040
	Machine weight	T	10.5

Products Configurations
Company Profile
Quality Control
Our Advantages
FAQ
Q1:How can l choose the most suitable machines ?
Please tell me your specications,we can choose the best model for you,or you can choose the exact model,you can also send us the products drawing,we will choose the most suitable machines for you .
Q2: What's your main products of your company?
We specialized in all kinds of machines,such as CNC Lathe Machine ,CNC Milling Machine,CNC Turning Maching,Vertical Machining Center ,Horizontal Machining Center,Lathe Machines,Turning and milling composite processing so on.
Q3: Where is our factory located? How can l visit there?
We have 5 factories located in Guangzhou, Quzhou, Ningbo, and Guangdong.You are warmly welcomed to visit us.
Q4. How do you transport it?
Provide Transportation Solution DDP/CIF/FOB/FCA
Q5: What's the Payment Terms ?
T/T ,30% initial payment when order,70% balance payment before shipment .
06: What's the MoQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
