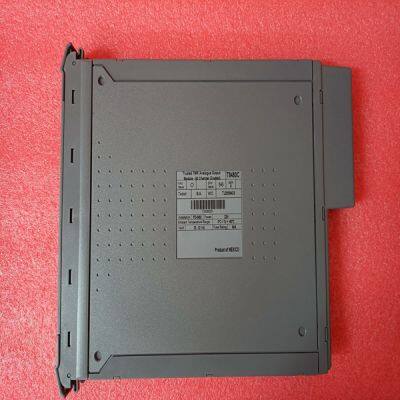

ICS TRIPLEX T8480C

Product Details

Product Description

Product Description
Brand:ICS TRIPLEX
Type:T8480C
Origin: the United States
Warranty: 365 days
Colour: new/used
Shipping method: Courier delivery
Spare parts spare parts, the main DCS control system of PLC system and the robot system spare parts,
Brand advantage: Allen Bradley, BentlyNevada, ABB, Emerson Ovation, Honeywell DCS, Rockwell ICS Triplex, FOXBORO, Schneider PLC, GE Fanuc, Motorola, HIMA, TRICONEX, Prosoft etc. Various kinds of imported industrial parts
Designation/Color Function F(ault) / Red Unit error detected. Set by the Hardware during Controller Reset. Controlled by Control Software after Reset. R(un) / Green Operating. Cleared by the Hardware during Controller Reset. Controlled by Control Software after Reset. RxTx1 / Yellow When flashing. Ethernet packages are sent/received at CH 1. RxTx2 / Yellow When flashing. Ethernet packages are sent/received At CH 2. PRIM(ary) This LED is on in single and redundant configuration. Indicates Primary CI867 in redundant configuration. DUAL This LED is on when CI867 is running in redundant configuration. Table 99. Modbus TCP Interface CI867 - Technical Specification Item Value Type Ethernet unit Protocol Modbus TCP Communication speed CH1 10 Mbit/s / 100 Mbit/s defined in IEEE 802.3u 10/100BaseTx Communication speed CH2 10 Mbit/s defined in IEEE 802.3 10Base-T
Status indicators Running normally: Green. Exceptional fault: Red. Two traffic indictors – RxTx1 and RxTx2 -- controlled by traffic pace: Flashing Yellow Traffic indictor CH2 – RxTx2 - controlled by traffic pace. Running as primary: Yellow. Running in a redundant configuration: Yellow. Connectors RJ45 Current consumption (from CEXBus 24VDC) 160 mA typical (250 mA max) Power dissipation 3.8W typical Protection Rating IP20 according to EN60529, IEC 529. Weight 700 g (1.5 lb) (package CI867K01with CI867 and TP867). Dimensions W 59 x H 185 x D 127.5 mm (W 2.9 x H 7.3 x D 5.0 in)
CI868 and TP867 – IEC 61850 Interface Key Features • CEX-Bus Module. • MPC862P 96MHz. • 32 MB SDRAM with integrity check. • 4 MB Flash PROM. • Ethernet/IEEE 802.3u supporting full Fast Ethernet 10/100Mbps operation. • Support IEC 61850 protocol • 10/100 Mbps use IEEE standard Media Independent Interface (MII)
