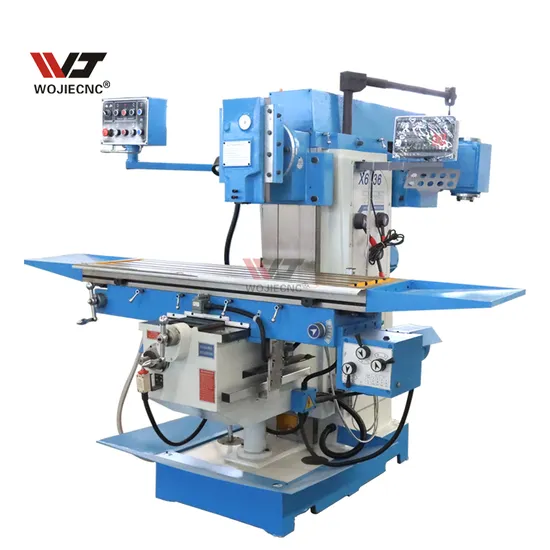

Automatic Feed Horizontal Milling Machine X6036 Lifting Table Vertical Milling Head Can Be Added

Product Description

Product Description
The main shaft has good rigidity and strong bearing capacity.Working table X, Y, Z three direction gear transmission automatic feed, X direction stroke 1000mm worktable guide rail pair ultra audio quenching, precision grinding.Manual lubrication device can be used for forced lubrication of lead screw and guide rail. The machine table can be vertical, horizontal, lifting, automatic manual, motor feed and equipped with fast retreat device, high efficiency.It is suitable for drilling, expanding, reaming, boring, hole processing;Such as disc milling machine, Angle milling cutter, forming milling cutter and end milling cutter, can be milling plane, inclined plane, vertical plane and groove, etc.
Product Parameters

Specifications	Units	X6036/X6036A
Table size	mm	1500*360
Table travel (X.Y.Z)	mm	1000/320/400
T-type slot numbers / width /space	mm	3/18/80
Max. load working table	kg	320
Distance from spindle axis to table	mm	0-400
Spindle hole center to the sliding pillow plane distance	mm	175
vertical and horizontal motor feed speed	mm/min	8 steps 22-555(Fast forward 830)
Vertical lift speed of working table	mm/min	11/275
Ram stroke	mm	500
Spindle taper		ISO50(7:24)
Spindle speed range	rpm	60-1800(12steps)
Spindle motor power	KW	5.5
Table motor feed motor power	W	750
Motor power of elevating motor	KW	1.1
Cooling pump motor power	W	90
Cooling pump flow	L./min	25
Max. spindle torque	N. m
Overall dimensions(L*W* H)	mm	2360*1790*1860
Machine weight	Kg	2300
Configuration of vertical milling head parameters
Vertical Milling head spindle taper	/	ISO40 (7:24)
Distance from spindle center to column surface	mm	320
Spindle end face to table face dimensions	mm	0-290

Detailed Photos
ZAOZHUANG WOJIE CNC MACHINERY Co., LTD. has:
More than 60,000m² of the factory with more than 150 workers. Strictly QC control with more than 24 steps testing processes 30+ years CNC machine manufacture experience factory 24 hours online service at any time Trade with customers in more than 150 countries around the word. Cooperate with the Famous Brand, such as SIEMENS, FANUC, SYNTEC ect. Support ODM OEM. Warranty time is 24 months FAQ
1. What are the payment terms?
A: T/T, 30% down payment when ordering, 70% balance before shipment; irrevocable L/C at sight.
After receiving the advance payment, we will start production. After the machine is ready, we will take pictures and videos for you to inspect the machine. After paying the balance, we will send the machine to the designated location according to your instructions.
2. What does your company mainly produce?
A: Our company is a professional machine tool manufacturer with many years of experience. The company mainly produces CNC milling machines, CNC lathes for machining centers, ordinary milling machines, ordinary lathes, hydraulic presses, etc.
3. When is the delivery time?
A: If the machine you ordered is a standard machine, we can prepare the machine within 15 days. If it is some special machines, the delivery time is about 30 days. Some machine models will be in stock, please consult the salesperson for details.
4. What are your trade terms?
A: FOB, CFR, CIF, DDP, DAP, FCA, etc.
5. What is your minimum order quantity and warranty period?
A: The minimum order quantity is 1 set, and the warranty period is 2 years. But we will provide lifetime service for the machine.
6. What is the packaging of the machine?
A: The machine is placed on a metal pallet, covered with a moisture-proof coat inside, and wrapped with plywood all around.
