Explosion Proof Dynamic Disc Type Horizontal Bead Mill

Product Description

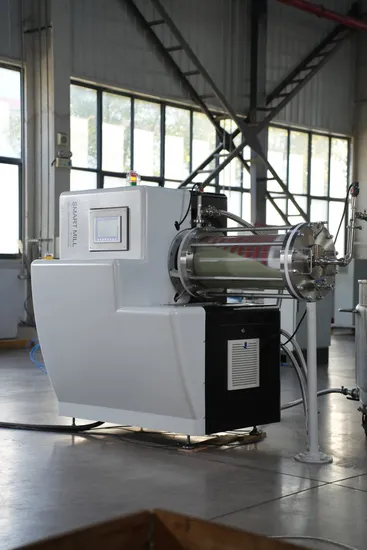

Product Description: The SMD25 model is a high-power large-volume bead mill, specifically designed for fine grinding and dispersing paints, pigments, inks, and carbon black. With high energy density in the grinding area and narrow particle size distribution, this mill ensures uniformity and high degree of product fineness up to 100 nm. The device is also suitable for grinding particles as small as 0.1 mm.
Key Features: Operating Principle: Cylinder Grinding Volume: 25 liters Power: 18.5/22 kW Capacity: 100-700 liters per batch Cutter Material: Ceramic with compressive strength >300 MPa Grinding Style: Fine grinding and impact Bead Size: 0.1-0.6 mm Benefits of Using the SMD25 Model: High Performance: Rapid and efficient grinding of large volumes of materials. Precision and Quality: Ensures excellent uniformity and quality of the final product. Reliability and Durability: Robust design and high-quality materials ensure long service life. Versatility: Ideal for various industrial processes, including the production of paints, pigments, and inks. Technical Specifications:

Model	SMD10	SMD25	SMD50	SMD100	SMD150	SMD200	SMD300	SMD600	SMD1200
Grinding chamber volume (L)	10	25	50	100	150	200	300	600	1200
Batch size (L)	50-250	100-700	200-1500	500-2500	500-3500	1000-5000	>7500	>10000	>20000
Drive capacity (kw)	13.5/15	18.5/22	45	55/75	55/75	75/90	90/110	160/250	315/450
