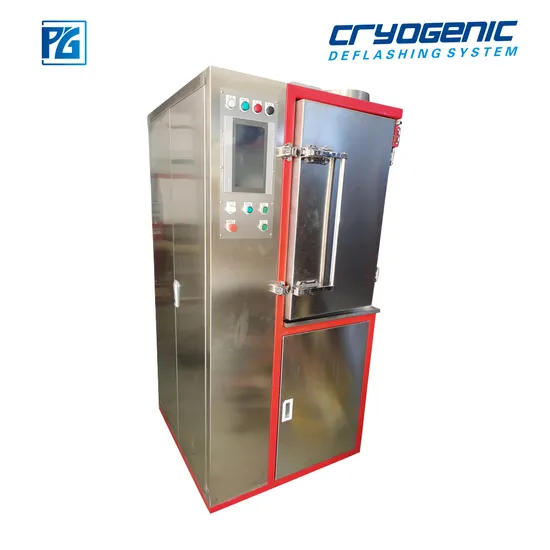

High-Efficiency Cryogenic Rubber Deflashing Machine for Gaskets and O-Rings

Product Description

China's Premier Producer of Automatic Rubber and Plastic Burr Cleaning Machines.
Product Description As temperatures plunge, rubber and plastic components undergo a fascinating transformation. They harden, become brittle, and start to crystallize. In this chilling phase, their former flexibility diminishes, leaving them susceptible to external forces. Notably, the flash of molded items is usually more fragile than the main product itself, reaching brittleness at lower temperatures. The revolutionary PEGE Cryogenic Deflashing Machine leverages this phenomenon to its advantage. When the flash becomes brittle while the main product remains flexible, our machine propels specialized plastic media at high velocities to expertly remove these delicate burrs. This ensures a flawless finish without compromising the integrity of the main product.
FUNCTIONS
Our cutting-edge machine masterfully eradicates flashes from small rubber and plastic components, such as O-rings, gaskets, and other intricately molded parts, offering unmatched precision and efficiency.
Utilizing the prowess of cryogenic technology, our machine first freezes flashes, then employs swift polycarbonate media to seamlessly enhance the surface quality of molded rubber and plastic parts, elevating them to new levels of excellence.
SPECIFICATIONS

TECHNICAL INFORMATION
MODE	PG-60T	PG-80T	PG-100T/120T	PG-150T
MACHINE PHOTO
SIZE(L*W*H)	1000*1000*1950MM	1100*1200*2000MM	1200*1250*2200MM	1300*1350*2250MM
WEIGHT	700KG	850KG	1000KG	1500KG
POWER	Ac380v 50Hz	Ac380v 50Hz	Ac380v 50Hz	Ac380v 50Hz
ELECTRICTY	6Kw*3Ph	7Kw*3Ph	8Kw*3Ph	9Kw*3Ph
TEMPERATURE	-130 - +50ºC	-130 - +50ºC	-130 - +50ºC	-130 - +50ºC
PRESSURE	0.5-0.7Mpa	0.5-0.7Mpa	0.5-0.7Mpa	0.5-0.7Mpa
BARRAEL CAPACITY	60L	80L	100L or 120L	150L
EFFECTIVE CAPACITY	20L	30L`	40L`	50L`
WHEEL SPEED	3000rpm - 7200rpm	3000rpm - 7000rpm	3000rpm - 7000rpm	3000rpm - 7000rpm
COOLING MEDIA	Liquid Nitrogen	Liquid Nitrogen	Liquid Nitrogen	Liquid Nitrogen
OPETATION MODE	Touch Screen	Touch Screen	Touch Screen	Touch Screen
FRAME	SUS304 WITH SOME RED PAINT ON CERTAIN AREA
WHEEL DIAMETER	AL φ250mm	AL φ300mm	AL φ350mm	AL φ350mm
BLASTING SPEED	105.7m/s	123.3m/s	143.3m/s	143.3m/s

MACHINE INNER COMPONENT PICTURES
APPLICATIONS
A. O-rings and a variety of irregular rubber parts, adaptable to diverse materials and sizes.
B. Micro electronic components, ensuring rigorous precision and quality.
C. Precision-crafted elastomeric parts, ideal for high-stakes applications.
D. Precision-molded plastic components, illustrating exacting standards.
E. R & D prototype runs, where groundbreaking innovation meets steadfast reliability.
F. Die-cast products such as zinc, aluminum, and magnesium alloys, epitomizing durability and finesse.
FEATURES
Unmatched Efficiency: This machine can substitute the labor of approximately 60-80 workers in flash removal, dramatically enhancing productivity.
Unrivaled Precision: Capable of eliminating the tiniest, most tenacious flashes that manual workers can't remove, it significantly elevates product precision.
Cost-Effective Solution: Providing a more economical alternative to manual labor, it cuts costs while boosting operational efficiency.
