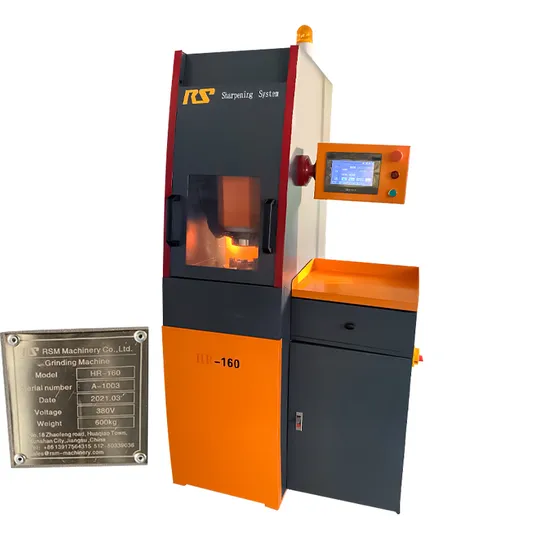

Universal Tool Grinder Automatic Blowing System Turret Punch Grinding Machine

Product Description

Main Feature
1. Wide variety punch press tooling are fully compatible
2. Small dismeter punch can be ground without breakage
3. Rooftop shear grinding by using the graduated tilt fixture and adaptor

Maximum tool diameter	160 mm (6.299") (Type E (4-1/2") die)	Vertical feed fast speed	300mm/min
MInimum tool diameter	1.51mm	Vertical feed slow speed	1.2mm/min
Minimum tool height	150 mm (5.906") (when Type E (4-1/2") shear-angled punchbody jig is used)	Grinding speed	0.06mm/min-0.9mm/min
Standard grinding wheel	Made of CBN and 135 mm (5.315") in diameter (conductive)	Table motor	0.1 KW,4P,1/30
Spindle motor	2.2 KW,2P	Table speed	50 rpm
Spindle rotating speed	2800rpm/50HZ	Coolant motor	0.06 KW 2P
Vertical feed motor	0.1 KW servo motor with 1/12 gear head	Coolant tank	34 L
Vertical travel distance	240mm	Air	0.5 MPa
Weight	500 kg	Machine dimensions	813 × 858 × 1930 mm

FAQ
1.What is your advance? (1)We have ourselves factory. We accept the order if you want to customize products or design the product.
(2)Professional website platform and one-to-one online service.
(3)Various products in low MOQ and competitive prices.
(4)We have a strong R&D team and now we have 52 patents products.
(5)80% exporting products have been sold to Europe,America and Japan, high quality.
2. What's the minimum order quantity? One set is acceptable 3. How about the payment Term? We accept T/T,Western Union,LC 4. What's your port? Shanghai 5. Can we use our own shipping agent?
Yes,you can.We had cooperated with many forwarders.If you ned,we can recommend some forwarders to you and you can compare the price and the service.
6. Can we use our own LOGO or design for sticker?
d,we can recommen Yes,you can contact with the salesman.And sent us more details about the LOGO or sticker.
7. How long is your delivery time?
Generally it is 5-10 days if the goods are in stock. Or it is 15-30 days if the goods are not in stock,it is according to quantity.
