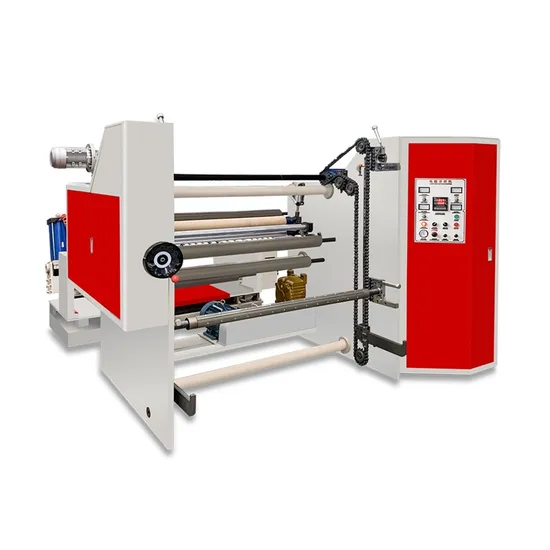

Rotary Automatic Thin Blade Label Fabric Thermal Slitter Scorer Blade Rewinder Machine Film Paper Vinyl Jumbo Roll 1600
Basic Info.
Model NO.
KTSM-H150P
Work Method
Round Knife Cutting
Structure
Cutting Part
Packaging
Case
Classification
Non Woven Fabric Slitting Machine
Applicable Process
Non Woven
Suitable Substrates
Film Cutting
Packaging Material
Wood
Product Name
Product Name
Keyword
Keyword
Keyword 1
Keyword
Keyword 2
Keyword
Keyword 3
Keyword
Keyword 4
Keyword
Keyword 5
Keyword
Keyword 6
Keyword
Transport Package
Car
Specification
1800 × 2100 × 1000mm
Trademark
KETE
Origin
China
Production Capacity
10 Sets/ Month
Product Description
This Paper Slitting Machine Is Suitable for Slitting Paper Jumbo Roll Materials From Big Size To Small Size, It Is High Effective Converting Machine For Paper Bag
Making Machine. Ω Use Round Slitting Knife.
Ω With Auto Length Counting System.
Ω Unwind and Rewind with Tension Control.
Ω Unwind with the EPC Control System.
Ω Unwind and Rewind using the Air Shaft. Ω Electrical Parts use Schneider Brand. Ω Unwind Shaft Type Auto Loading.
Ω Optional: Unwind Shaft-less with Auto Loading.
Ω Optional: Straight Slitting Knife.
Ω
| Model | KTSM-H150P/ 1300 | KTSM-H150P/ 1600 |
| Max. Raw Material Width | 1200mm (47.2") | 1500mm (59") |
| Max. Unwind Diameter | Φ1200mm (47.2") | Φ1200mm (47.2") |
| Max. Rewind Diameter | Φ800mm (31.5") | Φ800mm (31.5") |
| Min. Slitting Width | 30mm (1.18") | 30mm (1.18") |
| Max. Slitting Speed | 150m/min | 150m/min |
| Error | <0.5mm | <0.5mm |
| Paper Core Inner Diameter | 76mm/152mm (3"/6") | 76mm/152mm (3"/6") |
| Total Power | 11kw | 12kw |
| Machine Weight | 3000kg | 3500kg |
| Machine Size (LWH) | 3800 x 2800 x 1800mm | 3800 x 3100 x 1800mm |
| Machine Power | 3 Phase 220 / 380 / 440v 50/60Hz | |
