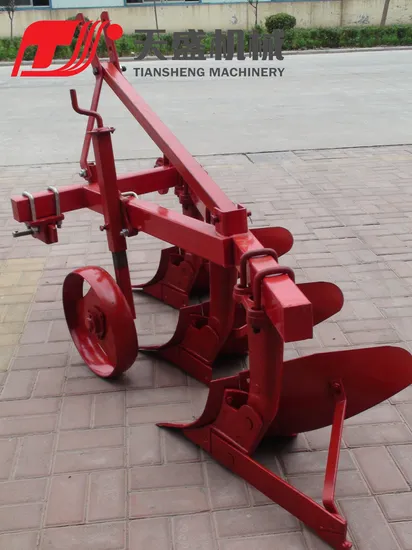

Working Width 0.75m 35-40HP Tractor Mounted 3three Bottoms Moldboard Furrow Share Plow Plough

Product Description

Product Description

SHANDONG TIANSHENG MACHINERY SCIENCE AND TECHNOLOGY CO.,LTD
---The Drafting Unit Of Chinese Standard For Share Plow,Disc Harrow,Disc Plough,FertilizerSpreader

Name:1L Series Of Full Steel Share/Furrow/Moldboard Plough
1L Series share plow is attached to four-wheel tractor ,mainly used for plowing loam,the sand loam,cultivated and dry land .The share plough is manufactured by Shandong Tiansheng Machinery Co., Ltd. the main frame is welded with 16mm thick wall rectangular pipe, and the ploughshare wall is made of high-quality 65mm high manganese steel. After heating treatment, it has good wear resistance, elasticity and other properties, and long service life.
The 20 / 25 / 30 / 35 series plough is equipped with 12-120 horsepower tractor, and is driven by full suspension connection. The machine is suitable for dry land cultivation in loam and sand pulp area. It has simple structure, large cultivation adaptability, excellent operation quality and effect, smooth surface, flat surface and broken soil.
ADVANTAGE:
1. The frame of this agricultural plow is steel plate, which is more strong.
2. This tractor mounted farming plough has high efficiency and productivity
3. The mouldboard plow is in simple adjustment and operation
4. The application scope of the plough is wide.
5. The working width of the share plow is about 40mm,60mm,80mm and 100mm
6. The material of the furrow plough tip is 65 Mn Spring steel.
7. The Working depth of the moldboard plow can be adjusted.

Product Parameters

Model	Unit	1L-225	1L-325	1L-425	1L-525
Working width	m	0.5	0.75	1.0	1.25
Overall weight	kg	75	160	230	290
No. of discs	pcs	2	3	4	5
Matched power	hp	15-25	35-40	40-50	50-70
Linkage		Standard three point mounted	Standard three point mounted	Standard three point mounted	Standard three point mounted
Working depth	mm	150-200	150-240	150-240	150-240

-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Company Profile




After Sales Service

All products enjoy 12 months warranty period. The warranty period is calcualted from the date of bill of lading .For the defect of material or workmanship has occurred in normal operation, The defective parts will be repaired or replaced free of charge. The guarantee parts will be offered to you in two ways.for the urgent request parts, We will ship the spare parts by international courier, The client will assure the courier expense. For the regular claim spare parts, we will ship them together with next order. We provide our clients with genuine spare parts with the highest quality,exact fitness .If needs,please submit your spare parts request to us,and list products name ,description of required parts.we guarantee that your request will be handled quickly and appropriately. We can also provide training services to different users. FAQ
1.Q: Full price list for these products
A: If you need the price list for these products, please notify the product model so that I can quote you accordingly. Please understand we have a very wide product range, we don't usually offer full products price list.
2. Q: Business terms
A: Shipment time: 25-40days after your payment
Shipment: By sea
Loading port: Qingdao port, China
Destination port: ...To be advised
Payment: T/T, L/C
Warranty: 1 year
3.Q:How can I order from you?
A: Please send us your enquiry list; we will reply you within two working days.
4.Q:If the finger I look for are not in your catalogue, what should I do?
A: We can develop it according to your drawing or sample.
Other products
Due to the limited number of pictures uploaded,we have many products that are not on display.
All products are independently developed and manufactured by us.
If you are interested in our factory or our products,feel free to contact me.
