High Quality Wall Plaster Sprayer Spraying Machine with Factory Price

Product Description

High quality wall plaster sprayer spraying machine with factory price
1. Machine Introduce
The machine adopts the principle of leverage, and the symmetrical grinding roller assembly is connected together by a horizontally placed spring through a pull rod. When a large piece of material swings a grinding roller assembly, its radial force can be transmitted to the symmetrical surface through the spring pull rod. The grinding roller assembly is used for balance. Under this condition, the overall stress point of the device is increased by about 40% compared with other products; while the elastic coupling device reduces vibration and noise and avoids resonance.
2. Machine Feature
1. Advanced technology, simple operation and maintenance.
2. Reasonable and humanized design makes the machine beautiful and practical, and it is easy to move. One person can move it back and forth.
3. Practical This machine can not only greatly shorten the construction period, save time and effort, but also avoid the cost and time of scaffolding.
4. The workload of less than 150 square meters per hour can replace the workload of more than a dozen workers every day.
5. The connection between the nozzle and the feeding pipe can be rotated, and the yin and yang corners and the top plate can be sprayed freely, which is easy to operate.
6. Diversified functions, can spray mortar cement, fireproof and heat-resistant materials, dry powder, putty and other materials.
7. The spraying amount is uniform, the power is stable, and there is no intermittent pulse phenomenon, so that the project quality can be guaranteed.
8. Spraying adhesion is strong, no slurry falling, no slipping, no running.
3. Machine Parameter

Product Name	Automatic Plaster Spraying Machine
Model	SC-6	SC-9
Power	4KW (380V)	5.5KW (380V)
Air Compressor Power	3KW	3KW
work efficiency	100m2	180m2
Max working Pressure	50Bar	50Bar
Horizontal Spraying	50m	60m
Vertical Spraying	20m	40m
Hopper Volume	115L	115L
Max Particle Size	6mm	6mm
Max Stuffing Height	900mm	900mm
Total Weight	200kg	230KG
Dimension	1230*720*1550mm	1230*720*1550mm

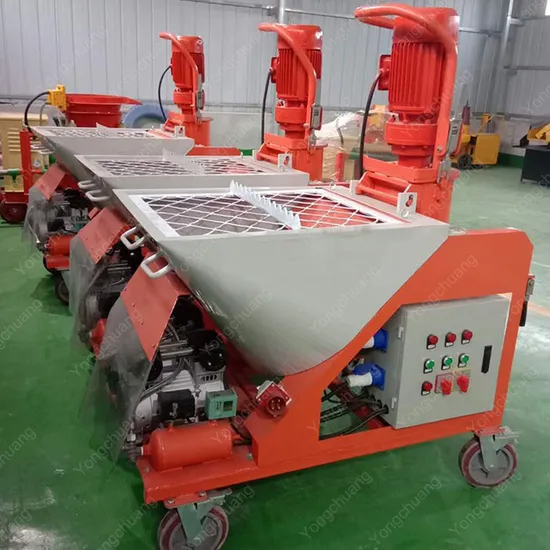

4. Machine Picture
