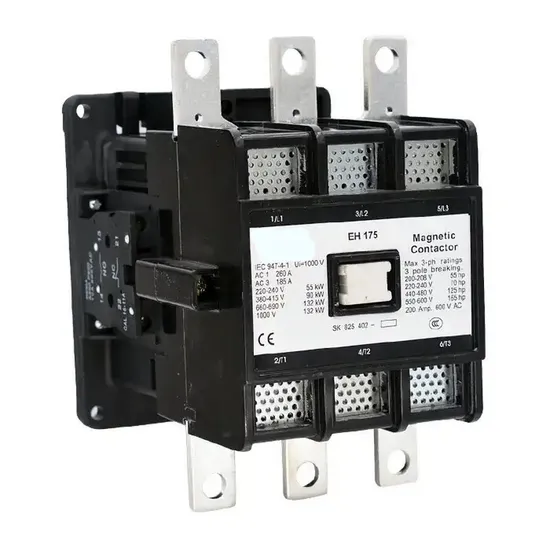

EH80 EH90 EH110 EH145 EH175 EH210 EH260 EH300 EH370 EH450 EH contactor

EH80 EH90 EH110 EH145 EH175 EH210 EH260 EH300 EH370 EH450 EH contactor

US$20.00-200.00 5 Pieces (MOQ)

Basic Info.

Model NO.
EH
Main Circuit Rating Voltage
380V
Main Circuit Rating Current
80A, 90A, 120A, 145A, 185A, 210A, up to 800A00A
Type
Ac Contactors
Standard
IEC947
Controlled Motor Power at 380V/400V
40kw, 45kw, 55kw, 75kw, 90kw, up to 400kw
Main Contact
3no
Auxiliary Contact
2no+2nc, 4no+4nc
Coil Coltage
as Per Customer′s Requirement
Transport Package
Carton
Specification
Please refer to the attachment
Trademark
Own brand
Origin
China
HS Code
8536490090
Production Capacity
100000

Product Description

EH series of AC contactors Product Description EH series AC contactors is mainly used in the electric power circuit of AC 50Hz or 60HZ, rated voltage to 660V, current to 880A for making and breaking circuit. and It can be formed into motor starter with thermal relay or electronic protector for protecting from overload circuit.
Model: EH80, EH90, EH100, EH145, EH175, EH210, EH260, EH300, EH370, EH450, EH550, EH700, EH800, EH1200
3NO main contact (power contact)
Auxiliary contact: 1NO, or 1NC, or 1NO+1NC, or 2NO+2NC, 4NO+4NC.
Product Parameters
EH 80 90 100 145 175 210 260 300 370 550 700 800
Ui (V) 690 690 690 690 690 690 690 690 690 690 690 690
Ith (A) 145 160 200 230 260 300 400 445 550 800 1000 1000
Ue (V) 220 220 220 220 220 220 220 220 220 220 220 220
380 380 380 380 380 380 380 380 380 380 380 380
660 660 660 660 660 660 660 660 660 660 660 660
Rated current Ie (A)
Under interrupted duty		 AC-1 145 160 200 230 260 300 400 445 550 800 1000 1000
AC-3 220V 80 90 120 145 185 210 260 305 400 550 700 750
380V 80 90 120 145 185 210 260 305 400 550 700 750
660V 65 70 120 120 170 210 250 280 370 550 700 750
AC-4 220V 80 80 117 125 146 175 250 250 350 450 630 630
380V 80 80 117 125 146 175 250 250 350 450 630 630
660V 30 35 47 55 66 75 95 95 117 140 185 185
Controlled motor power, AC-3 (KW) 220V 22 22 30 45 55 59 80 90 110 160 220 220
380V 40 45 55 75 90 110 140 160 200 280 370 400
660V 45 59 110 110 132 160 200 250 355 500 600 650
Rated current Ie (A) Under non-interrupted duty 145 160 200 230 260 300 400 445 550 800 1000 1000
Winding power(VA) keep 22 35 40 45 130 130
Close 360 570 800 1050 2100 3160
