High Precision 3 Axis CNC Vertical Machining Center Vmc640 CNC Milling Machine Fabricado En China

Product Description

Product Description

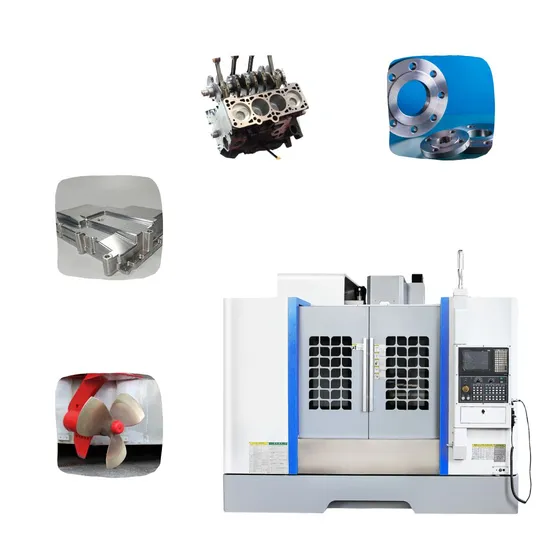

The product is a three-axis servo direct-drive controlled semi-closed loop vertical machining center for the X, Y, and Z axes. All three axes use steel ball rolling linear guides, which have a large load capacity, wide span, and high precision. The structure and external dimensions are compact and reasonable. The spindle is driven by a servo motor through a synchronous belt. It can realize one-time clamping for various types of discs, plates, shells, cams, molds, and other complex parts, capable of performing multiple processes such as drilling, milling, boring, reaming, tapping, and rigid tapping. It is suitable for the production of multiple varieties and small to medium batches of products, meeting the requirements for complex, high-precision part machining. It can be equipped with a fourth rotary axis to meet the processing needs of special parts. Detailed Photos

Machine Type		VMC640
Worktable	mm	800*300
Max Load of Worktable	kg	300
T-slot(number of Tslot x width x pitch)	mm	3-18-90
Travel for X/Y/Z Axis	mm	600*330*400
Distance from spindle nose to table surface	mm	100-500
Distance from spindle center to column guide surface	mm	380
CNC system	(Optional,Please ask for details)	KND1000
Rapid shift of axis of X/Y/Z	m/min	10,10,10
Max cutting feed speed	mm/min	1-6000
Standerd tool quantity	piece	12 Vertical/Horizontal
Tool Max dia./Length	mm	Φ78/150
Tool exchange mode		Pneumatic
Average tool exchange time	sec	Vertical 7s/Horizontal 2.5s
Positioning Accuracy	mm	0.008
Accuracy of repeat Positioning	mm	0.006
Spindle Speed	rpm	8000
Spindle specifications		BT40/Φ120
Drive mode of Spindle		Belt Drive
Motor power of Spindle	kW	3.7
Requirement of air compressing	kg/cm3	≥6
Air pressure flux	m3/min	≥0.3
Integarated weight	kg	2600
Overall Dimention	mm	1900*1400*2100

Workshop
FAQ
FAQ
1.How can I choose the most suitable machines?
Please advice your technical requirements, or workpiece information or just send drawing, we can provide most suitable machine model information to you.
2.What's your main products of your company?
We specialized in all kinds of metal-working machines, such as CNC Lathe Machine, CNC Milling Machine, Vertical Machining Center, Lathe Machines, Drilling Machine, Radial Drilling Machine, Sawing Machine, Shaper machine, laser and so on.
3.Where is your factory located?
Production bases are in Canton, Jiangsu and Shandong.
4.What is your trade terms?
FOB , CFR and CIF all acceptable.
5.What's the MOQ?
1 SET.
6.Are you a manufacturer?
By collaborating of more than 10 years with selected manufacturers that possess different product advantages, integrating foreign demands, we have built out full range high quality product line which enjoy better pricing and lead time while we can execute production monitor and quality assurance, and we provide comprehensive high-quality pre-sales and after-sales services.
7.What's the Payment Terms?
T/T, 30% initial payment when order, 70% balance payment before shipment Irrevocable LC at sight.
8.How to get quotation?Place an order? How about the delivery time?
Just send us an inquiry or contact us with online service / WhatsApp advising your technical requirements or workpiece information, we will revert you shortly with our catalogue , quotation and other details you need. For standard models, lead time is around 30-60 days after payment received.
9.What service we can offer?
1). 12 months warranty.
2). Free technical support online service via email, telephone, video meeting etc.
3). On-site commissioning, testing and training service.
4). Spare parts and consumable parts supply and machine repair service.
5). All of the questions will be replied within 24 hours.
