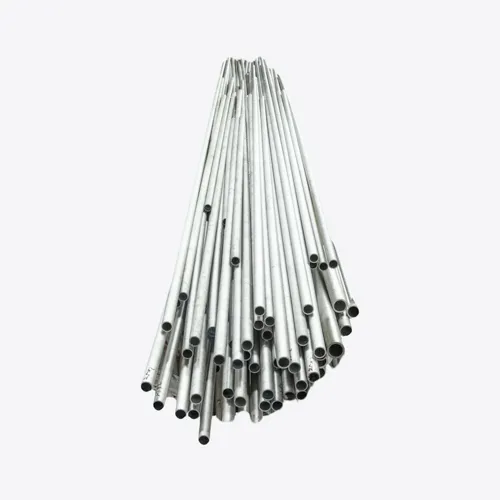

Seamless Titanium Tube and Titanium Alloy Pipe
| US$20.00-100.00 | 100 kg (MOQ) |
Basic Info.
Model NO.
2-508mm
Customed
Yes
Stock
Yes
Seamless
Yes
Heat Exchanger Tubes
Yes
Thickness
0.3-40mm
Type
Titanium Pipes
Application
Industrial, Outdoor, Medical
Technique
Cold Rolled
Grade
GR5
Transport Package
Wooden Box
Specification
2-508mm
Trademark
top alloy
Origin
China
HS Code
8108904090
Production Capacity
5000t
Product Description
Seamless Pure titanium pipe tube with max 508mm OD, produced by SHAANXI RUIYANG IMPORT EXPORT CO., LTD. Ideal for industrial, medical, and outdoor applications. Cold rolled for durability.| Size: | OD2-508*WT0.3~40.0*L200-15000mm |
| Manufacture Standard: | ASTM B338, ASTM B337, ASTM B861,ASTM B862, GOST 22897, JIS H4631 or as per clients' requirements |
| titanium pipe Grades: | GR1,GR2,GR3,GR5,GR7,GR9,GR11,GR12,GR16,GR17 |
| Process methods: | cold rolling |
| Surface delivery conditon | solution annealed and pickled or polished |
Chemical composition:
| Grades | N | C | H | Fe | O | AI | V | Pd | MO | Ni |
| Gr 1 | 0.03 | 0.08 | 0.015 | 0.20 | 0.18 | / | / | / | / | / |
| Gr 2 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | / | / |
| Gr 3 | 0.03 | 0.08 | 0.015 | 0.30 | 0.35 | / | / | / | / | / |
| Gr 7 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | 0.12-0.25 | / | / |
| Gr 9 | 0.03 | 0.08 | 0.015 | 0.25 | 0.15 | 2.5-3.5 | 2.0-3.0 | / | / | / |
| Gr 11 | 0.03 | 0.08 | 0.015 | 0.20 | 0.18 | / | / | 0.12-0.25 | / | / |
| Gr 12 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | 0.2-0.4 | 0.6-0.9 |
| Gr 16 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | 0.04-0.08 | / | / |
| Gr 17 | 0.03 | 0.08 | 0.015 | 0.20 | 0.18 | / | / | 0.04-0.08 | / | / |
Mechanical Properties:
| Material | Tensile strenght(MPa) | Yield strength (MPa) | Elongation(%) |
| Gr 1(CP1 Titanium,Low Oxygen) | >240 | >138 | >24 |
| Gr 2 (CP2 Titanium, standard Oxygen) | >345 | >275 | >20 |
| Gr 3(CP3 Titanium,Standard Oxygen) | >450 | >380 | >18 |
| Gr 7(Titanium,0.12-0.25%Pd) | >345 | >275 | >15 |
| Gr 9(Ti-3AI-2.5V) | >620 | >483 | >10 |
| Gr 11(Ti-Pd0.12-0.25%,Low Oxygen) | >240 | >138 | >24 |
| Gr 12(Ti-0.3%Mo-0.8%Ni) | >483 | >345 | >18 |
| Gr16(Ti+Pd0.04-0.08%,standard Oxygen) | >345 | >275 | >20 |
| Gr17 (Ti+Pd0.04-0.08%,Low Oxygen) | >240 | >138 | >24 |
Length: Up to 15 meters Packing: Seaworthy wooden cases or wooden boxes MOQ: 100KGS for each size Delivery Date: Minimum 10 days Certificates: ISO9001:2000 quality system and Mill test Certificate provided Contact us today for inquiries!
