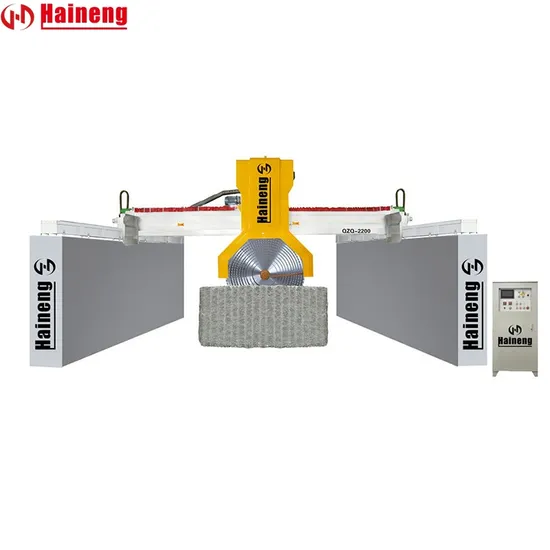

Excellent Quality PLC Granite Marble Block Cutting Machine Slate Stone Cutter

Product Description

Product Description
Guide Combined Block Cutting Machine Guide Column Type uses PLC system and Human-machine Interface, combined with Ultra-high precision rotary encoder to slice, uses inverter to control left-right feeding, adjusts speed according to the stone material. It uses hydraulic lifting system, combination of Chrome-plated guide pin and wear guide bush,with small gap,wearable, beautiful structure, and Guide Sleeve with multi-layer seals, with waterproof,dustproof, anti-spill,improving the service life. Forward-backward slicing uses high-precision screw nut driving, automatic slicing, main spare parts adopt imported good-quality materials; the block can be placed on the ground directly to economize the worktable and its maintenance costs; thus the whole machine is featured with high cutting efficiency, high slicing precision, flatness of plate after cutting, high stability, easy-operating to suit granite and marble block with high value.
Note:360° rotating worktable can be selected if customer requires.

Product Parameters

Guide Combined Block Cutting Machine(Guide Column Type)
Type	unit	QZQ2200-1	QZQ2200-2
Max.saw disc diameter	mm	Φ2200	Φ2200
Max.processing length	mm	2800	3600
Max.processing width	mm	2200	2200
Max.lifting stroke	mm	1350	1350
Power of main motor	kw	37/45	37/45
Total power	kw	47/55	47/55
Water consumption	m³/h	15	15
Dimension (L×W×H)	mm	6900×4300×3700	7800×4300×3700
Total weight	kg	11000	11500

Processing

Partial Control Element
Company Profile
CertificationsExhibitionMarketing SystemCompany information
After Sales Service
1.Parts & Accessories Quick supply for needs
2.Troubleshooting by phone, e-mail, or WhatsApp/Wechat
3.Provide paper or electronic version of the product manual
FAQ
Q:what is the MOQ?A:1 set.Q:How's your machine's quality?A:We are a professional stone machine manufacturer more than 20 years, we've sold lots of machine at home and abroad. We will continuously provide new and old customers more and better services to help your business booming.
90% of our factory's machine are exported, including for the United States, Brazil, Russia,Algeria,Iran, Egypt, Morocco, Georgia, and other more than 10 major purchasers and for more than 20 Chinese trading companies OEM, and we also directly export too, the machines are exported to over 85 countries and regions.Q:What's the warranty time?A:The whole machine is guaranteed for one year, including electrical components and mechanical partsQ:Whether the machine can be customized according to our requirements?A:Customization available,Experienced techs for all your questions.
The factory owner is a mechanical engineer with more than 25 years of design and manufacturing experience. A variety of products have been customized for different customers in more than 20 countries.
