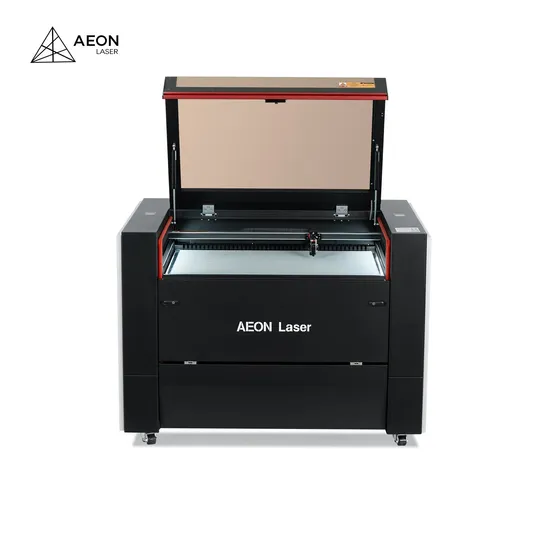

Aeon 1490 Semi-Automatic 80W 100W 130W 150W CO2 Laser Cutter Engraver
Basic Info.
Model NO.
Nova14
Application
Textile Machinery, Woodwork Industry, Advertising Industry, Education
Cooling System
Water Cooling
Technical Class
Continuous Wave Laser
Applicable Material
Nonmetal
Structure Type
Standing Type
Laser Classification
Gaseous Laser
Laser Technology
Laser Flame Cutting
Multiple Interfaces
WiFi USB Ethernet
Advanced Controls
Rd6442
electric up&Down
150mm
Auto Focus
Include
Graphic Format Supported
Ai/Pdf/Sc/Dxf/Hpgl/Plt/Rd/Scpro2/Svg/Lbrn/BMP/JPG/
Max Acceleration Speed
1.8g
Transport Package
Woodbox
Trademark
Aeon Laser
Origin
Suzhou China
HS Code
8456110090
Production Capacity
3000/Year
Product Description
Our Advantages
Product Parameters
| Parameters | Model | Nova10 Super/Elite | Nova14 Super/Elite | Nova16 Super/Elite |
| Working Scope | Working Area (mm) | 1000*700mm | 1400*900mm | 1600*1000mm |
| Z Axis Lifting Space | 200mm | 200mm | 200mm | |
| Max Lifting Capacity | 120KG | 120KG | 120KG | |
| Laser Tube | Laser Tube Power | Glass: 90W/100W RF: 30W/60W | Glass: 90W/100W/130W RF: 30W/60W | Glass: 90W/100W/130W/150W RF: 30W/60W |
| Motion system | Max Engraving Speed | 4000mm/s (Super) 1200mm/s (Elite) | 4200mm/s (Super) 1200mm/s (Elite) | 4200mm/s (Super) 1200mm/s (Elite) |
| Acceleration | 8G (Super) 5G (Elite) | 8G (Super) 5G (Elite) | 8G (Super) 5G (Elite) | |
| Motor | AC Servos (Super) DC Steepers (Elite) | AC Servos (Super) DC Steepers (Elite) | AC Servos (Super) DC Steepers (Elite) | |
| Accuracy | Minimum Font Size(RF Tube) | 1.0x1.0mm | 1.0x1.0mm | 1.0x1.0mm |
| Positioning Accuracy | <=0.1mm | <=0.1mm | <=0.1mm | |
| Configuration | Working Table | Honeycomb + Blade table | Honeycomb + Blade table | Honeycomb + Blade table |
| Cooling system | Glass: Built-in 5000 chiller RF: Air-cooled | Glass: Built-in 5000 chiller RF: Air-cooled | Glass: Built-in 5000 chiller RF: Air-cooled | |
| Fume Exhaust Fan | Built-in 500W (Auto Start-stop) | Built-in 500W (Auto Start-stop) | Built-in 500W (Auto Start-stop) | |
| Air Assist | Built-in compressor 750W with 24L air tank (Auto Start-stop) | Built-in compressor 750W with 40L air tank (Auto Start-stop) | Built-in compressor 750W with 40L air tank (Auto Start-stop) | |
| XY axis fully dust-proof | √ | √ | √ | |
| Auto Focus | √ | √ | √ | |
| Wireless Connectivity | √ | √ | √ | |
| Red Dot Positioning | √ | √ | √ | |
| Material Pass Through Door | √ | √ | √ | |
| Camera | 100° 8 megapixel (3840x2160) | 100° 8 megapixel (3840x2160) | 100° 8 megapixel (3840x2160) | |
| Tooless optical system | √ | √ | √ | |
| Internal Memory | 1G | 1G | 1G | |
| System | Smart Panel (monitoring function) | √ | √ | √ |
| Fault alarm and diagnosis | √ | √ | √ | |
| Operation status light | √ | √ | √ | |
| Water Flow Protection | √ | √ | √ | |
| Water Temperature Alarm | √ | √ | √ | |
| Operating Software | Rdworks/Lighburn(Optional) | Rdworks/Lighburn(Optional) | Rdworks/Lighburn(Optional) | |
| Compatible Design Software | CorelDraw/Illustrator/AutoCAD | CorelDraw/Illustrator/AutoCAD | CorelDraw/Illustrator/AutoCAD | |
| Safety | Laser Class | Class 1 laser product | Class 1 laser product | Class 1 laser product |
| Cover lid interlock | √ | √ | √ | |
| Side panel lid interlock | √ | √ | √ | |
| Key lock | √ | √ | √ | |
| Package | Machine Dimension(mm) | 1500*1210*1125 | 1900*1410*1125 | 2100*1510*1125 |
| Net Weight (KG) | 415KG | 560KG | 566KG | |
| Gross Weight(KG) | 532KG | 683KG | 730KG | |
| Optionals | Rotary Clamp/Lightburn Software /Air Purifier | |||
Application:
Company Profile
Certifications
Exhibitions
FAQ
1. I know nothing about this machine, what kind of machine should I choose?
Just tell us what you want to do by using a laser machine, and then let us give you professional solutions and suggestions.Please tell us this information, we will recommend the best solution.1)Your materials2) Max size of your material3)Max cut thickness4)Common cut thickness2.When I got this machine, but I don't know how to use it. What should I do?We will send videos and English manual with the machine. If you still have some doubts, we can talk by telephone or Whatsapp ande-mail.3.What about the warranty period?Our machine comes with a one-year warranty. Additionally, laser tubes, mirrors, and focus lenses are covered for six months,except for RECI laser tubes, which have a 12-month warranty. Guide rails are under warranty for two years. If any issues ariseduring the warranty period, we will provide free replacement parts.
