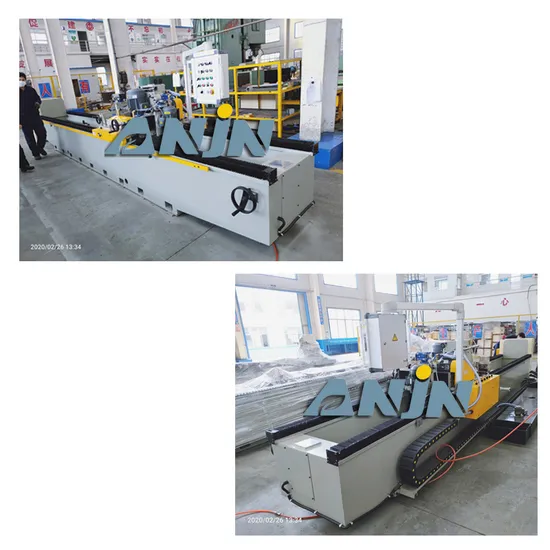

Straight Blade Magnetic Sharpener, Straight Knife Grinder for Industrial, Peeling Knife Grinder

Product Description

Product Description:

Straight blade magnetic sharpener,Straight knife grinder for industrial, Peeling knife grinder :
Main parameter of Straight blade magnetic sharpener,Straight knife grinder for industrial, Peeling knife grinder :

Maximum grinding length(mm)	4500	3500	3000	1500
ANJN Grinder Work table width (mm)	200
Electromagnetic table rotary angle	0°~90°
Main grinding head motor power	7.5kW
Turning angle for grinding wheel	± 8˚
Main grinding head lifting motor power	0.75kW
Oil stone grinding motor power	2×2.2=4.4kW
Main grinding head wheel size	φ255×205×120,Cylindrical type
Grinding head cycle back and forth moving motor	1.5kW
Grinding head cycle back and forth moving speed	0~12.5m/min
Bottom oil stone wheel size	φ125, cup shape
Upper oil stone wheel size	φ100, cup shape
Main grinding head feeding method	Single feed, double feed
Cooling water pump motor power	120W, 3 phase
Permanent magnet separator power	40W,3 phase
Electric lubricating oil pump power	20W,220V
Total motor power	14.4kW
Machine size (mm)	8400×1830×1740	7400×1830×1740	6720×1830×1740	5400×1830×1740

Characters:
High-strength gantry welding mechanism, the overall structure is solid and compact;
inner cavity structure with anti-twist and shock absorption functions,
the internal stress of the bed is eliminated by thermal heat treatment; The rail belt adopts mounted rectangular linear guide rail, and can be replacement, ensuring that the accuracy is not affected by the wear of working;
Two grinding heads, one is rough grinder and another is the fine grinder
Servo motor which make the blade is high precision.
Note:Grinding wheels large amount supply,accept customized. FAQ Q1:Why ANJN? 100% customer oriented solution. 20+ years wood-based industrial team members. Strongest awareness protect customer business privacy. Deep insights&penetrate the tricks on the market. Familiar with international jargon. Attention to detail&integrity allows us to grow. Q2:Could u offer engineer service at sight? Yes,as normal,ours engineer with experienced,and visa services,tickets,and flight. Q3:Can you offer good price with fine quality also? Surely,if without quality,we cannot win long market.we will loose long-terms customers.Quality is our responsibility.we must produce and test machine well.Because we are always expecting long term business. Regarding the price.we are not sure if it is lowest or highest,But we will be offering reasonable.We don't want heavy profits,we want a acceptable price to you,and we are expecting a bigger quantities of sales for different wood machines. Q4:Can you customize products for clients? Yes We can customize products according to the customer's requirements or drawings.At same time,Strongest awareness protect customer business privacy. Q5:What's your warranty? can you do more service for us? we wish would be protected after purchasing machine? We are pleased to give products continuous after sales service. Within 12 months, if spareparts broken,we will response timely. we would like to help to solve any troubles when you use machine at any time.and don't be worried,we will keep opening 24 hours for all customers problem or difficulty. we must help to make solutions within 48 hours.
