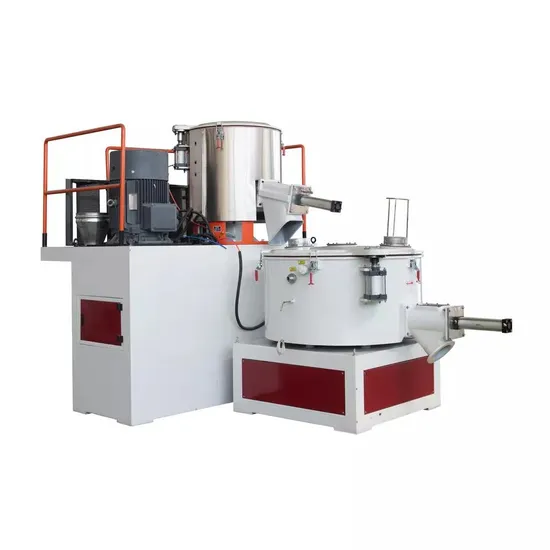

2023year SRL-Z200/500 High Speed Vertical Plastic 200/500 PVC Mixer 200L Hot and 500L Cold Raw Material Machinery Mixer

Product Description

Product Description
CE approved Zhangjiagang city Beierman Machinery PVC powder high speed hot/cool mixing unit specially designed for the plastic mixing,drying, coloring.
there are different models,
vertical type model such as :
SRL-Z100/200, SRL-Z200/500,SRL-Z300/600,SRL-Z500/1000,SRL-Z800/1600,etc.
- high speed mixing motor inverter started
- high speed parts 3 methods temperature increasing: material self-friction/electric heating/conduction oil heating
- material discharge 2 methods: temperature controller automatic release/mixing time control
- the parts contact with raw material are all made of stainless steel 304 and mirror polishing treatment
- the barrel covers and three direct links made of cast aluminum
- the bearing chambers with special designs for the lubricating oil injection
- driving motor over current protection design
- PLC touch screen control system can be choosed for the high automatic control requirement
- special designed mixing axis design can avoiding the raw material leaking from the barrel
- mixing paddles after strict balance test.
SRL-Z200/500 High Speed plastic vertical PVC powder mixer unit
Usage: PVC+CaCO3 powder high speed mixing; PE+Wood high speed mixing; plastic+chemical agent mixing
suitable for plastic pipe factory, plastic profile factory, plastic pelletizing factory
Mixer Volume: hot mixer-200L, effective volume: 150L , 60kg/batch, 4-5batches per hour.
cool mixer-500L, effective volume: 375L,120kg/batch, 4-5batches per hour.
Hot mixer temperature increasing method: raw material self-friction
Cool mixer cooling method: circuit water cooling in barrel jacket
Mixing Capacity: 300-400kg/hour for different formulation and percentage raw materials
Mixing Control: Manual+Auto control, two methods can be revised accordingly
Installation Power hot mixer and cold mixer: 45KW motor+11KW motor, SIEMENS brand
Speed Control Method: AC inverter, ABB brand
Detailed Photos
photos for your reference
Packaging & Shipping

Company Profile
- BEIERMAN MACHINERY was established by three skilled technician/engineer/sales for plastic extruding line, plastic recycling lines producing, sale and services.
- We have 3000 square meters working house for machines making, there are 40 workers for machines producing and a 5 engineers service team for the machines running test, installation, workers training and machines repairmen.
- we have already get CE certificate for our machines and factory, which ensured the high quality level of all machines we are producing
- we will attend several home and abroad plastic machines industry fairs to show the customers our quality, machines and services.
- there will be 1-2 new produced machines will be showed to the customers every year.
- we already established cooperation with the customers from Middle East, Southeast Asia and south America countries. We Beierman Machinery can supply major machines as below 14items:
1,Mixing unit (Vertical , or Horizontal),high speed mixer~~~for PVC powder;
Ribbon mixer, low speed mixer~~~for PVC powder;
Hopper dryer mixer~~~for plastic granules;
Color mixer~~~for plastic granules.
2, PC LED light diffuser,bottom tube making line.
3, Supermarket Price tag profile production line; Soft seal production line; Rigid rod production line.
4,Single screw extruder;
5,Conical twin screw extruder;
6, 2layer; 3 layer;4 layer PPR pipe co-extrusion line; PPR, PE, HDPE, PE-RT pipe production line;
7, Corrugated pipe extrusion line (Single wall corrugated; Double wall corrugated);
8, 3 layer PVC pipe co-extrusion line; PVC pipe production line;
9, PVC 2 cavity pipe production line;
10, PVC 4 cavity pipe production line;
11,Pipe belling machine;
12, PVC rain gutter profile line; Trunking/panel profile line;WPC profile production line; and 2 layer PVC profile co-extrusion line;
13, Granulating line-water ring granulating,or string granulating (PP PE );
14, Granulating line-hot die face granulating (PVC).
After Sales Service
Pre-sales services
we will take customers to visit our factory and check the machines quality from airport/bus station/train stations
- we will re-designed the machines according to customer's different raw material formulations: driving motors power, electric power model, wall thickness of barrel, control method
After-sales services we will offer electric diagram, installation diagram, usage manual
- we will offer the customers online introduction to solve the machines problems/send engineers for customers machines installation, running test, workers training, machines repairmen services.
- we will offer customers spare parts at cost prices all life long of the machines.
