High Output Marble Polishing Machine Manufacturer

Product Description

wanlong high output marble polishing machine manufacturer
Product Description
Applicable for polishing the surface of granite slabs and tiles.
Automatic polishing machine of newly design, which absorbs the most advanced technology of granite polishing and has created several patent technologies.
Superior material, reasonable structure, completed processing technique, stable performance, high efficiency and energy saving.
Electric parts are of worldwide brand. PLC control system and friendly human
-machine interface via LCD to achieve computerized control.
Automatically detect the slab profile by laser scanning device.
Sensitive collision avoidance of polishing head.

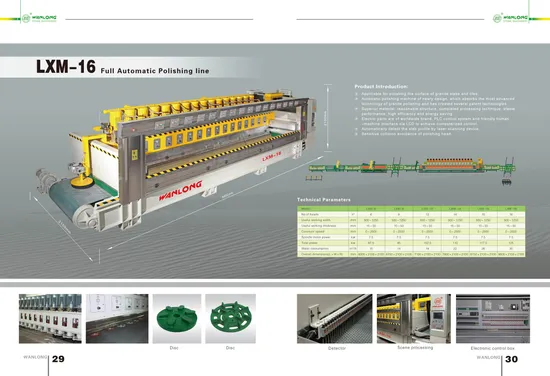

LXM-6 LXM-8 LXM-12 LXM-14 LXM-15 LXM-16

Polishing Heads number (optional)	pc	6	8	12	14	15	16
Working width (optional)	mm	500-1250	500-1250	500-1250	500-1250	500-1250	500-1250
Thickness	mm	15-50	15-50	15-50	15-50	15-50	15-50
Air Consumption	m³/h	\	\	14	19	24	29
Main motor power	KW	7.5	7.5	7.5	7.5	7.5	7.5
Dimensions (L x W x H)	mm	6000*2100*2100	6700*2100*2100	7100*2100*2100	7800*2100*2100	8150*2100*2100	8600*2100*2100
Main motor power	KW	87.5	95	102.5	110	117.5	125
Total weipht	m³/h	10	14	18	22	26	30

Advantages
1, Auto Lubrication System for Polishing Heads and Key Bearings!
2, PLC Intelligent Control System! Warning Device for Polishing Material Wearing!
3, Imported Electric Parts: SIEMENS Motor and Switch, FUJI Contactor, Japan Yaskawa Inverter
5, Auto Detector for Slab Size
6, Unique Damping Device for Polishing Heads
7, AIRTEC Air Cylinder, Germany Technology, TAIWAN Produced
8, Independent Switch Gear for Each Polishing Head Pressure Adjustable for Each Head
9, TAIWAN Linear Guide Rail for Crossbeam Back and Forward Movement.
10, Anti-collision Device for Crossbeam Back and Forward Movement While Limit Switch be out of order
11, With Slab Loading and Unloading Trolley! Cleaning Head and Dryer

LXM-16 Output: 30-35m2 per hour for 85 degree Shinning!
LXM-20 Output: 35-40m2 per hour for 85 degree Shinning!
More details about 20 heads Granite fickert type automatical line polisher
