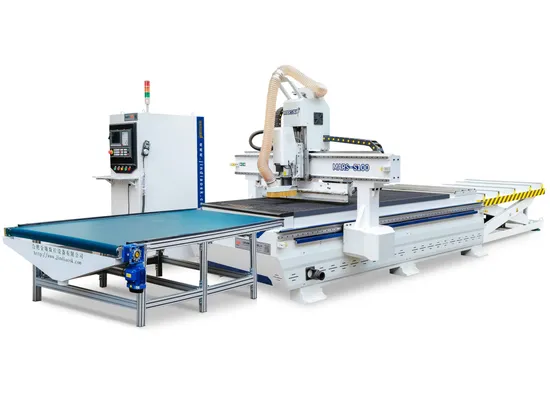

12 Linear Automatic Tool Change Machining Center Woodworking Router with CE
| Negotiable | 1 Piece (MOQ) |
Basic Info.
Model NO.
S100
Application
Wood & Glass
Process Usage
Metal-Cutting CNC Machine Tools, Wood CNC Router Machine
Movement Method
Linear Control
Numerical Control
CNC/MNC
Certification
CE, ISO 9001
Condition
New
Working Area
1230*2450*200mm
Transport Package
Layers of Wrapping Film & Ponchos / Plywood Box
Specification
12 tools storage
Trademark
Mars
Origin
China
HS Code
8465990000
Production Capacity
300 Set/M
Product Description
S100 MARS ATC Wood CNC Machine w tool change spindle Wood RouterKeypoints: 20 years experience of production
ISO9001:2008, CE, SGS, AAA Level Enterprise which Honors Contract
Three Brands: Mars, Golden Eagle, Boiro
Technicist who go abroad to offer after-sale service
Technical Parameters:
| Model | S100 |
| Working Stoke | 1230*2450*200~300mm |
| Body Structure | Thick-walled steel tube welded |
| Spindle Power | HSD 9KW air cooling spindle |
| Tool Magazine | 12 linear tool magazine |
| Spindle Speed | 0 ~ 24000 rpm/min |
| Control System | Syntec/ Osai/Delta |
| Drive System | Yaskawa/ Delta servo motor |
| Lubrication System | Automatic |
| Transmission | XY axis rack and pinion, Z axis ball screw |
| Guide Rail | Taiwan Hiwin linear rail |
| Vacuum Pump | 5.5KW |
| Max Travelling Speed | 80m/min |
| Max Processing Speed | 30m/min |
Functions: The functions of this machine include cutting,milling,drilling,slotting,chamfering,punching, engraving & other auxiliary processing.
Standard Accessories: Applicable Scope: Cabinet doors, wooden doors, solid wood, panels, doors, windows, tables, chairs, folding screens, waved plate, large wall hangings,
advertising boards, sign makings
Applicable Materials: Artificial stone, wood, bamboo, marble, organic board, color plates and other materials. Samples: Similar Products:
