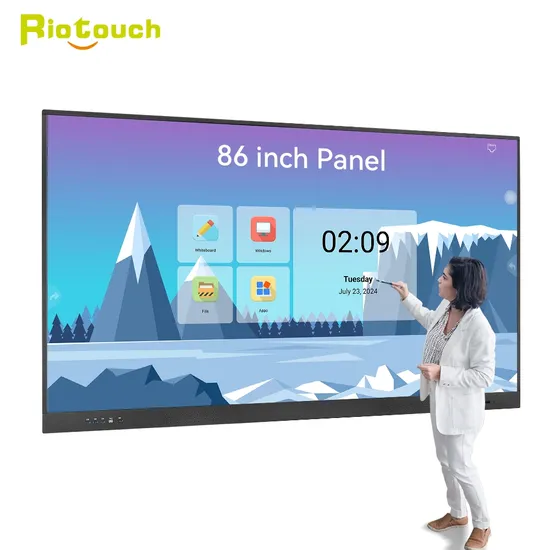

Riotouch Android Touch Board Teaching Smart Board Whiteboard Interactive Flat Panel
Basic Info.
Model NO.
Adv100
Using Type
Movable With Rack
Material
Enamel
Sides
Double Sided
Folded
Unfolded
Panel Type
Ultra HD Direct Type LED
Resolution
3840*2160 /60Hz
Hardness Glass
Mohs-7 Level
Glass Panel
Anti-Glare Glass with Zero Bonding
Aspect Ratio
16:9
Contrast Ratio
1200:1 (Type)
Dynamic Contrast Ratio
4000:1
Specification
212*23*132
Trademark
Riotouch
Origin
China
Production Capacity
10000/Year
Packaging & Delivery
Package Size
258.00cm * 488.00cm * 159.00cm
Package Gross Weight
53.000kg
Product Description
Product Description
| Display specification | |||||
| Diagonal display size | 65(inch) | 75(inch) | 86(inch) | ||
| Bezel color | Aluminum frame(Black color) | √ | √ | √ | |
| Panel type | Ultra HD Direct type LED | √ | √ | √ | |
| Active area (mm) | 1428.48 (H) * 803.52 (V) | 1649.66 * 927.93(V) | 1895.04 * 1065.96(V) | ||
| Resolution | 3840*2160 /60hz | √ | √ | √ | |
| Pixel Pitch | 0.372mm x 0.372mm | 0.429 mm x 0.429 mm | 0.4935 mm x 0.4935 mm | ||
| Hardness Glass | Mohs-7 level | √ | √ | √ | |
| Glass Panel | Anti-Glare glass with zero bonding | √ | √ | √ | |
| Aspect Ratio | 16:9 | √ | √ | √ | |
| Contrast Ratio | 1200:1 (type) | √ | √ | √ | |
| Dynamic Contrast Ratio | 4000:1 | √ | √ | √ | |
| Brightness | 350cd/m2 | √ | √ | √ | |
| Color depth | 1.07 billion colors | √ | √ | √ | |
| Viewing angle | 178° | √ | √ | √ | |
| Lifespan | 50,000 hours | √ | √ | √ | |
| Touch Type | |||||
| Touch Technology | IR touch | √ | √ | √ | |
| Multi Touch | Max 40 points(Windows) | √ | √ | √ | |
| Multi Writing | Max 20 points(Windows) | √ | √ | √ | |
| Touch Precision | 1 mm (over 90% Area) | √ | √ | √ | |
| Auto-Calibration | Yes | √ | √ | √ | |
| Anti-light | Yes | √ | √ | √ | |
| Minimum object size | 2mm | √ | √ | √ | |
| Touch Response Time | First Point <2 ms, Continuation <8 | √ | √ | √ | |
| Supporting OS | Windows 7/8/10/11; Android; Mac; Linux; Chrome OS | √ | √ | √ | |
| Sound | |||||
| Speakers | 2.0(2.1 option) | √ | √ | √ | |
| Front Speakers | 15W*2 (20W*2 option) | √ | √ | √ | |
| Subwoofer | 20W*1 option | √ | √ | √ | |
| Total Power Amplifiers | <=60w | √ | √ | √ | |
| Microphone (option) | |||||
| Type | wide-area microphones | √ | √ | √ | |
| Number of Microphones | 8 | √ | √ | √ | |
| Auto switch (Windows/Central) | Yes | √ | √ | √ | |
| Disconnectable | Yes | √ | √ | √ | |
| camera (option) | |||||
| Number of images | 1300M(800M/4800M option) | √ | √ | √ | |
| Maximum resolution and frame rate | 4208*3120(30fps) | √ | √ | √ | |
| FOV(field of view) | 120 | √ | √ | √ | |
| Front Side Connections | |||||
| Front Ports | USB3.0 * 3 lines (Public for both Android & PC) ; Touch out USB B type * 1 line; HDMI in 2.0 * 1 line;USB-C *(full function) 1 line | ||||
| Front Keys | Power on/off; Signal source; Return; Main page; Menu; Volume down; Volume up | ||||
| Bottom Side Connections | |||||
| HDMI OUT | 1 | √ | √ | √ | |
| RJ45 IN | 1(RJ45, 100 Mbit/s) | √ | √ | √ | |
| AV IN | 1 | √ | √ | √ | |
| YPBPR | 1 | √ | √ | √ | |
| AV OUT | 1 | √ | √ | √ | |
| Earphone | 1 | √ | √ | √ | |
| Touch USB | 1 | √ | √ | √ | |
| VGA Audio IN | 1 | √ | √ | √ | |
| VGA IN | 1 | √ | √ | √ | |
| SPDIF OUT | 1 | √ | √ | √ | |
| HDMI IN | 2 | √ | √ | √ | |
| USB 3.0 | 1 | √ | √ | √ | |
| USB 2.0 | 1 | √ | √ | √ | |
| TF CARD | 1 | √ | √ | √ | |
| RS232 UART | 1(DB9) | √ | √ | √ | |
| WiFi Standard | Wi-Fi 5(2.4G+5G) | √ | √ | √ | |
| Bluetooth version | 5.0 | √ | √ | √ | |
| Riotouch Central | |||||
| Android Version | Android 12.0(Upgradeable Android 14.0) | √ | √ | √ | |
| Chip | GK6780v100 | √ | √ | √ | |
| CPU | High-End (8 Cores-A55) 1.2GHz | √ | √ | √ | |
| GPU | High-End (Mali-G52 MP2(2EE)) | √ | √ | √ | |
| Memory | 4GB 8GB DDR4 | √ | √ | √ | |
| Storage | 32GB 64GB 128GB | √ | √ | √ | |
| Compliant with | Windows; Mac; Linux; Chrome OS | √ | √ | √ | |
| Over-the-Air Updates (OTA) | YES | √ | √ | √ | |
| NFC Reader/Writer | option | √ | √ | √ | |
| Motion Sensors | option | √ | √ | √ | |
| Light Sensor | option | √ | √ | √ | |
| Air Quality Monitoring | option | √ | √ | √ | |
| Temperature Sensor | option | √ | √ | √ | |
| Expansion Board (Optional in the Rear side) | |||||
| HDMI IN | 1 | √ | √ | √ | |
| DP IN | 1 | √ | √ | √ | |
| VGA IN | 1 | √ | √ | √ | |
| AUDIO IN | 1 | √ | √ | √ | |
| USB-B (touch) | 1 | √ | √ | √ | |
| USB-C | USB 2.0 communication * 1 line | √ | √ | √ | |
| USB 3.0 | USB3.0 * 2 lines (Public for both Android & PC) | √ | √ | √ | |
| General Information | |||||
| Power Supply | ~ 100-240 V (50/60Hz) | √ | √ | √ | |
| Switch On / Off | Yes | √ | √ | √ | |
| Standby Energy Consumption | ≤ 0.5 Watt | √ | √ | √ | |
| Power Consumption | Maximun< 290W Eco<75W | Maximun< 420W Eco<75W | Maximun< 500W Eco<75W | ||
| Net Weight | (KG±2) | 40 | 51 | 65 | |
| Gross Weight | (KG±2) | 50 | 63 | 80 | |
| Screen Dimensions | (WxDxH) | 1470.9 *97.5* 897.5 mm | 1692.1 *97.5*1021.9 mm | 1943.4*97.5*1166 mm | |
| Dimensions Package | (WxDxH) | 1622 * 222 * 1044 mm | 1842 * 222 * 1166 mm | 2090 *222 * 1307 mm | |
| VESA Standard | (mm) | 600*400 mm | 600*400 mm | 800*600 mm | |
| Certifications | CE: EMC + LVD / RoHS / REACH / FCC/CCC | √ | √ | √ | |
| Warranty | ONE year for the whole product and THREE years for touch parts by default. (can be extended, it's for an option) | √ | √ | √ | |
| Environmental conditions | |||||
| Operating Temperature | 0ºC - 38ºC/32 - 100 F | √ | √ | √ | |
| Storage Temperature | -20ºC - 60ºC/-4 - 140 F | √ | √ | √ | |
| Storage Humidity | 10 % - 90 % | √ | √ | √ | |
| Usage Humidity | 10 % - 90 % | √ | √ | √ | |
| Accessories | |||||
| Accessories | No ink pen * 2pcs, Remote control *1pc, 1.5m power cord *1pc, 1.5m HDMI cable *1pc, 1.5m USB touch cable *1pc; wall mount kit | ||||
