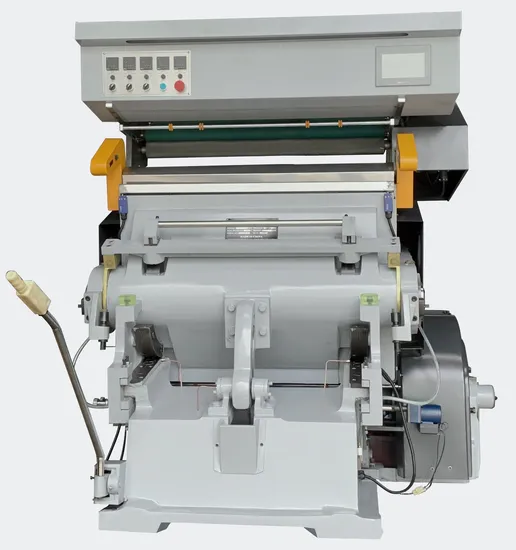

Tymc-1040 Factory Directly Foil Stamping Die Cutting Machine and Creasing Machine for Sale

Product Description

Product Description
Manual hot foil stamping and die cutting machine is the ideal equipment for stamping and die cutting all kinds of paperboard, leather, and plastic and so on. This machine is the ideal equipment for printing factories.
Manual Foil Stamping Machine is one kind of basic stamping machine for sampling and customized product. Increasing and decreasing temperature accurately, changing stamping plate easily, operating easily and perfect protection system are the main reason which can win the market. it is also the perfect model in embossing and creasing, suitable for many kinds of different weight cardboard.Product Parameters

Specification
Model	TYMC-1040
Max. inside chase size (mm)	1040× 720
Max. stamping size (mm)	1000×700
Speed (sheets/min)	23± 2
Groups of feeding foil	3
Max. foil advance (mm)	720
Leapfrog frequency	0-99
Adjustable temperature (ºC)	10-200
Zones individually heated	5
Heating capacity (kw)	12.5
Total power (kw)	17
Motor power (kw)	5.5kw
Gross weight (kg)	3800
Dimensions(L× W× H) (mm)	1850×1750×2150

Detailed Photos
Highest strength casting iron
3 shafts transmit ensure the high working pressureAutomatic centralized lubrication system from USA Bijur, with momery function and longtime lifetime
Oil distribution valve
The frequency of lubricate can be adjusted according to your working.
Easier for maintenance CE standard electric system
All the electrical components are from world famous supplier; Siemens, Panasonic, Omron Micro adjustment device in connect rod, fast for set up.
QT550 casting iron to ensure the strength of connect rod Omron Infrared sensor to protect the operator safety, it is sensitive and reliable. Vertical overhead electrical cabinet to save space and easy operation. Certifications
Packaging & Shipping
Company Profile
Wenzhou ZensenMachinery Co., Ltd. as a professional printing and packaging machines manufacturer,was established in 2003. More than 15 years of experience in Post-press die cutting &hot foil stamping, and laminating machine.
Zensen consists of Technical Development Department, Manufacturing Department, Domestic and International Sales Department and After-Sales Service Department. We have more than 90 employees, including 30 senior engineers in the R&D center. Over the past 15 years, Zensen hasbeen committed to the R&D of high and new technologies and manufacturing of products, constantly introducing the most advanced foreign technologies, andcombining with the rich experience and leading manufacturing techniques ofdomestic senior engineers to build and launch a new generation of high-efficient pre and post-printing equipment.
Through our continuous research and developing advanced skills, Zensen has firmly established itself as a dependable supplier of China. No matter whether you arelooking for a single machine or a whole production line, you can get outstanding machines. As every Zensen machine is quality proved, superior indesign and produced as per the highest quality standards. Before leaving ourfactory, it is tested and retested for performance,productivity and durability. Because of good quality and service, we have won agood reputation among domestic and international customers.Now, we have successively passed the ISO9001 system certification, CE certification and other professional quality certifications.Our products sell well in America, Spain, Asia (such as India, Thailand, Vietnam, Indonesia,Malaysia, Sri Lanka), the Middle East, Europe (Russia,Bulgaria, Croatia, Romania, Spain, Italy), Africa (Nigeria, Guinea, Congo) and South America.
We hope to establish good and long-term business cooperation with customers from all overthe world. If you have any inquiries about our machines, please feel free tocontact us.We sincerely welcome Clients from China and abroad to join hands with Zensen and march towards successful together!
Welcome to contact us.
