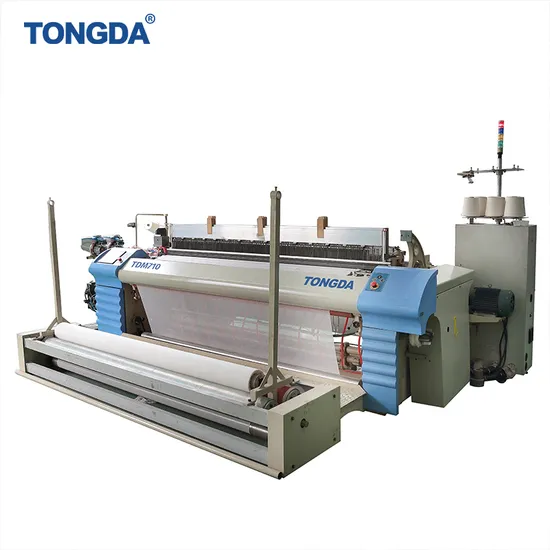

Tongda TDM-710 High Speed Cotton Fabric Air Jet Loom Medical Gauze Weaving Machine

Product Description

Medical Gauze Production Line
Medical gauze loom TDM-710 is suitable for making all gauze fabrics and baby products.
Stable Operation
This machine adopts box type side frames, beam and the middle brackets, which formed the high strength frameworks to make looms high speed running more stable.
Weft Insertion System
This machine adopts profiled reed, and the main and sub nozzle to get smooth weft insertion channel and make weft insertion more stable. Equipped with new type energy-saving weft insertion system, which can shorten air path, increase jet sensitivity and reduce air consumption.
Beating-Up Mechanism
Optimally-designed 4-link rod beating-up mechanism is of short stroke and small vibration, and can effect strong beating-up while high-speed operation, suitable to high-speed narrow loom.
Double Weft Feeler
Adopt double-feeler type not only for short weft,but also for Iong weft and broken weft; utilize digital control technology and intelligent signal processing to enhance feeling accuracy and reliability.
Automatic Dividing Pick Storer
Adopt automatic dividing pick storer to avoid yarn intertwist, suitable for all kinds of yarn; weft sensor is fixed on the pick storer to raise the success rate of weft insertion; adopt permanent magnet brushless DC motor control to reduce energy consumption, increase the reaction speed and make the system more stable.
Automation
Large screen liquid LCD,with functions of parameter setting, automatic control, automatic monitoring and self-diagnosis; automatic shed finding and USB data interface.

Main technical parameters

Reed space	Nominal reed space 170, 190,210,230, 280,340 (cm)
Weft option	Single-nozzle,double-nozzle
Power	1.8kw, 2.2kw, 2.8kw, 3.7kw.
Applicable speed	400-600rpm
Weft intertion form	Main nozzle,auxiliary nozzle combined type;electromagnetic valve control, profile reed weft insertion.
Shedding	Crank shedding
Let-off	Mechanical or electronic let-off, applicable beam flange dia.ф600mm or ф800mm.
Weft storer	Electronic length weft storer
Selvedge	Rough edge or plain edge, by planetary gear
Weft cutting	Mechanical cutter
Take-up form	Mechanical or electronic type,the machine winding dia.Ф520mm; optional winding dia. outside the machine up to Ф1200mm.
Air supply	Individual air supply,can choose single air pump or the main and auxiliary double pump; can choose central air supply.
Auto stop motions	Weft protector:2 photoelectric type weft feelers; warp protector:contact lever type;
Touch screen control	Can display various fault causes; display various production information. Multi-function 4-color lamp.

FAQ
(1) Q: Why Choose Our Company?
A: History: TONGDA Textile Machinery Group was establish in 1952. Now have more than 65 years old history. Main Products: TONGDA Group specializes in design, manufacturing, and marketing of a wide range of Textile machinery, it has seven branch companies, mainly produces ring spinning frame, roving frame, weaving machine (water Jet loom/Air jet loom/rapier Loom), warping machine, quilting machine and nonwoven machine. We provide design for complete line of spinning mill for cotton yarn, polyester yarn, wool yarn, flax/linen yarn, machines including blow room, carding machine, draw frame, roving frame, ring frame, winding machine, open end spinning machine and the air conditioning system and waste collection system for spinning mill. We also provide workshop layout design and trench design, and air pipe layout design.
(2) Q: How's the after-sale service?
A: We offer engineers available to service overseas under merchandiser's supervision and translation.
(3) Q: Are you available for on-the-spot invitation?
A: We do welcome our new and old friends come here to have a visitation. Besides, we would send you our exposition and relative information to promote a face-to-face meeting if you'd like to.
(4) Q: Is the price offered changeable?
A: We offer reasonable price for every client, and the price is changeable according to purchasing amount.
(5) Q: How about the quality?
A: The main subassembly and raw materials are all supplied by large companies. Key parts are research and developed by our own staff. Professional assembly line work and strict quality test system can ensure your high quality requirement.
(6) Q: Are you a manufacturer or Trade Company?
A: We are a professional manufacturer holding our own International Trade Department, for that we can better understand customer's needs and offer a reasonable price.
(7) Q: Product /Quality Guarantee and After Sale Service?
A: 1 year warranty for the International standard. We are work online 24 hours. If you have any questions about our machine you can contact us.
(8) Q: One-stop Service:
A: We have R&D department including more than 100 engineers which are improving and enlarging our supply range.
(9) Q: Certification?
A: TONGDA is an ISO9001, ISO14001, and ISO13485 company. The products are designed to meet the technical standards of 3C and CE. All the products are certified by the Industry Administration Authority. TONGDA will continue to strive to be a stronger leader in the global market of Cotton machinery and Spinning machinery.
