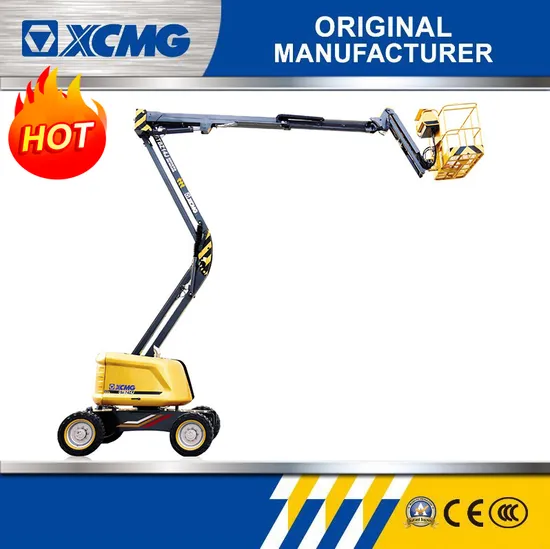

XCMG Official Used Hydraulic Vertical Platform Lift 14m Gtbz14jd Hydraulic Manlift for Sale

Product Description

XCMG Used Hydraulic Vertical Platform Lift 14m Gtbz14jd Hydraulic Manlift for Sale 14m-level articulated boom aerial work platform aiming at meeting customer demand has intelligent and perfect control system, adopts humanized layout and lubrication-free design, is easy for use and maintenance and provides comprehensive safety protection and abundant configuration options.
(1) Flexibility and efficiency"Σ-type"double link jib has characteristics of compact structure and flexible extension, which can achieve vertical lifting and horizontal extension and has very strong obstacle climbing ability;180° rotatable platform provides bigger operation range; Narrow-type rotary table with compact structure canachieve"zero tail wagging"and improve operation efficiency(2) Super strong site adaptabilityCross-country type chassis,four-wheel drive system, pouring-type cross-country wide tyre,full-time axle balanced system and 38kw strong power are configured so that the equipment has excellent terrain adaptability.(3) Advanced performance, safety andreliabilityFull-range operation, visual and friendly control panel and easy operation; Electro-hydraulic proportional system control is accurate and efficient. Protective measures such as chassis incline protection, platform overload alarming, emergency landing,safety speed limit, flexibility start-stop technology, etc. are provided.
[Product Parameter]

Item	Parameter
Overall Length(mm)	6690
Overall Width(mm)	2260
Overall Height(mm)	2130
Wheel Base(mm)	2100
Maximum Working Height(m)	15.75
Maximum Platform Height(m)	14.05
Maximum Working Range(m)	8.22
Maximum Load Capacity(kg)	230
1st Boom luffing Range(°)	0~+60
2nd Boom luffing Range(°)	-8~+75
Crank Arm Luffing Range(°)	-60~+80
Rotation Angle of Rotating Platform(°)	355
Platform Size(mm)	1830*760*1150
Platform turning angle(°)	180
Total Weight(kg)	6900
Maximum Travel Speed(km/h)	6.1
Minimum Turning Radius(m)	4.5
Minimum Ground Clearance(mm)	250
Maximum Grade Ability(%)	45
Tire Specification	315/55D20
Engine Model	Perkins404D-22
Rated Power of Engine(kW/(r/min))	38/(3000)

[Product Picture]
[Company Information]
[FAQ]
1: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted.
2: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC.
3: What about the delivery time?
A: 7-30 days after receiving the deposit.
4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.
5. What about the Minimum Order Quantity?
A: The MOQ is 1 pcs.
