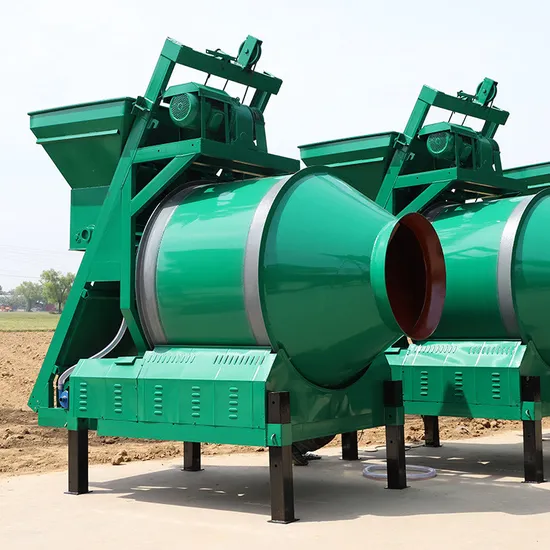

China Factory Price Jzm500 Friction Drive Diesel and Electrical Concrete Cement Mixer Machine with Pump

Product Description

Product Overview
Product Parameters
JZM is a kind of self-fall bi-pyramid reversal discharging mixer machine. The gear ring of mixing drum turns, forward mixing,and reverse discharging. The mixer can mix plastic concrete and low flow concrete. It is used in common construction sites, for example, the construction of road, bridge, and in small and medium-sized concrete component factory.

Model	JZM350	JZM450	JZM500
Discharging capacity	350L	450L	500L
Charging capacity	560L	720L	800L
Capacity	14m3/h	16-18m3/h	18-20m3/h
Drum rotating-speed	13r/min	14r/min	15.7r/min
Max. aggregate size	60mm	60-80mm	60-80mm
Water feeding precision	≤2%	≤2%	≤2%
Gear pump pressure	20MPa	20MPa	20MPa
Tire specification	6.50-16	6.50-16	6.50-16
Max. dragging speed	20km/h	20km/h	20km/h
Dimension (L*W*H, mm)	2900*2270*2900mm	3000*2270*2900mm	4520x2300x2900mm
20'GP	3PICS	2PICS	2PICS
40'HC	6PICS	5PICS	5PICS
Total weight	1600kg	1800kg	2200kg

Features
Product Detailes
Mixing motor
Adopt electric motor for power supply.
Hoisting Motor
Assemble with wire rope, the hoisting motor can promote the loading and unloading of the hopper.
Water Pump Motor Adding a water pump for water circulation between water tank and water radiator, keep the water temperature to be stable.
Gear Ring Assemble gear ring around the external surface of the mixing drum. Low noise, Low energy consumption, no slip in rainy weather,easily operate.
Lifting Bucket
Assemble lifting bucket, which mouth is lower than ground, be conveniently for aggregate loading and feeding.
Tyres
JZC concrete mixer are installed 2 tyres for simple moving. No silp in rainy weather.
