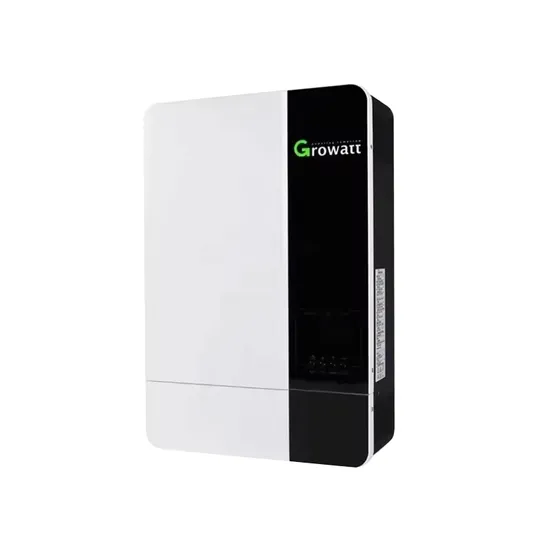

Growatt SPF 5000 Es off Grid Solar Inverter 48V 24V 5kw Solar Inverter

Product Description

Product Description

Growatt SPF3500~5000ES is 230VAC output voltage off-grid inverter for backup power and self-consumption application, maximum PV input voltage up to 450VDC. also it can work without battery to saving system investment cost. Features of Growatt SPF3500~5000ES Off Grid Inverter 1. Integrated MPPT charge controller. 2. Equalization charging function. 3. Work with battery or without battery. 4. Maximum PV input voltage up to 450VDC. 5. Configurable grid or solar input priority. 6. Optional WIFI/ GPRS remote monitoring. 7. Support parallel operation for capacity expansion up to 30kW. 8. PV and Grid power the load jointly if PV energy unsufficient. 9. Flexibly schedule the Inverter charging and discharging time.

Wiring DiagramParallel Operation in Three Phase:
One Growatt SPF Off Grid Solar Power Inverter in each phase: Power Connection
Parallel Operation in Three Phase:
One Growatt SPF Off Grid Solar Power Inverter in each phase: Power ConnectionThere are more inverter connection example in user manual, such as six solar power inverter in parallel, three inverter in one phaseand only one inverter for the remaining two phases.
Product Parameters

Output data (AC)	SPF 3500 ES
Battery Voltage	48VDC
Battery Type	Lithium/Lead-acid
INVERTER OUTPUT
Rated Power	3500VA/ 3500W
Parallel Capability	Yes, 6 units maximum
AC Voltage Regulation (Battery Mode)	230VAC ± 5% @ 50/60Hz
Surge Power	7000VA
Efficiency (Peak)	93%
Waveform	Pure sine wave
Transfer Time	10ms typical, 20ms Max
SOLAR CHARGER
Maximum PV Array Power	4500W
MPPT Range @ Operating Voltage	120VDC ~ 430VDC
Maximum PV Voltage	450VDC
Maximum Solar Charge Current	80A
AC CHARGER
Charge Current	60A
AC Input Voltage	230 VAC
Selectable Voltage Range	170-280 VAC ; 90-280 VAC
Frequency Range	50Hz/60Hz (Auto sensing)
PHYSICAL
Protection Degree	IP20
Dimension (W/H/D)	330/485/135mm
Net Weight	11.5kgs
OPERATING ENVIRONMENT
Humidity	5% to 95% Relative Humidity(Non-condensing)
Altitude	<2000m
Operating Temperature	0°C - 55°C
Storage Temperature	-15°C - 60°C

Products SeriesOff Grid Inverter3KW/5KWSingle Phase 220-240V 50/60HzUp to 6 units in parallelOn Grid Inverter3-6KW2 MPPTs
Single Phase 220-240V 50/6HzOn Grid Inverter15-40KW3/4 MPPTs
Three Phase 380-415V 50/6HzOn Grid Inverter50-70KW3 MPPTs
Three Phase 380-415V 50/6HzOn Grid Inverter50-250KW6-10 MPPTs
Three Phase 380-415V/460-500V 50/6Hz
Projects Case
* Open station supports one-click installation and registration* Problem support one-click dispatch and navigation* Safe operation, traceable logs, etc* Support full lifecycle data storage to ensure data security and reliability.
