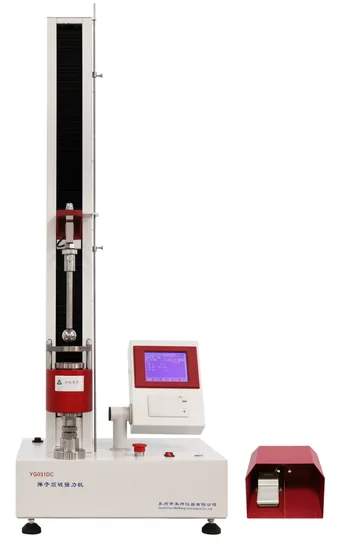

Pneumatics Servo Textile Bursting Strength Bullet Breaking Machine Price Yg031DC

Product Description

Pneumatics Servo Textile Bursting Strength Bullet breaking machine YG031DC
Application
It is used to test the bursting strength and expansion of steel balls for cotton fabrics, elastic fabrics, socks and gloves.
Standards
GB/T 19976 FZ/T 01030,FZ/T 60019,ASTM D 3787,ASTM D 6796
Features
1. Touch screen control, Chinese and English menu, man-machine dialogue mode, easy to operate.
2. Built in thermal printer, easy to quickly print test results on site.
3. The professional computer analysis software can realize two-way operation with the computer, and can carry out report statistics, curve intuitive analysis, etc.; the software is an open software, which can edit the required test program according to its own needs, and can support remote upgrade and maintenance of the instrument.
4. The transmission system adopts AC servo drive system, synchronous pulley and precision screw assembly; the beam of the instrument moves smoothly with low noise and high elongation accuracy.
5. The column is treated by high temperature curing and plastic spraying, which is scratch resistant and not easy to fade.
6. A variety of protection measures are adopted: upper and lower limit protection device of beam; anti-collision protection device of fixture; overload protection of sensor; over-current and over-voltage protection; software protection of displacement and load limit can be set; real-time monitoring of main components and display of fault information are carried out; therefore, the instrument is more safe and reliable.
7. It provides a variety of humanized automatic modes, digital setting of clamping distance and automatic positioning.
8. Instrument control mode: host touch screen control and desktop computer control.
9.Pneumatic fixture, easy to operate.
Specification
1. Range: 1000N, 2500n, 5000n (optional)
2. Measuring range: 1% - 100% of full scale
3. Force measurement accuracy: ≤± 0.2% f · s
4. Acquisition frequency: 2000 times / S
5. Division value: 0.1N (1000N range, according to the range
6. Unit: CN, N, kn, GF, KGF, LBF
7. Displacement speed: 0.1 ~ 500mm / min, digital speed regulation, error ≤± 1%
8. Displacement resolution: 0.01mm
9. Drop range: 120mm
10. Fixture diameter: 45mm (optional φ 25mm)
11. Diameter of breakthrough bullet: 25mm and 38mm (optional φ 20mm)
12. Sample clamping: manual clamping
13. Overall dimension: 540 × 370 × 1500mm
14. Weight: 70kg
15. Power supply: AC220 V, 50 Hz, 500 W
